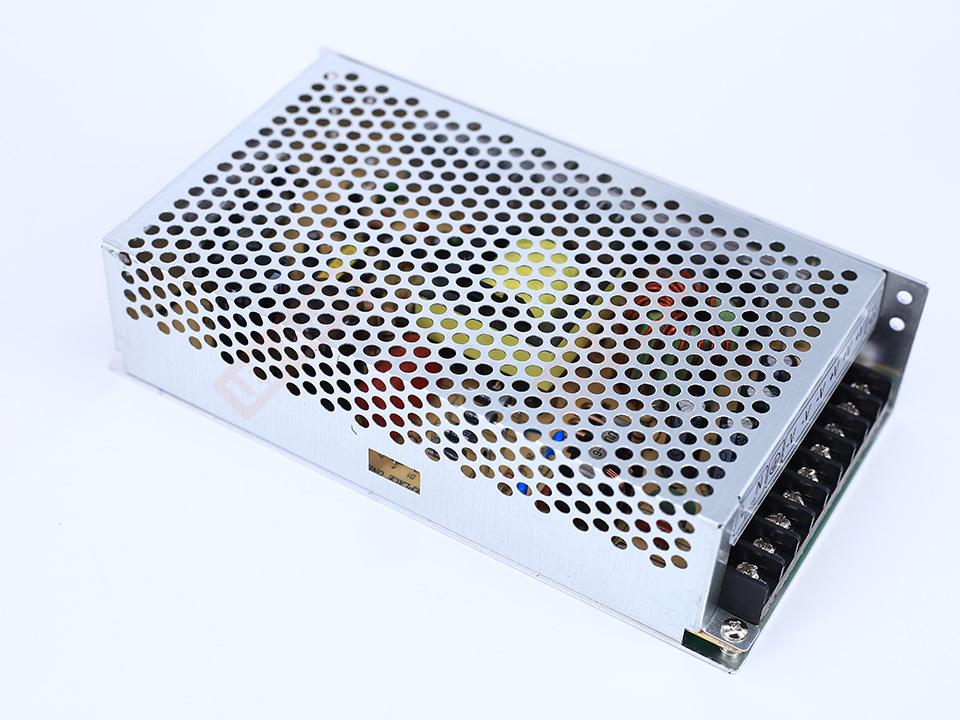

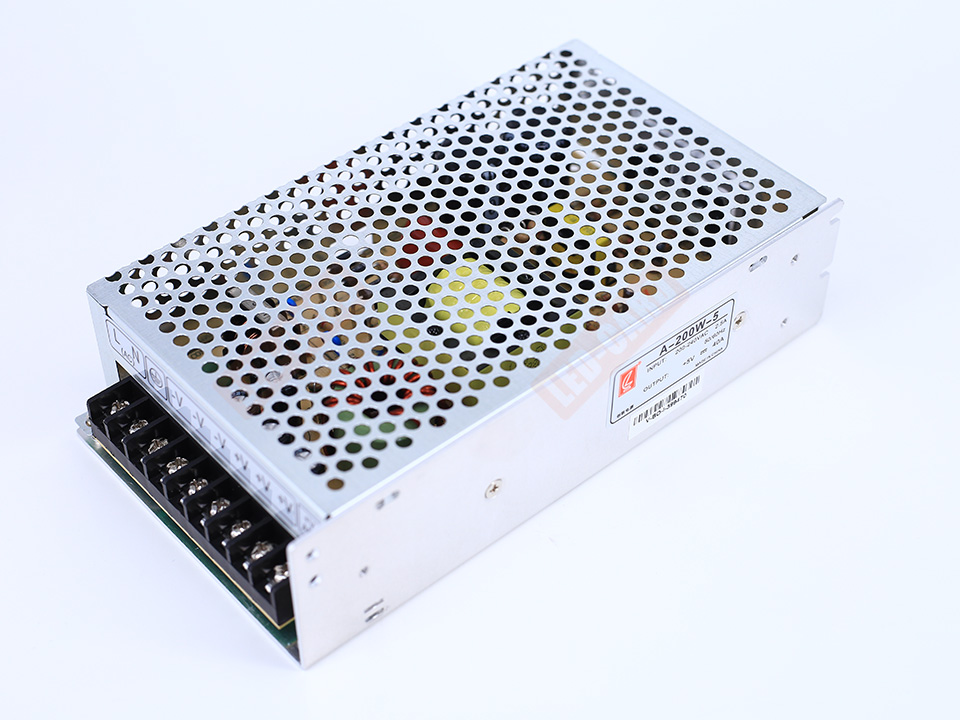

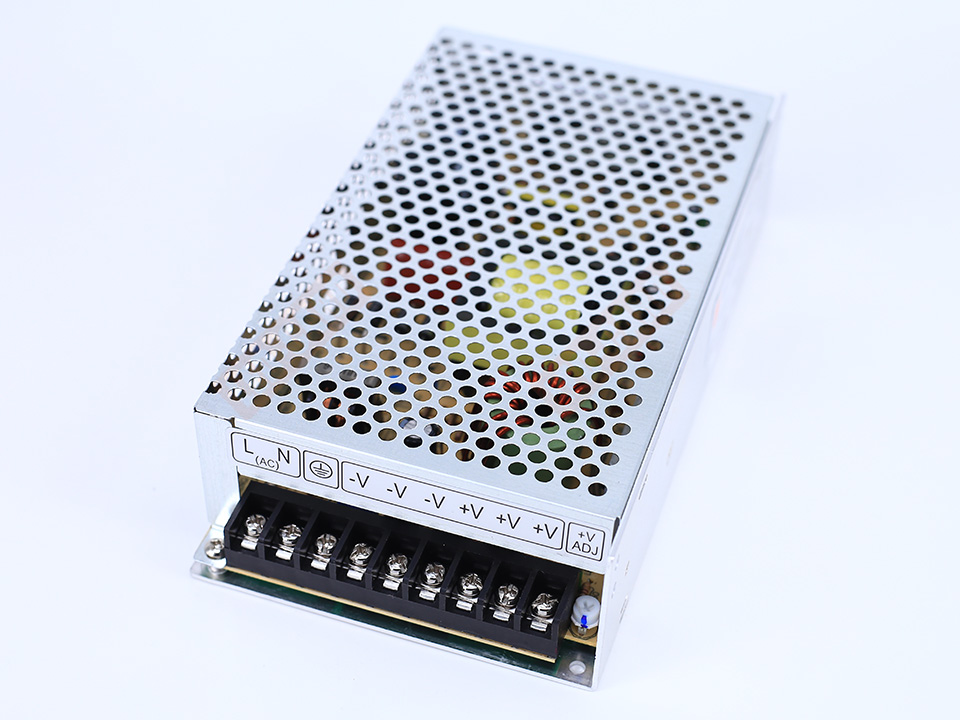

CZCL 5V 40A 200W Switching Power source (A-200W-5)
LED-CARD
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Low cost high reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
1 year warranty
CASE:808; Size:199×110×50mm
$21.00 $19.00
574 in stock
Description
CZCL 5V 40A 200W Switching Power source (A-200W-5) Features :
Low cost high reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
1 year warranty
CASE:808; Size:199×110×50mm
AC input voltage range—————200-264VAC
Input frequency———————-47-63Hz
AC inrush current———————Cold start 30A/230VAC
DC adjustment range—————–±10% rated output voltage
Line regulation full load ————≤0.5%
Output over load protection———-110%-150% shut off, AC recycle to re-start
Rise hold up time——————50mS Œ20mS at full load typical ‰
Withstand voltage——————I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min
Working temperature—————10~+40 @ 100% +60 @ 60% load
Storage temperature————- -20 ~+85 20%~95%RH(non condensing)
Safety standards——————Design refer to GB4943 UL60950-1,EN60950-1
EMC standards——————–Design refer to GB9254 EN55022 class A
Cooling method——————-Free air cooling convection
Additional information
| Weight | 0.75 kg |
|---|
