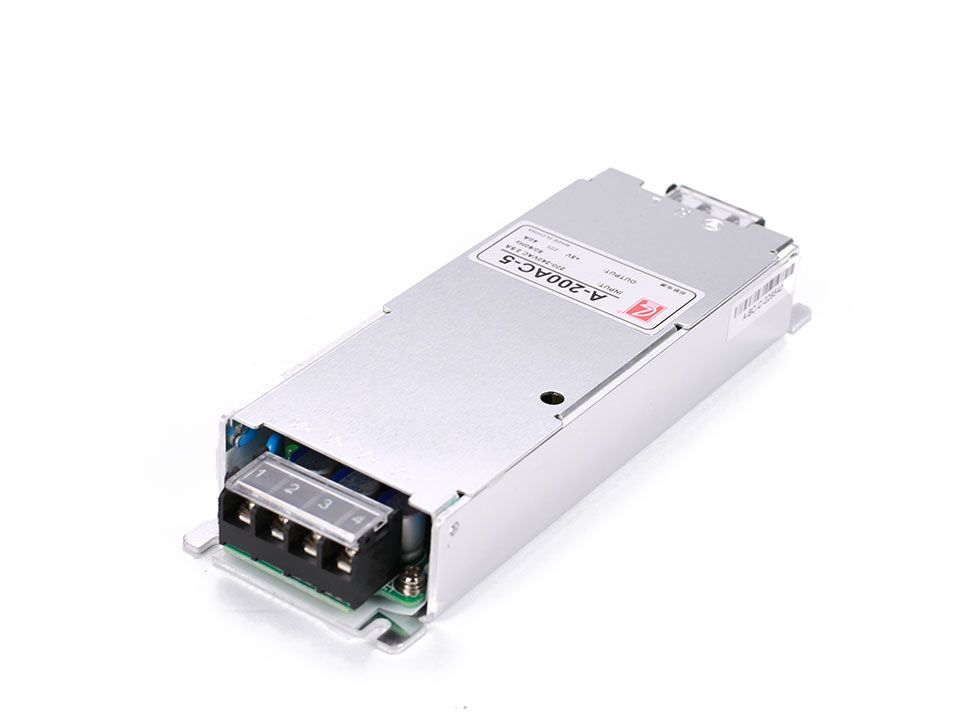

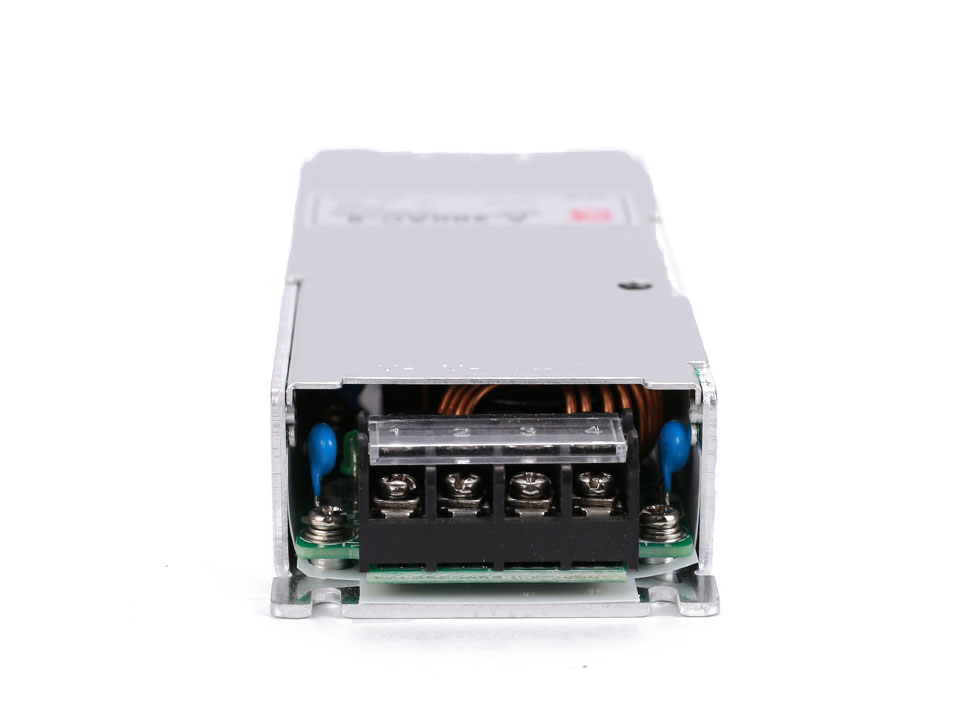

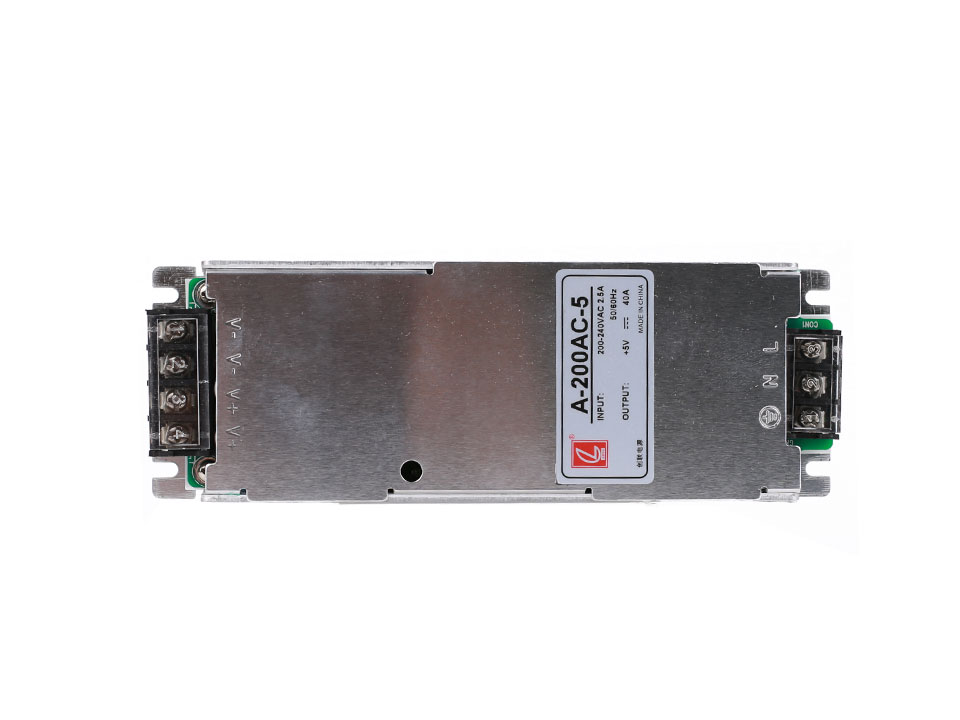

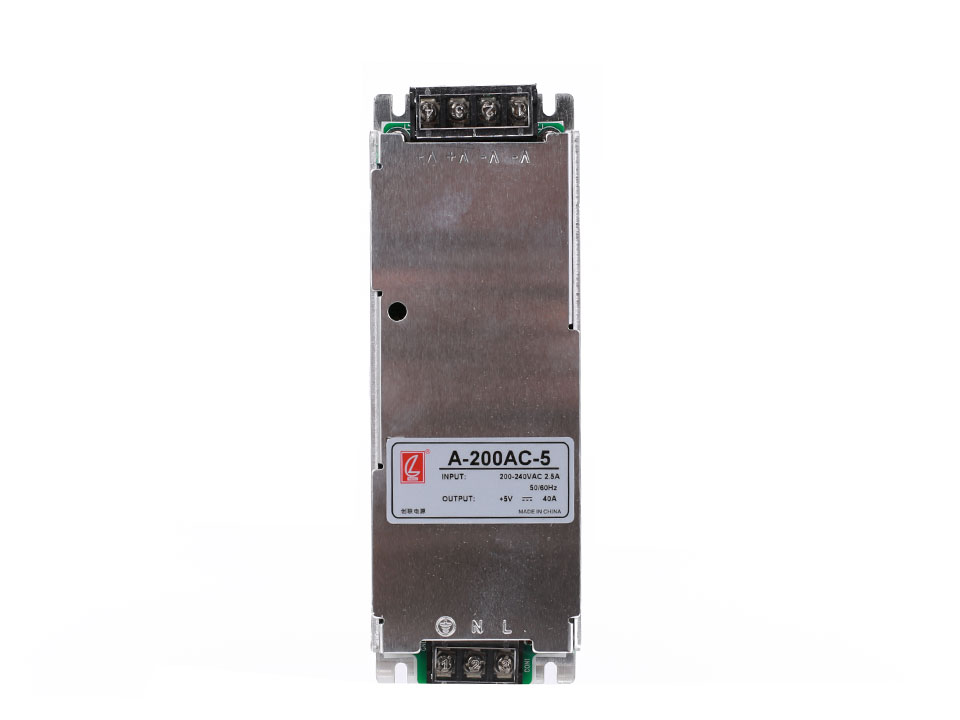

CZCL A-200AC-5 LED Switching Power

LED-CARD
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

180-264VAC input power , with 5V 40A 200W output.
Very 26mm ultrathin size.

$12.50

Description

A-200AC-5 product is a 200W fanless LED display driver power supply, with an input voltage range of 180-264VAC and an output voltage of 5V. It can be used in various LED display fields such as LED displays and LED indicator lights. This series of products is ultra-thin in design, with a height of only 26mm, and can adapt to various box size requirements. The ultra-high efficiency, compact shell design, and good heat dissipation ensure that this series of products can work stably for a long time.

Output:
Power: 5V 40A 300W
Voltage Tolerance: ±1%
Setup, Rise Time: 3000ms,50ms/230VAC at Full load

Input:
Voltage Range: 180-264VAC
Frequency: 47-63HZ
Efficiency: 88%

Over load: 120-150% rated output power
Working Temp: -40 to +70 degree
Working Humidity: 10-95% RH non-condensing

Size: 165*56*26mm
Weight: 0.3KG

Additional information

Weight 0.3 kg
Dimensions 17 × 6 × 3 cm
