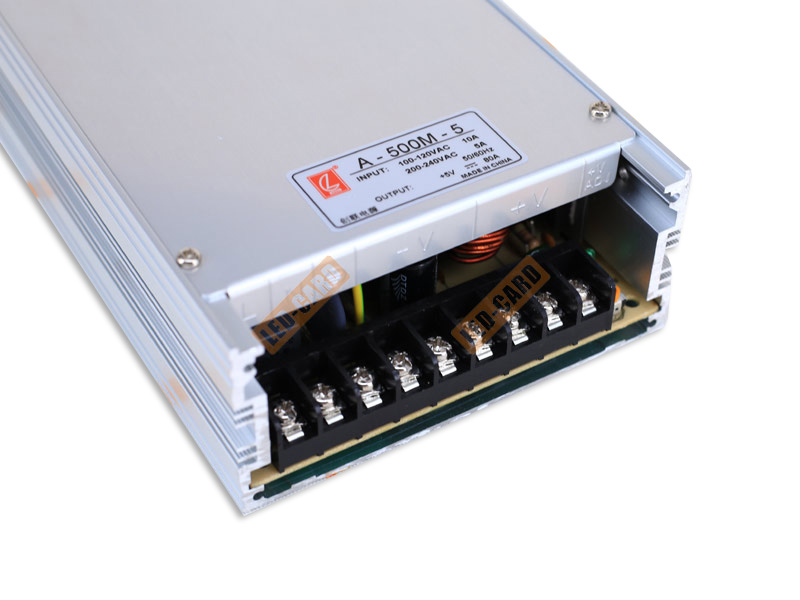

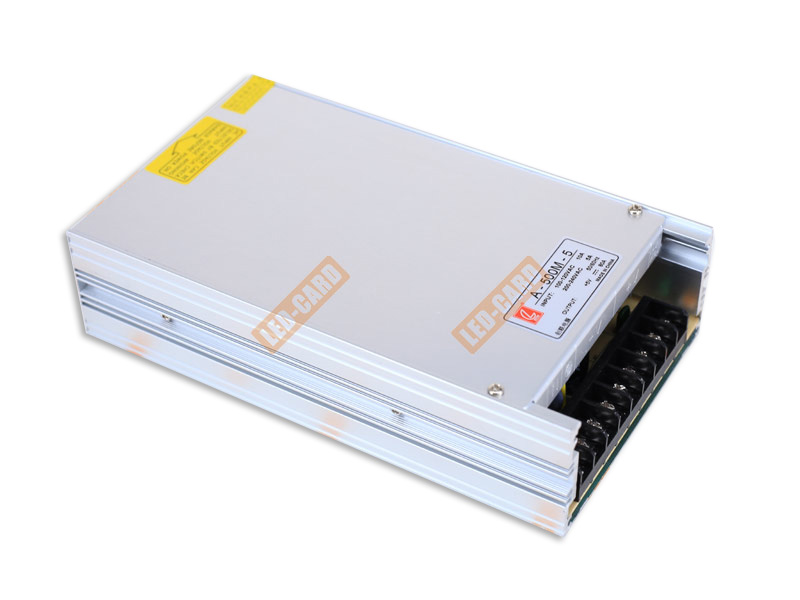

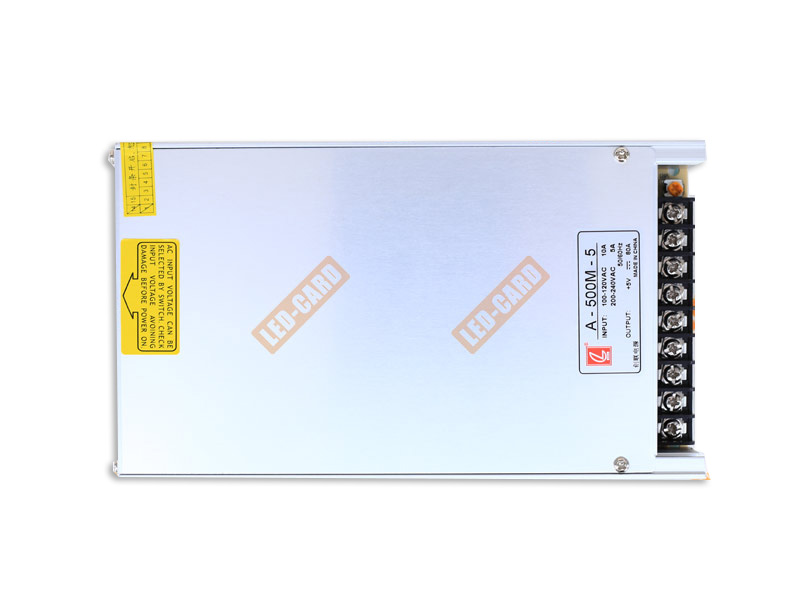

CZCL A-500M-5 Switching Power source
LED-CARD
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Low cost-high reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
Forced air cooling by Built-in DC fan
1 year warranty
CASE:812; Size:205×114×50mm
$35.00
1224 in stock
Description
CZCL A-500M-5 Switching Power source
Low cost-high reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit

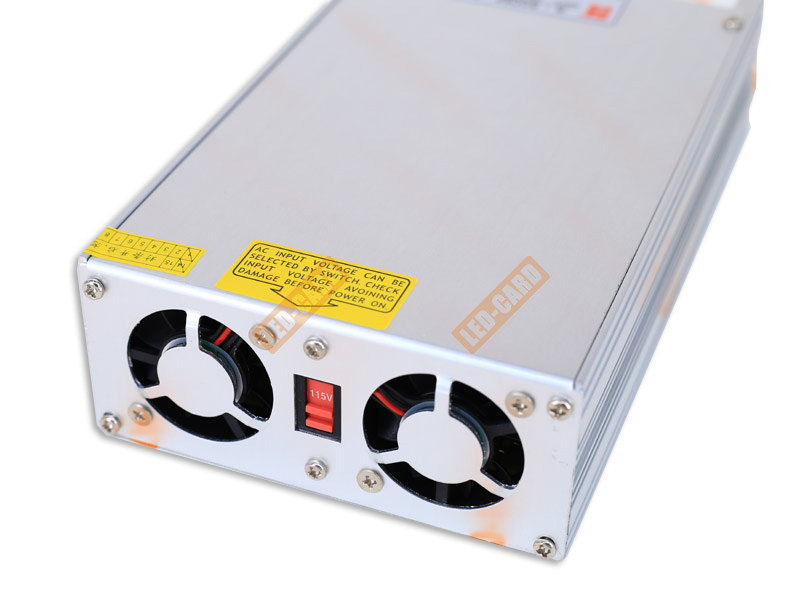

Forced air cooling by Built-in DC fan
1 year warranty
CASE:812; Size:205×114×50mm
AC input voltage range————-176~264VAC/47~63HZ
Input frequency——————–47-63Hz
AC inrush current——————-Cold start 40A/230VAC
DC adjustment range—————-±10% rated output voltage
Line regulation（full load）———–≤0.5%
Output over load protection———110%-150% shut off, AC recycle to re-start
Rise hold up time——————-50mS 20mS at full load（typical）
Withstand voltage——————-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min
Working temperature——————10~+40C@ 100% +60C@ 60% load
Storage temperature—————- -20C~+85C 20%~95%RH(non condensing)
Safety standards———————Design refer to GB4943 UL60950-1,EN60950-1
EMC standards—————— —–Design refer to GB9254 EN55022 class A
Cooling method———————– Forced air cooling by Built-in DC fan
Additional information
| Weight | 1.1 kg |
|---|
