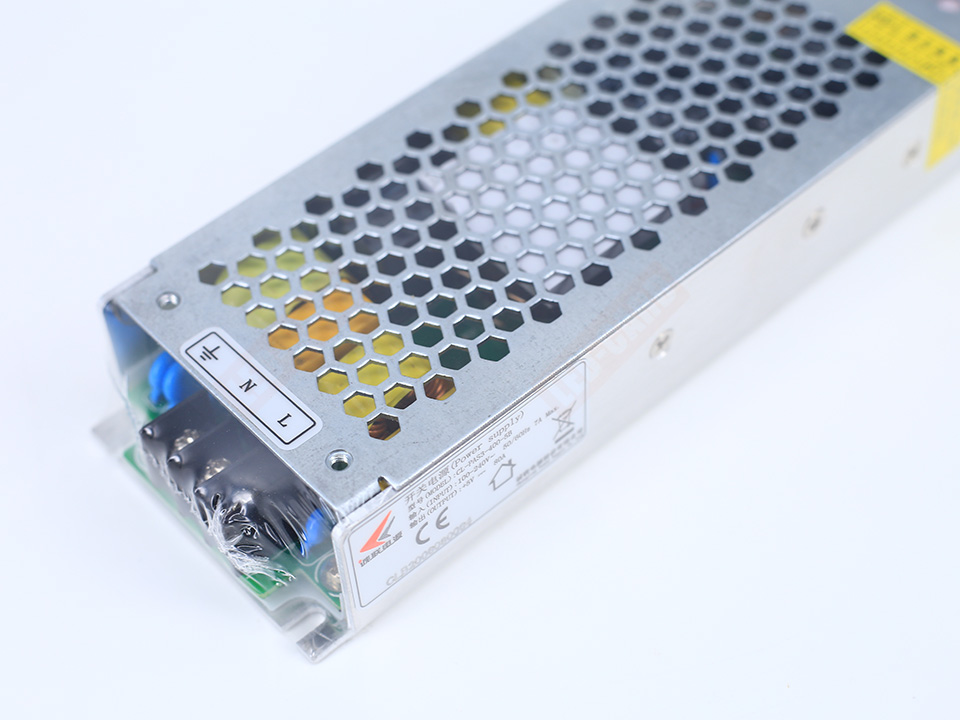

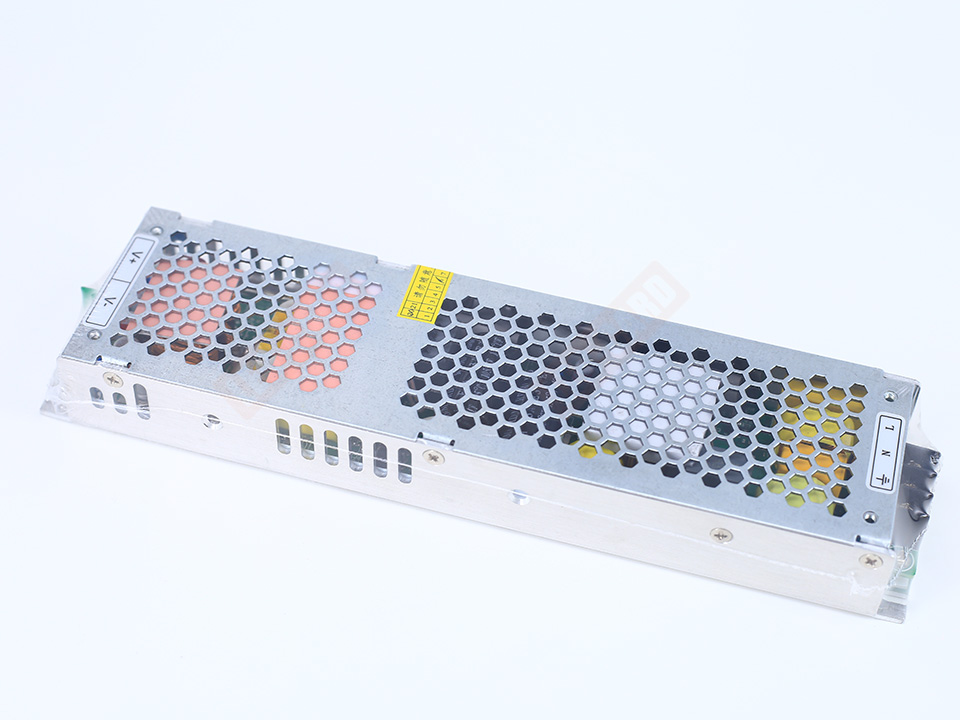

CL-PAS3-400-5B Power supply

Beschreibung

Model NO: CL-PAS3-400-5
Input Voltage Range: 90～264Vac
Input Frequency Range: 47～63HZ(Typ 50/60)
Max AC Current: <7.0A, 100Vac, full load
Inrush current: ≤90A, 240V, Full load, 25℃
PF >0.92(AC100~240Vac, full load)
Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)
Drive Mode: CV
Output Voltage: 5V±2%
Output Current: 0-80A
Ripple&Noise: ≤300mV
Full Load Efficiency: 115V/84.0% or 230V/87.0%
Safety Standards:UL60950, IEC/EN60950, GB4943.1-2011
Working Temperature:‘-30℃ ～ +65℃(-40℃ can switch on)
Working Humidity:5%～90%RH
Storage temperature: -40℃～+80℃
Dimension (L*W*H): 252*64*30mm
