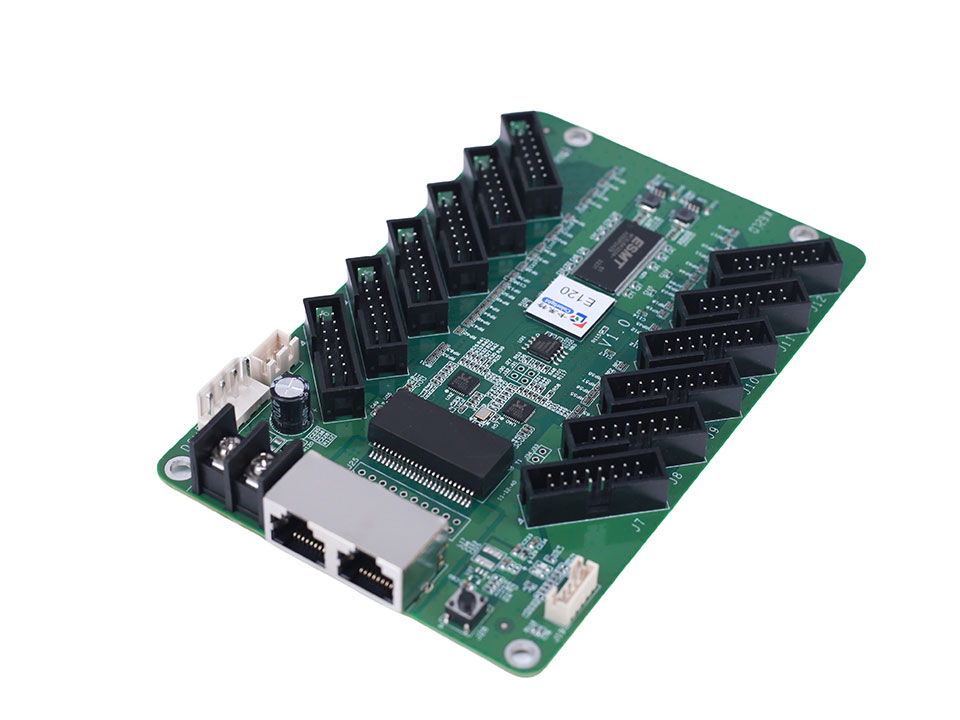

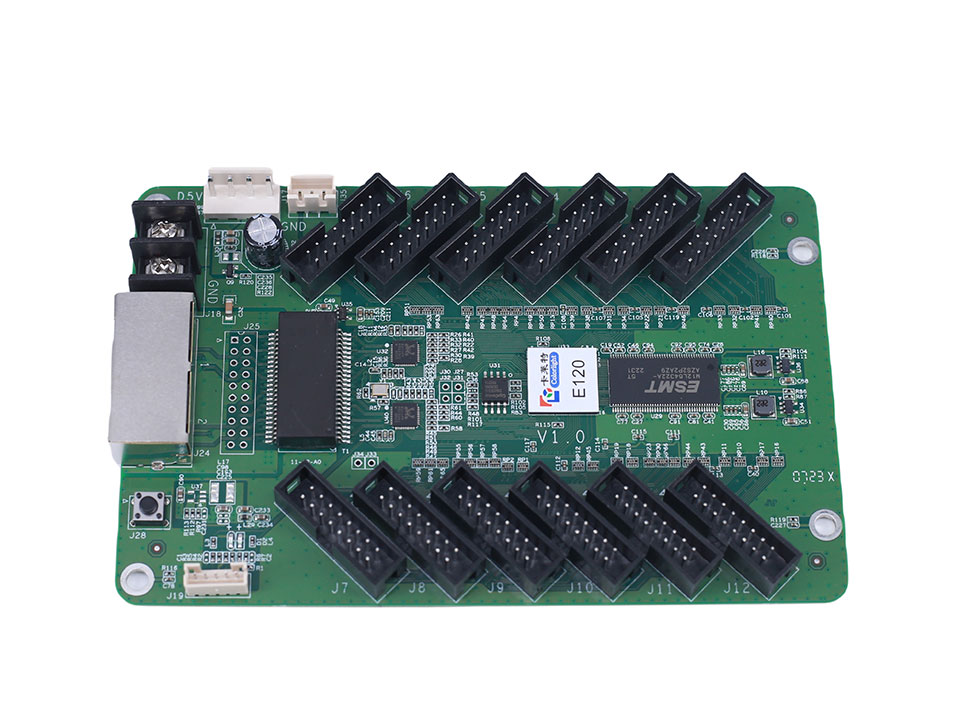

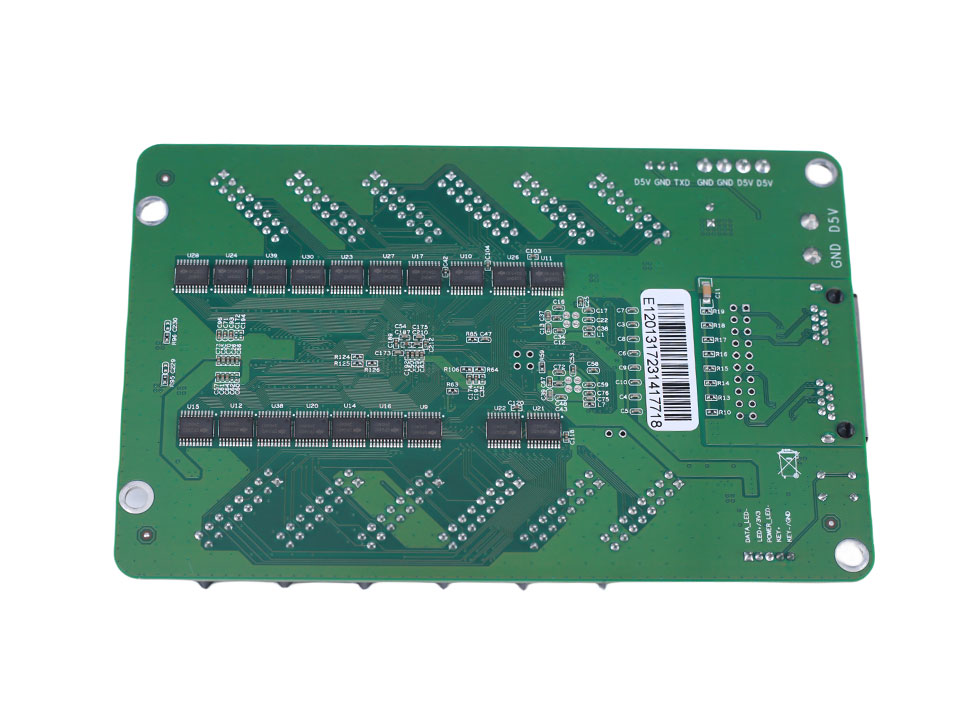

Colorlight E120 Receiver Card

Beschreibung

The Colorlight E120 receiving card is an innovative and cost-effective solution designed with the customer in mind. It packs powerful technology into a single package, providing up to 192×1024 pixels of resolution as well as 24 groups of parallel data or 32 groups of serial data. Moreover, it provides reliable performance thanks to its HUB75 interfaces integration capabilities – all while doing so at economical rates without compromising on quality.

• Control System Parameters: Compatible with Normal chips (128X 1024pixels), PWM chips (192X1024 pixels), and Shixinchips (162X 1024 pixels). Exchange Supported on Ethernet Port, arbitrary use.
• Display Module Compatibility: Supports Normal chips, PWM chips, and Shixin chi up to 1/128 scale of any row and column within 13312 pixels; Route from left to right, from right to left, from top to bottom, from bottom to top.
• Data Group: 24 groups of parallel RGB full color data and 32 groups of serial RGB data can be expanded to 128 groups of serial data; Data groups can be exchanged freely.
• Data Folded: Normal chips folded 2-8 fold horizontally/2-4 fold vertically; PWM and Shixin chips folded 2-8 fold either horizontally or vertically.
• Pumping Pol: Any pumping point and any pumping row/column.
• Monitoring Function: Monitor total number of data packets and error packets to check network quality.
