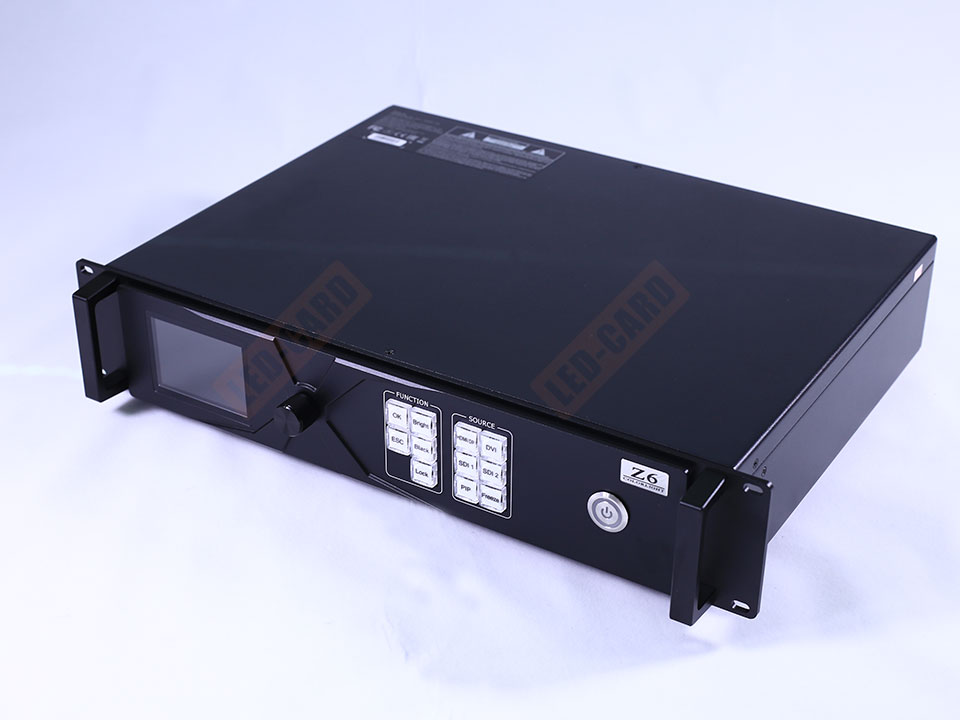

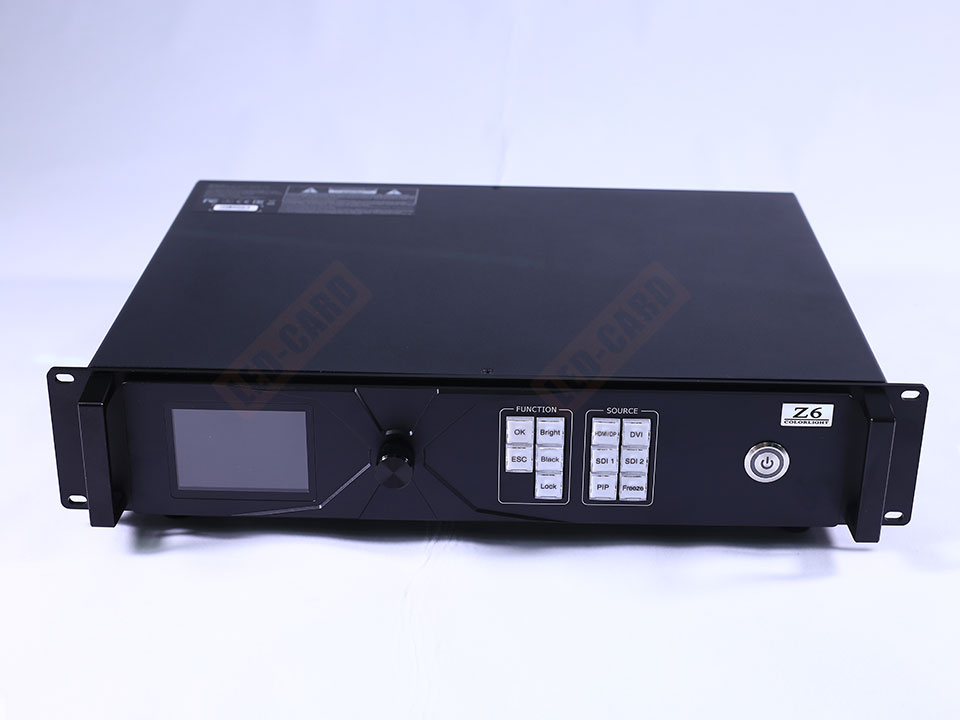

Colorlight Z6 LED Super Controller
Video input ports including SDI×2, HDMI2.0×1, DVI×4;
Supports input resolution up to 3840×2160@60Hz;
Loading capacity: 8.3 million pixels, maximum width: 8192 pixels,maximum height:4096 pixels;
Supports HDR；
Supports 8,10 and 12 bits;
Low latency;
The input images can be spliced and scaled according to the screen resolution;
Supports three PIPs, the location and size can be adjusted freely;
Supports splicing and cascading among several controllers with synchronization strictly;
Supports brightness and color temperature adjustment;
Supports better gray at low brightness;
Supports HDCP2.2；
Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.

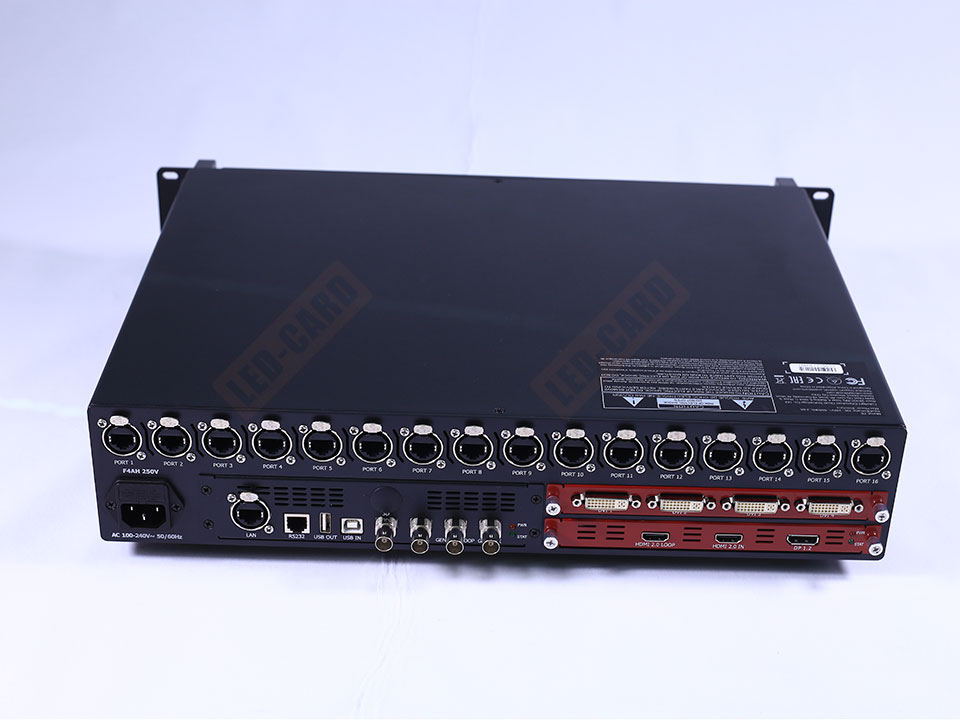

100M Ethernet:100M-Ethernet Control port (communication with PC, or access network), and can be used as Artnet control port
USB_OUT:USB output, cascading with next controller
USB_IN:USB input, which connect with PC to configure parameters
GENLOCK:Genlock signal input ensures synchronism of display image
GENLOCK_LOOP:Genlock synchronous signal loop output
RS232:RJ11（6P6C）*，used to communicate via 3rd party interfaces

Input Interface
SDI:2*3G-SDI inputs
HDMI:HDMI2.0 input + LOOP
DP:1+DP 1.2
DVI:4*DVI inputs
Output Interface
16 Neutrik Gigabit Ethernet ports

Size:2U standard box
Input Voltage:AC 100~240V
Rated Power Consumption:70W
Working temperature:-20~60℃
Weight:9kg
