Linsn RV907H Hehler Karte
LINSN
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Compatible with RV801, has all the features of RV801
Small size (479mm X 1365mm), mounting holes are same with RV802
Four output interfaces can directly drive module (save hub card)
$29.00 $27.00
840 vorrätig
Beschreibung

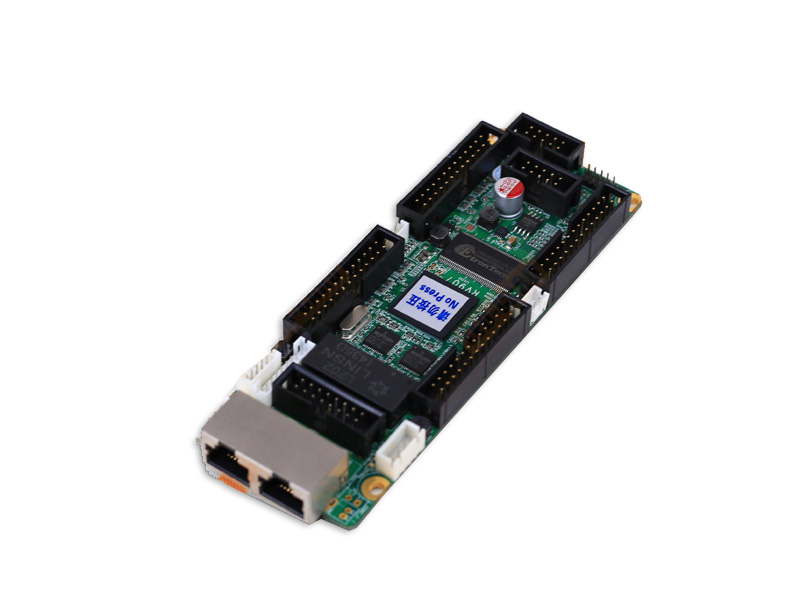

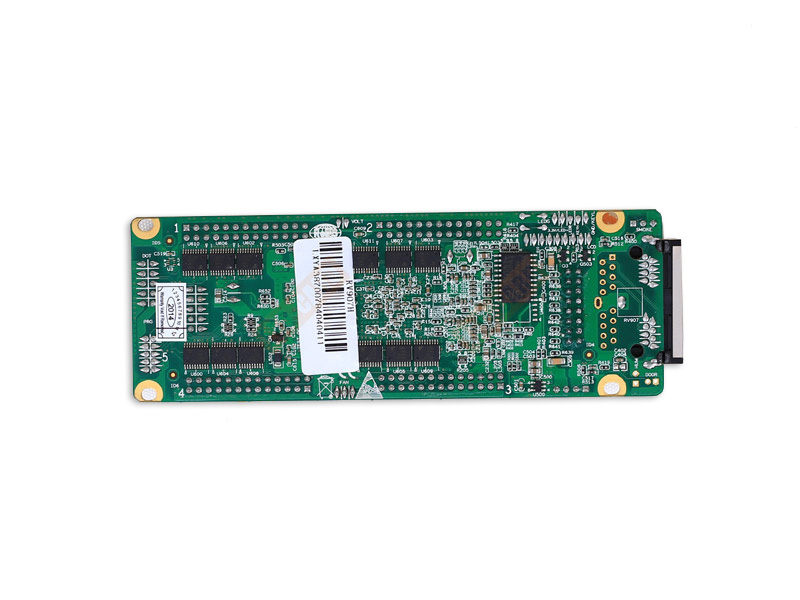

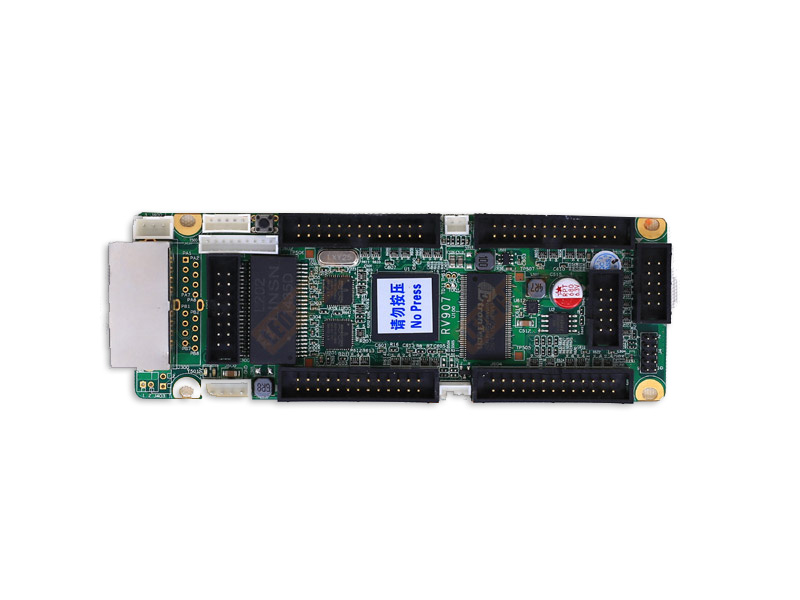

Linsn RV907H receiver card
Compatible with RV801, has all the features of RV801
Small size (479mm X 1365mm), mounting holes are same with RV802
Four output interfaces can directly drive module (save hub card)
Each of the 4 interfaces has up to 6 groups parallel-data; total 24 groups of parallel data interface to achieve higher refresh rate
Provide a 90 degree 26-Pin interface, convenient PCB docking design
Provide 16 groups serial-data for led lighting and led curtain
Each interface has VCC pin to get power supply for control system from led module. No need to get extra power supply for control system.
support 12-bit HDMI colors input (required the 9th generation sending card)
using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
Supports single-card color space conversion
Support configuration file readback
More Detail: Linsn RV907 Receiver Card (PDF)
Zusätzliche Information
| Gewicht | 0.3 kg |
|---|
