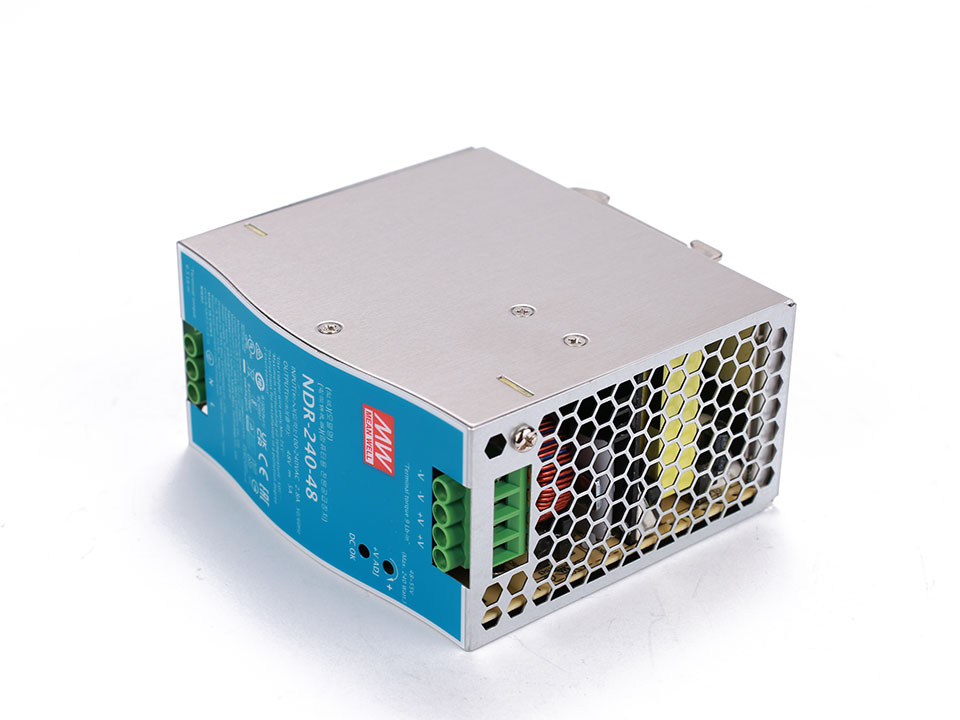

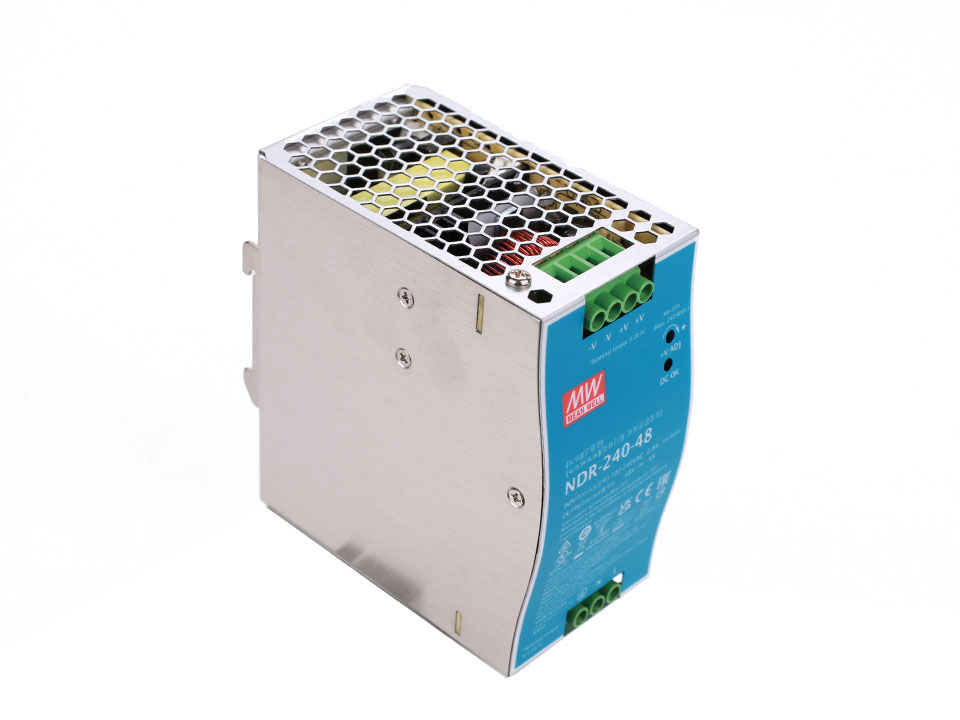

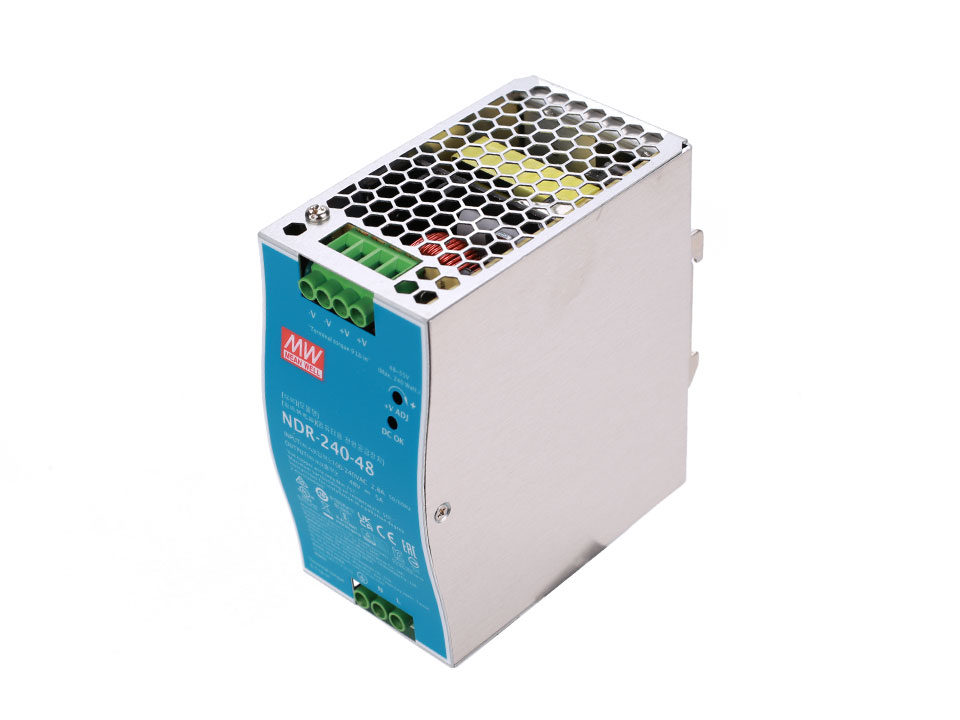

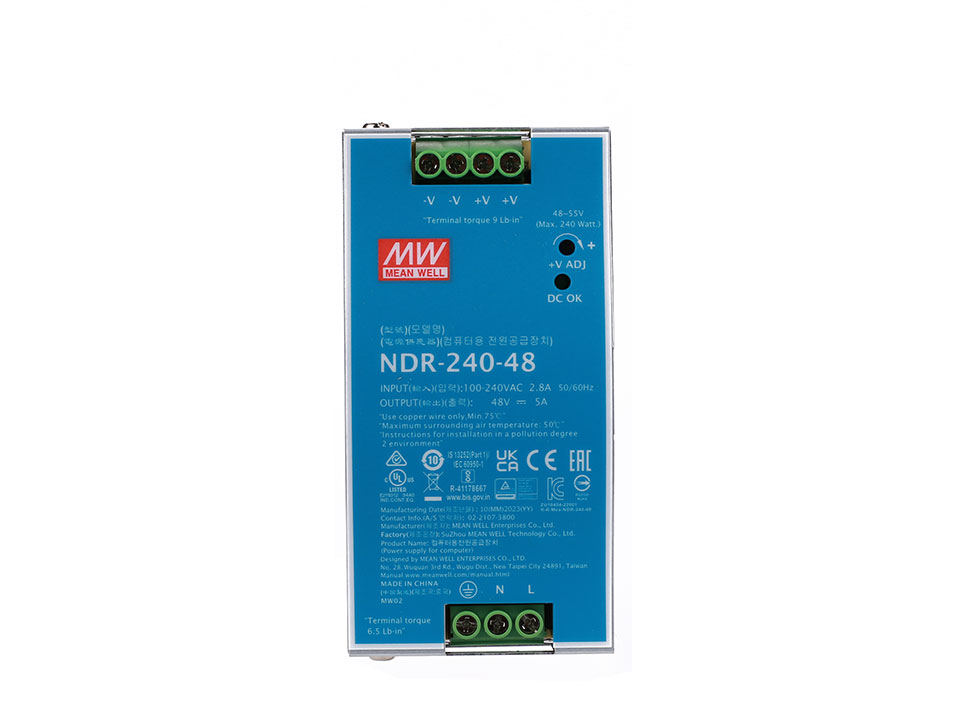

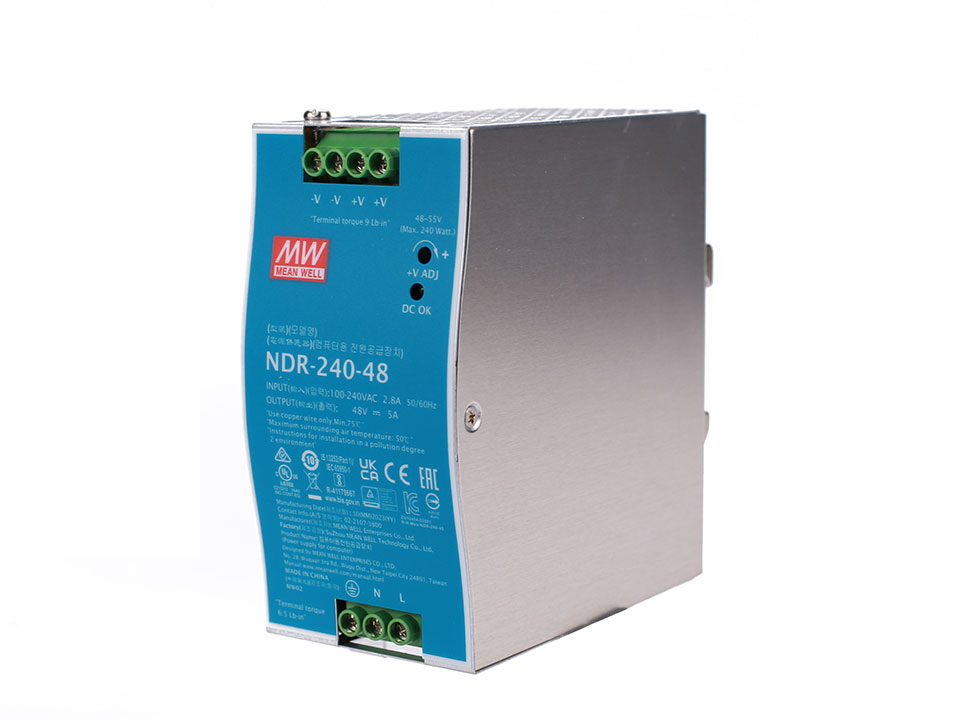

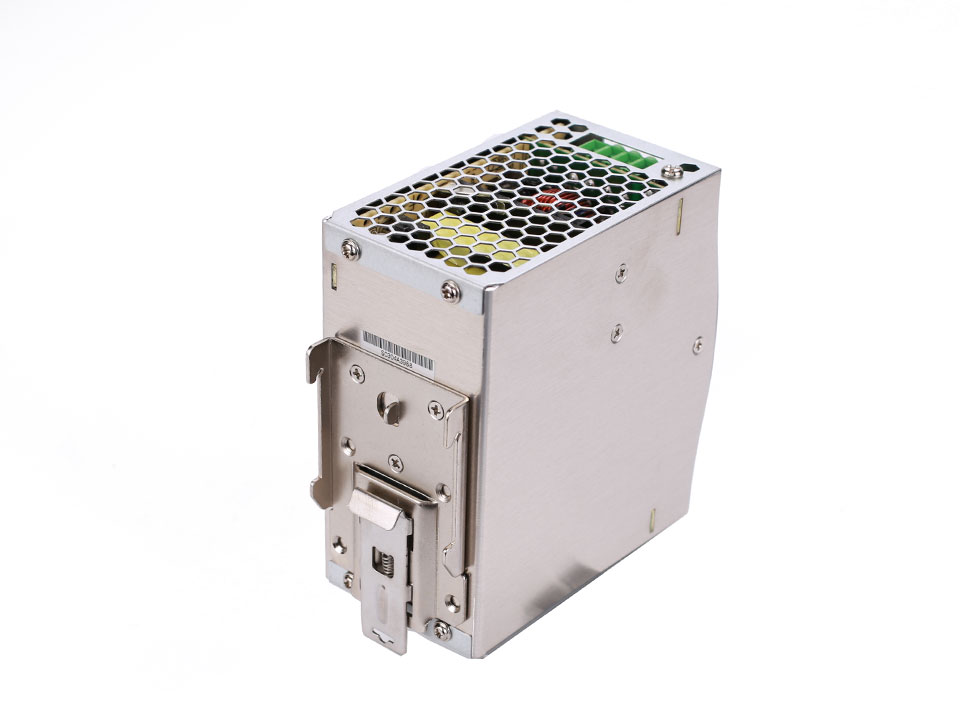

Meanwell NDR-240-48 Rail Power Supply
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
NDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/1 5 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets.
$42.00
Beschreibung
.Universal AC input/ Full range
.Built-in active PFC function
.Protections: Short circuit/ Overload/ Over voltage / Over temperature
.Cooling by free air convection

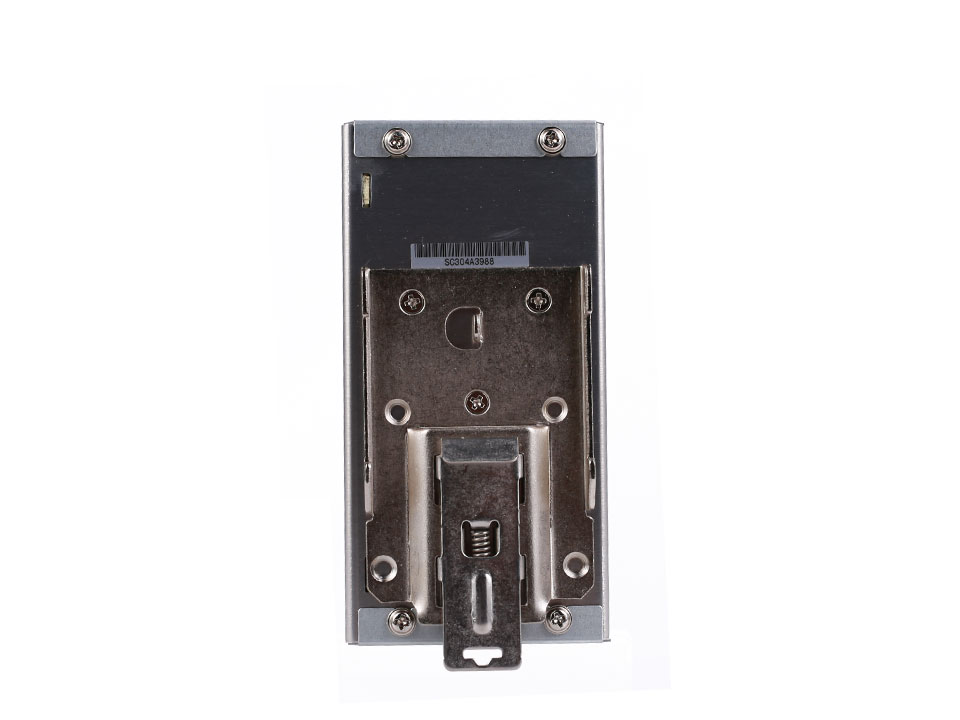

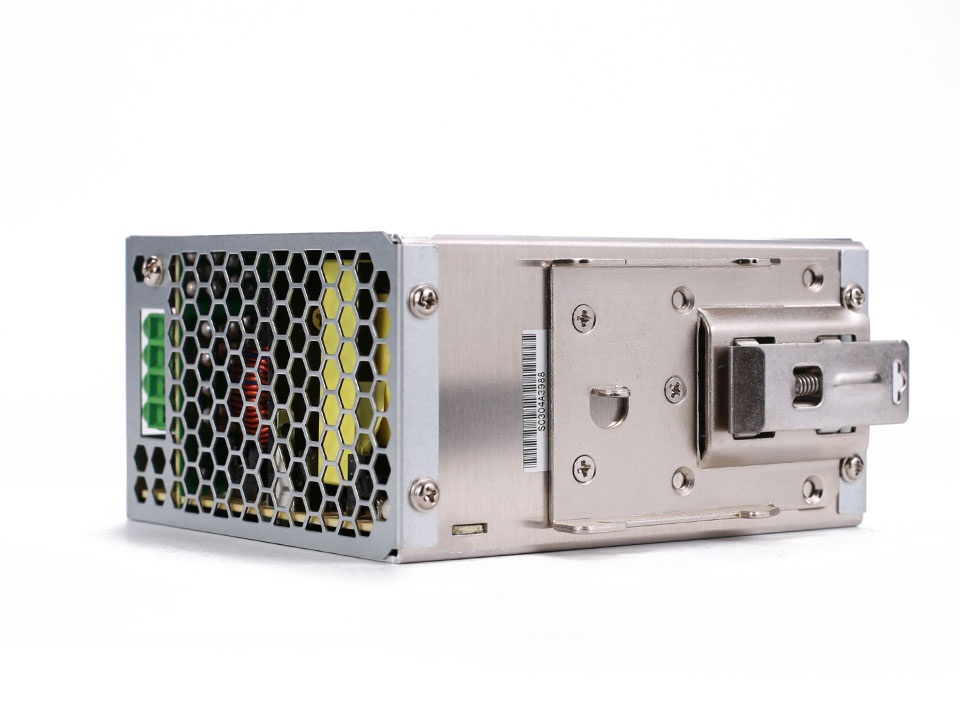

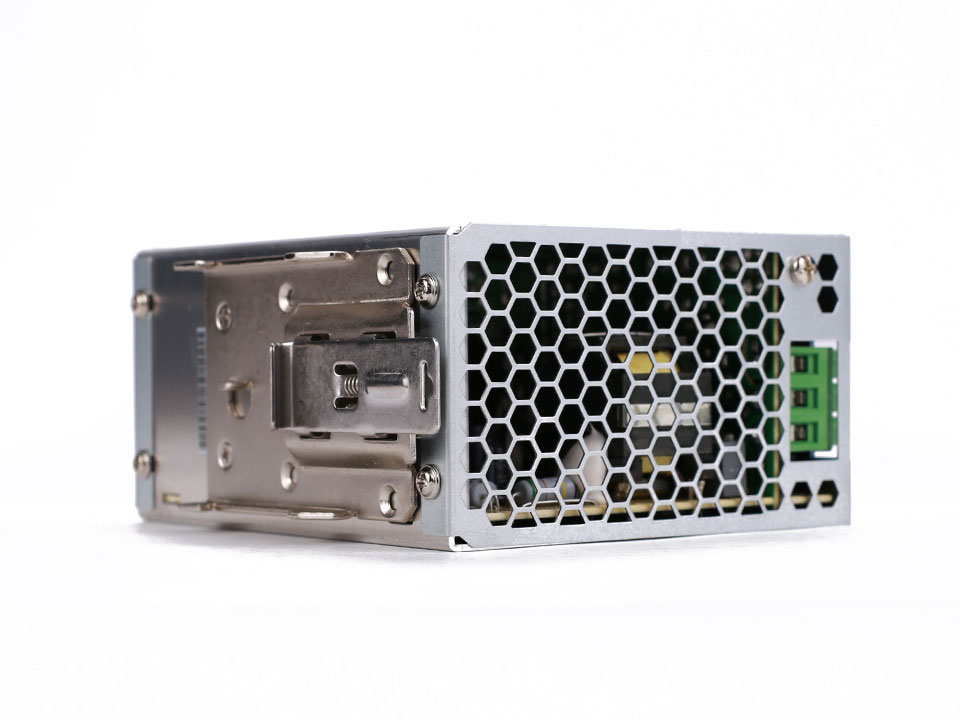

.Can be installed on DIN rail TS-35/7.5or 15
.UL 508 (industrial control equipment) approved
.BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
.100% full load burn-in test
.3 years warranty
Output:
Power: 48V 5A 240W
Voltage Tolerance: ±1%
Setup, Rise Time: 1500ms,100ms/230VAC 3000MS,100ms/115VAC at Full load
Input:
Voltage Range: 90-264VAC / 127-370VDC
Frequency: 47-63HZ
Efficiency: 90%
Over load: 105-130% rated output power
Over Voltage: 56-65V
Working Temp: -20 to +70 degree
Working Humidity: 20-95% RH non-condensing
Authentication: KC RRA UL BSMI EAC BIS CB TUV EMC CE UK
Size: 63*125.2*113.5mm
Weight: 1KG
More Detail: Meanwell NDR-240-48
