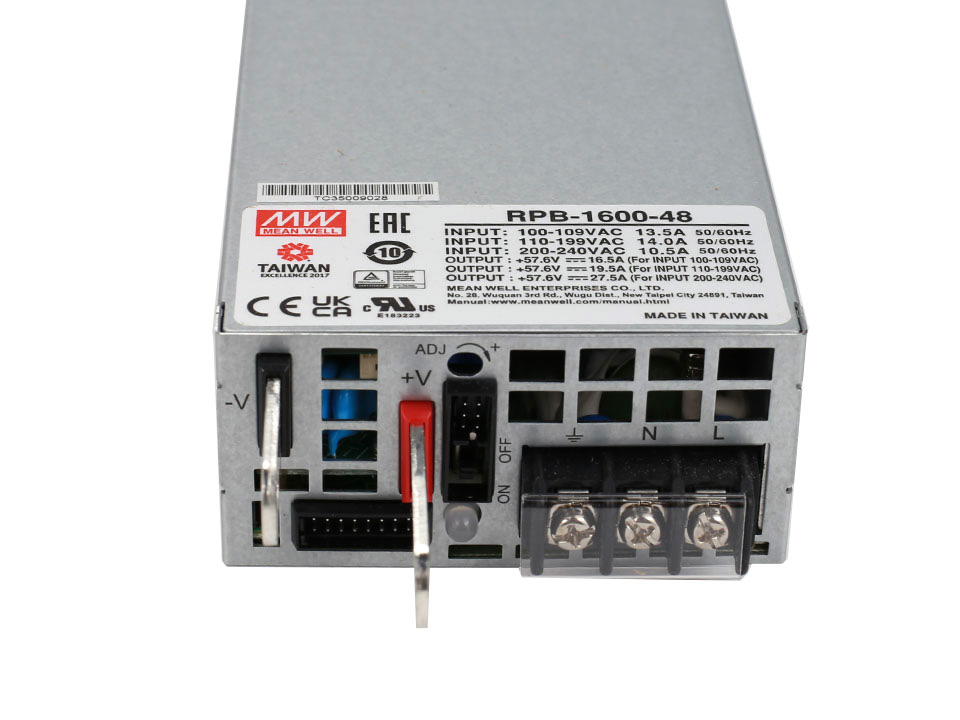

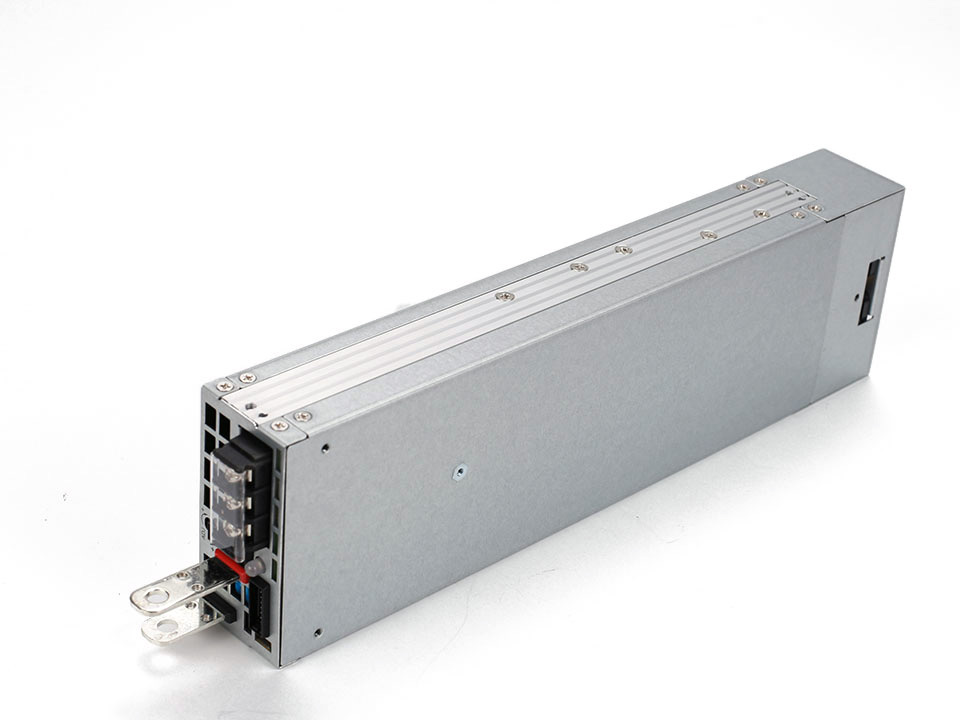

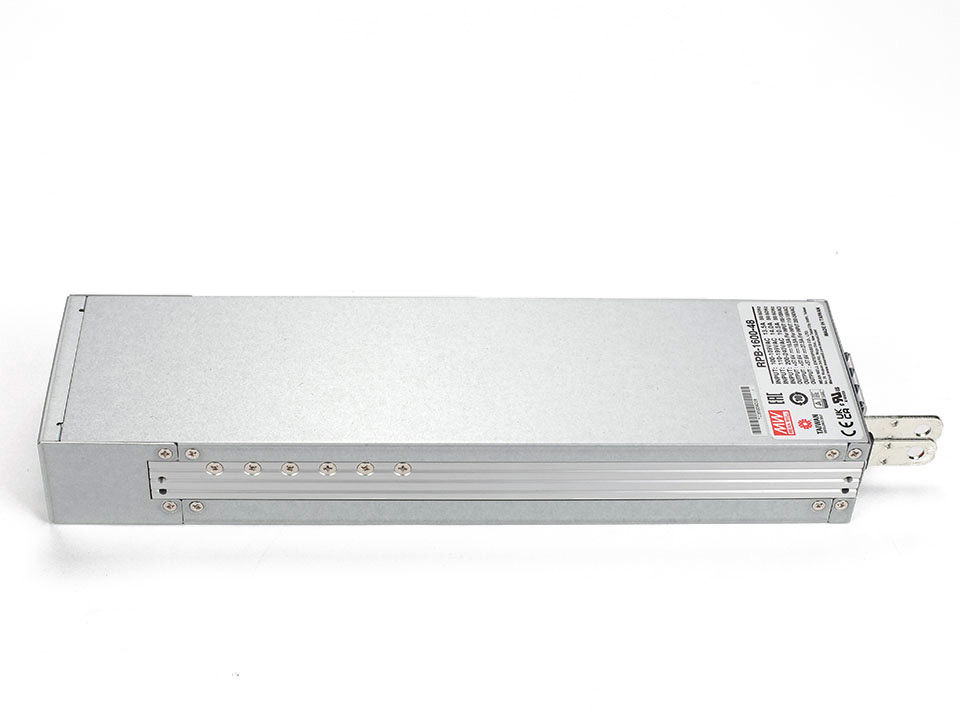

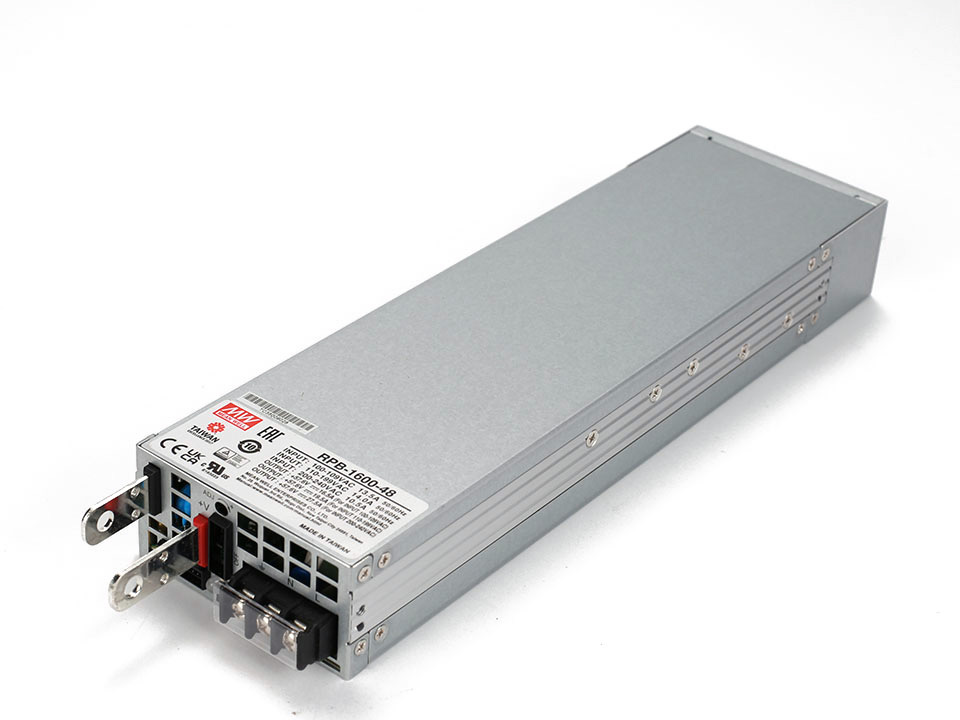

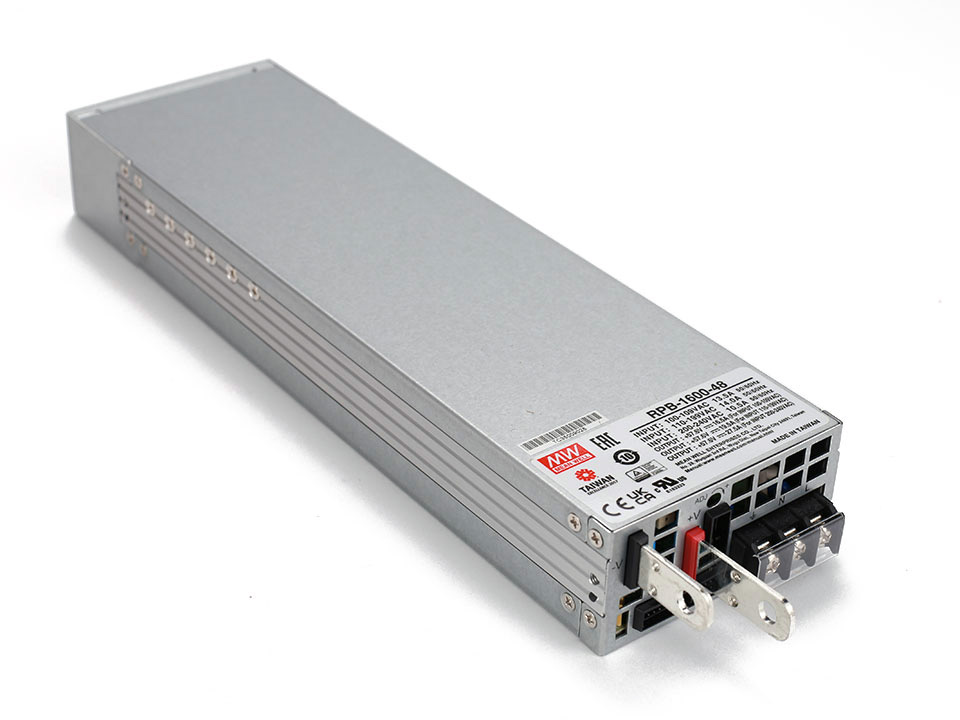

Meanwell RPB-1600-48 Power

Beschreibung

●Charger for lead-acid batteries (Gel, flooded and AGM) and Lion batteries (lithium iron and lithium manganese) Built-in default 3 stage charging curves and programmable curve
●Built-in IC interface, PMBus protocol (Optional CANBus protocol)
●Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
●Built-in active PFC function

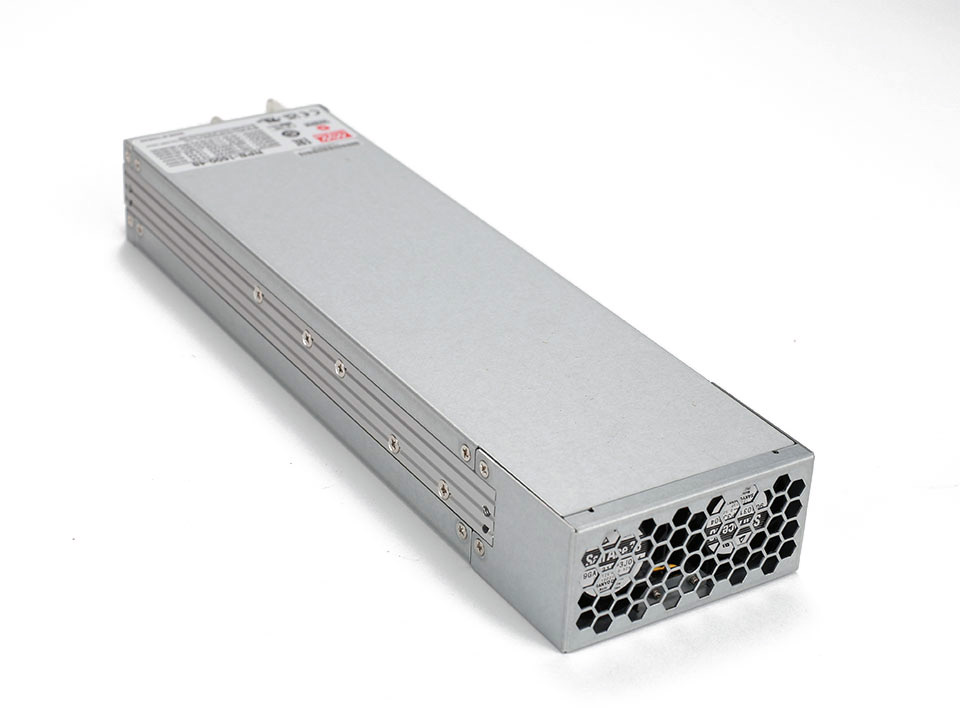

●Forced air cooling by built-in DC fan
●Output voltage and current programmable
●Built-in OR-ing FET
●Active current sharing up to 4800W(2+1)
●Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
●Optional conformal coating

Output:
Power: 48V 27.5A 1500W
Voltage Adj. Range: 47.5-58.8V
Recommended battery capacity: 90-270AH

Input:
Voltage Range: 90-264VAC / 250-370VDC
Frequency: 47-63HZ
Efficiency: 93.5%

Over load: 110-150% rated output power
Over Voltage: 63-75V
Working Temp: -30 to +70 degree
Working Humidity: 10-90% RH non-condensing

Authentication: BSMI BIS CCC UL TUV EAC CB EMC CE UK KC
Size: 300*85*41mm
Weight: 2.1KG
