P10 im freien Green Leuchtdiode Baugruppe
DIP LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Dot Pitch: 10mm
Pixel density: 10000/m2
Pixel Configuration: 1Green ( EPISTAR 8 Mil )
Module Dimension: 320mm(L)*160mm (H)
Module Resolution: 32pixel(L)* 16pixel(H)
Viewing Distance: 10~25M
$21.00
2347 vorrätig
Beschreibung

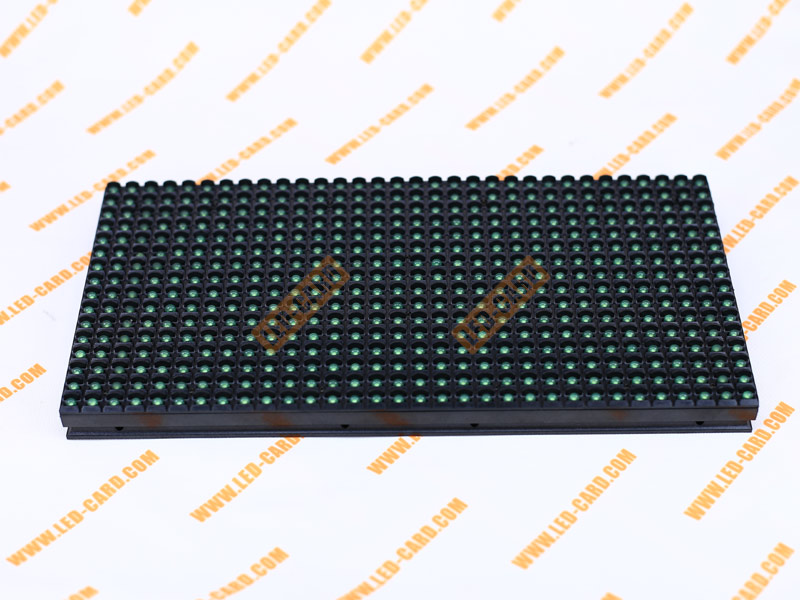

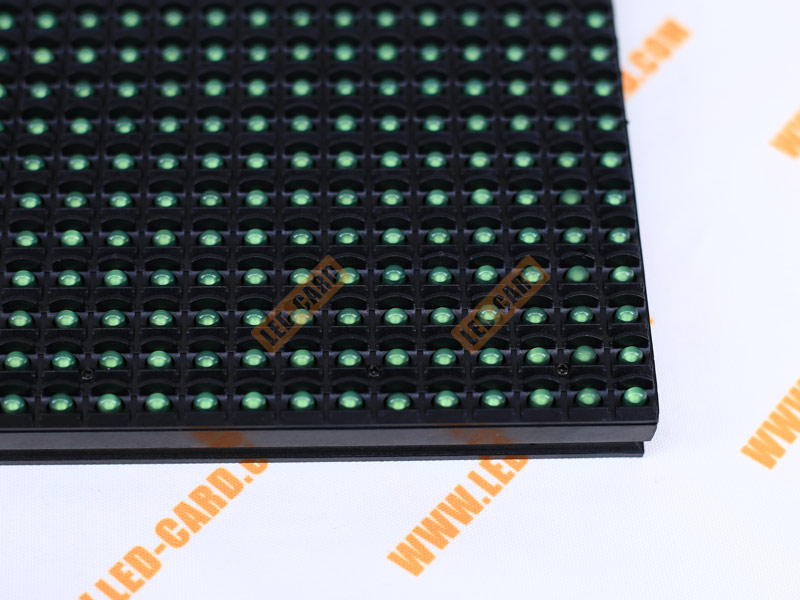

P10 outdoor green LED module
|
ITEM
|
technical parameter
|
|
Dot Pitch
|
10mm
|
|
Pixel density
|
10000/m2
|
|
Pixel Configuration
|
1Green ( EPISTAR 8 Mil )
|
|
Module Dimension
|
320mm(L)*160mm (H)
|
|
Module Resolution
|
32pixel(L)* 16pixel(H)
|
|
Viewing Distance
|
10~25M
|
|
Viewing angle-Horizontal
|
90°-120° degree
|
|
Viewing angle-Vertical
|
30°-60° degree
|
|
Operating temperature
|
-40°C—+85°C(for storage);-20°C—+50°C (for working)
|
|
Max-power consumption
|
≤300 W/m2
|
|
Max power per module
|
15W
|
|
Drive type
|
1/4 constant current
|
|
Video frame rate
|
>=60(FPS)
|
|
Refresh rate
|
>=180 FPS
|
|
LED encapsulation type
|
346 DIP Style LED
|
|
|
|
|
Green wavelength(dominant)
|
525 nm (+2.5nm/-2.5nm)
|
|
|
|
|
Brightness adjusted by
|
Software (0-100levels adjustable)
|
|
Malfunction dot rate (the radio of out of control of all screen)
|
< 0.0002
|
|
Brightness
|
≥2000 cd/m2
|
|
Life-span
|
100000 hours
|
|
MTTF
|
>=4500 hours
|
|
Humidity
|
10%-99%
|
You'd better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can't work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
Zusätzliche Information
| Gewicht | 0.6 kg |
|---|
