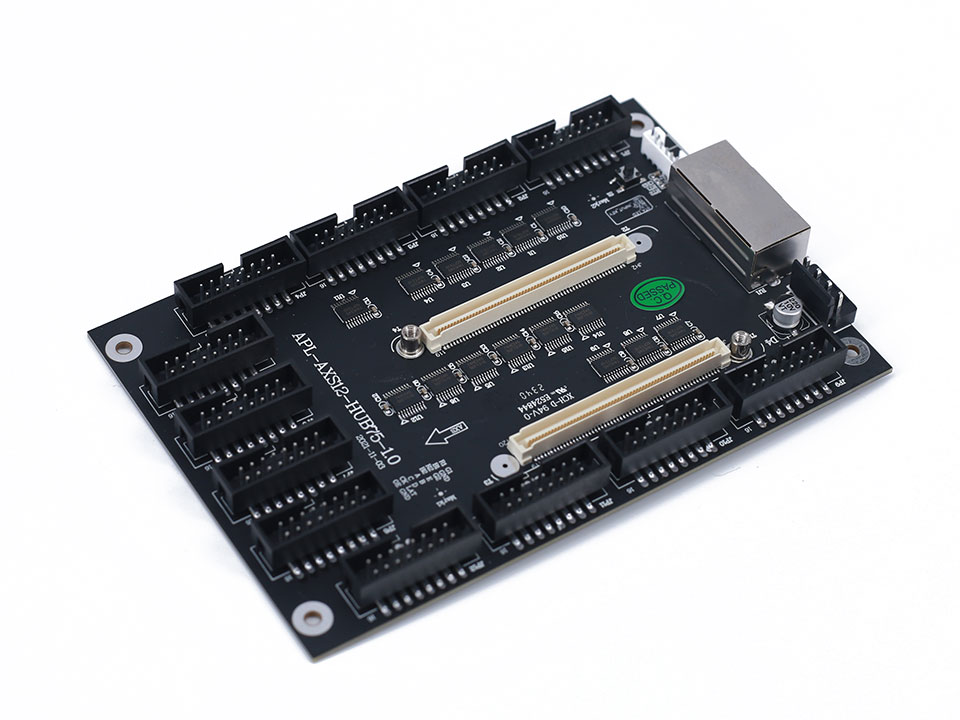

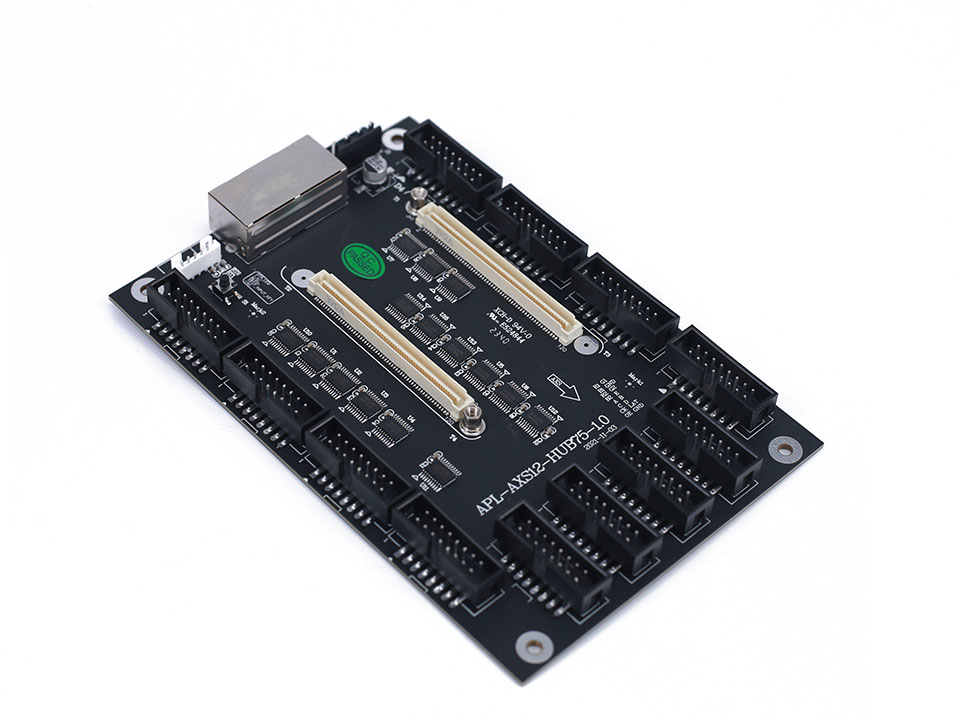

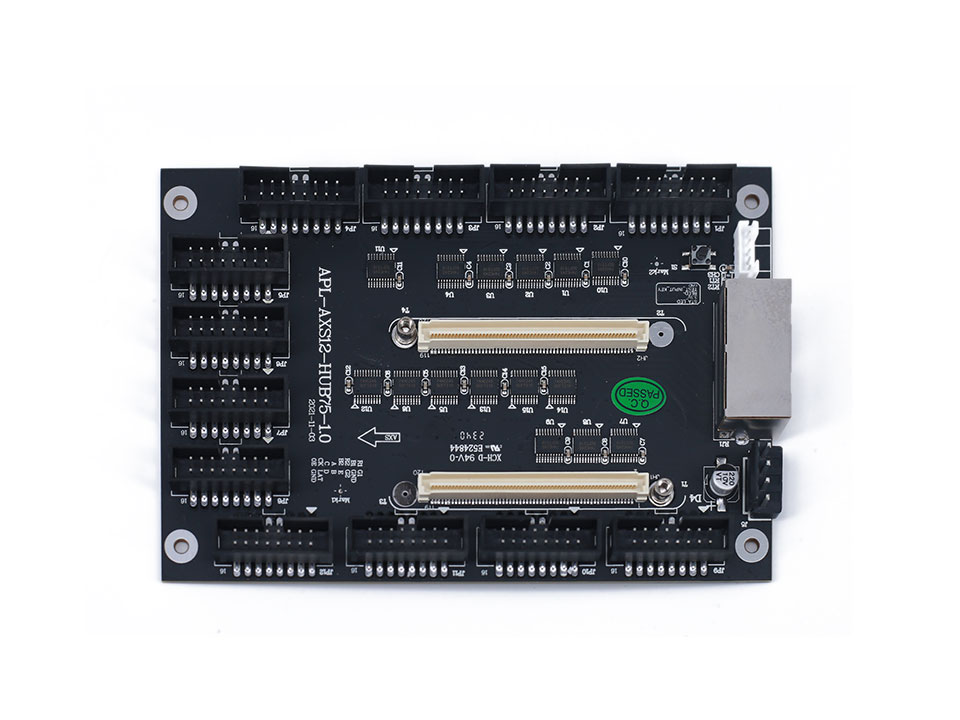

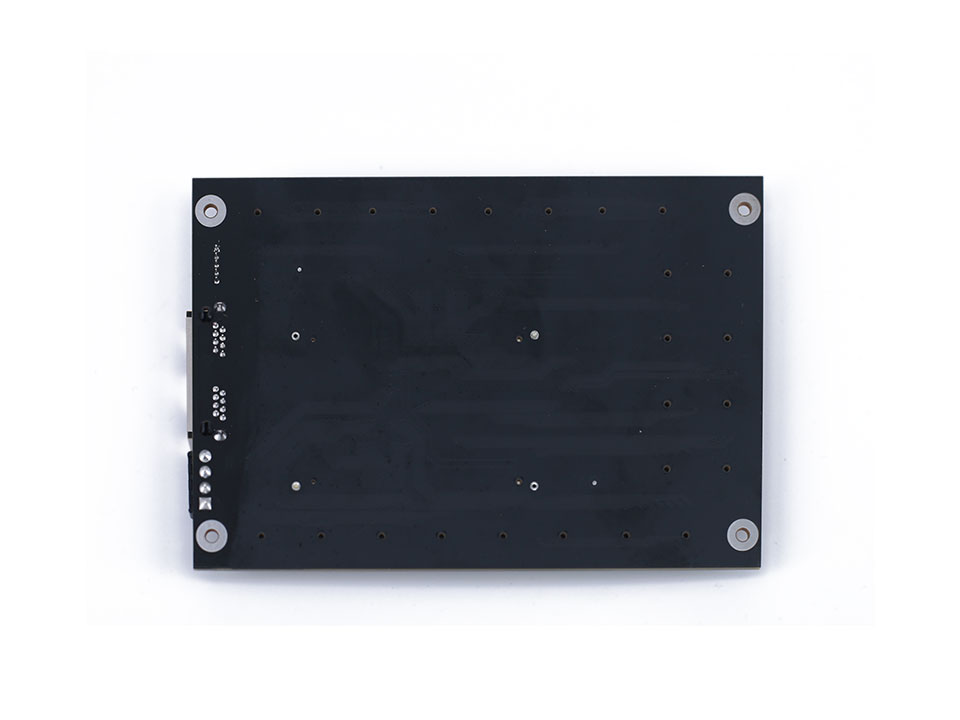

AXS12-HUB75 Card

Descripción

The AXS series is a HUB Card that facilitates the connection of Novastar A series cards (A5, A7, A10 etc.) and Colorlight K series (K5, K8, K9, K10 etc.) to LED Module.
It has 12 ports of HUB75 ,the same size and mounting holes as the standard cards so it can be used with ease.
The AXS16-HUB75 Card interface consists of 16 pins divided into 24 groups of RGB data. The card is able to process RGB signals and integrate many LED display modules in a single networked system. Its design makes it highly compatible with other Novastar or Colorlight products.
Support 1-32 scan.

HUB75E Interface definition:
1 R1                  G1 2
3 B1                 GND 4
5 R2                 G2 6
7 B2                 E1 8
9 A1                 BB1 10
11 C1                D1 12
13 CLK1          LAT1 14
15 OE1            GND 16
