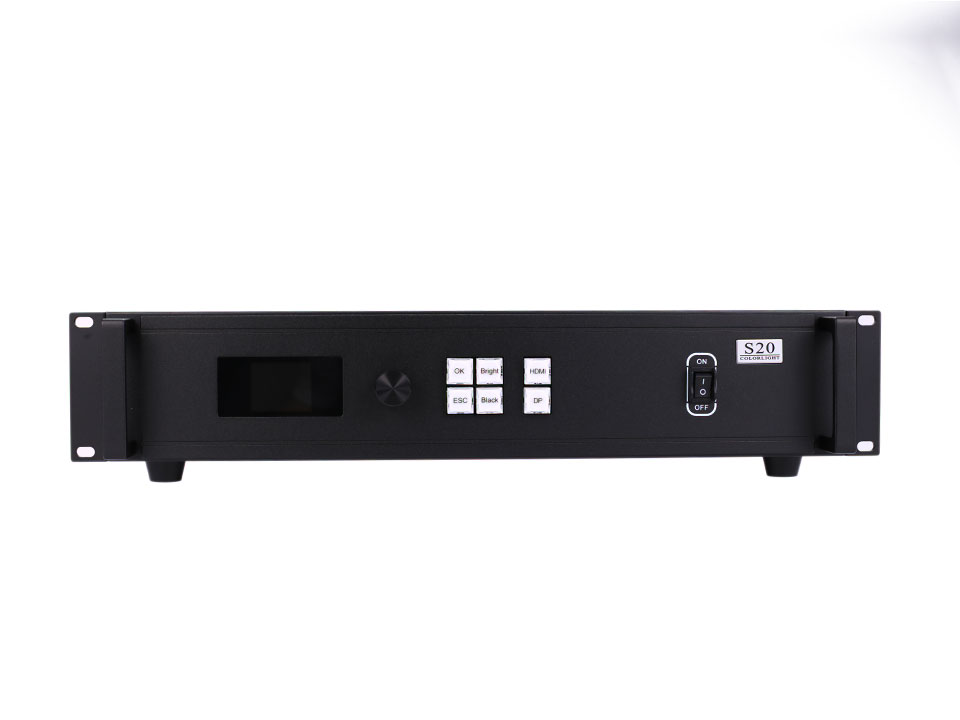

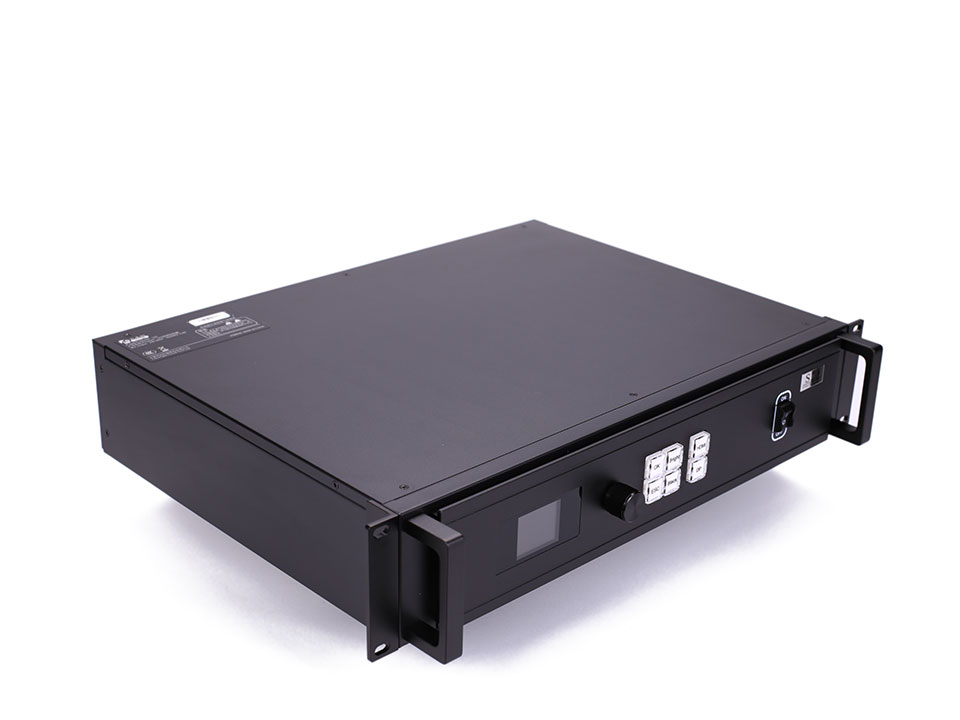

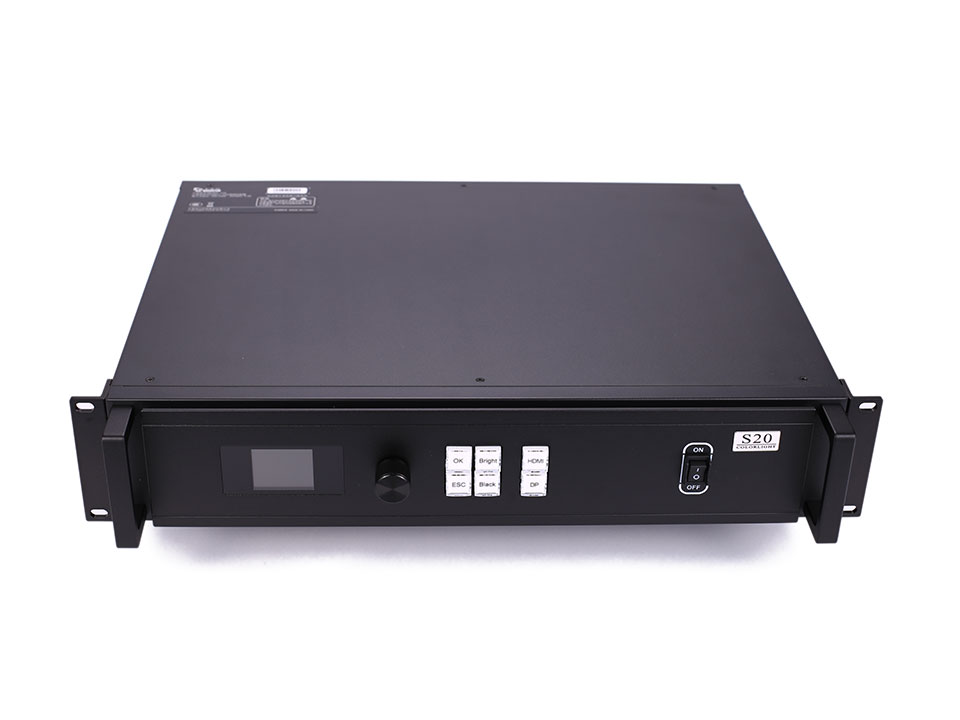

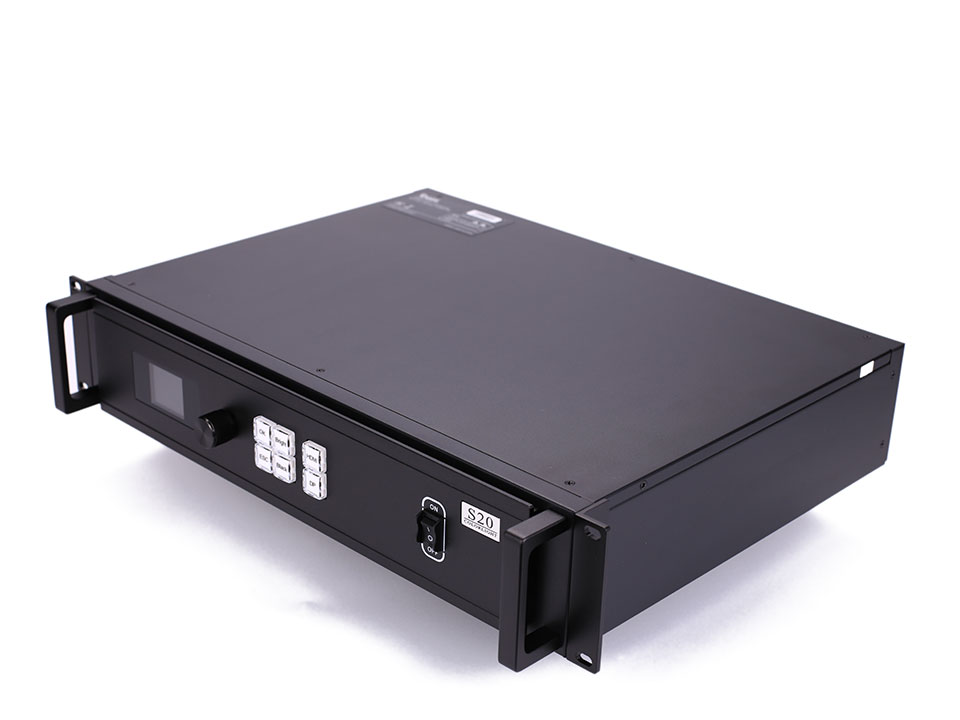

Colorlight S20 Sending box

Descripción

Colorlight S20 controller is a powerful signal receiver with the capability to input DP1.2 and HDMI 2.0, providing smooth transitions between sources for up to 8 million pixels of maximum resolution. Single Ethernet ports can handle displays at an impressive 4096×2160@60Hz while going beyond this via multiple units offers even greater potential – creating vast ultra-long, high-definition visuals that will take your breath away!

Inputs: 1×DP 1.2, 1×HDMI 2.0
Supports seamless switching between signal sources
Loading capacity: up to 8.85 million pixels, maximum width or height: 8192 pixels
Loading capacity of a single Ethernet port: up to 650 thousand pixels, maximum width or height: 4096 pixels. The loading capacity will reduce when the height exceeds 1280 pixels.
Input resolution: up to 4096×2160@60Hz, supporting customized setting of resolution within control range.

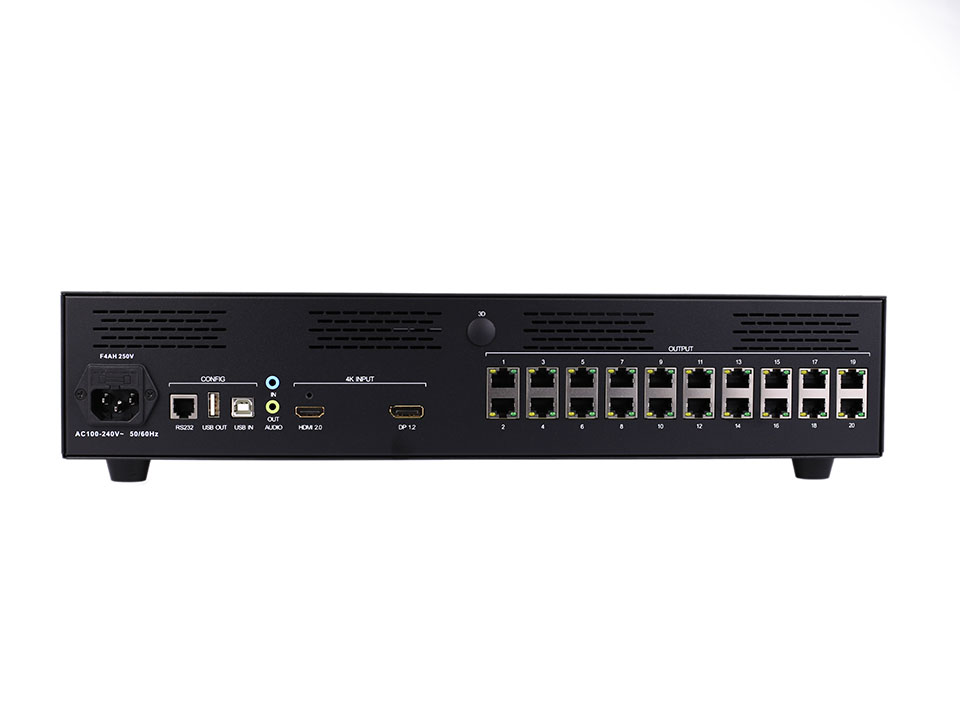

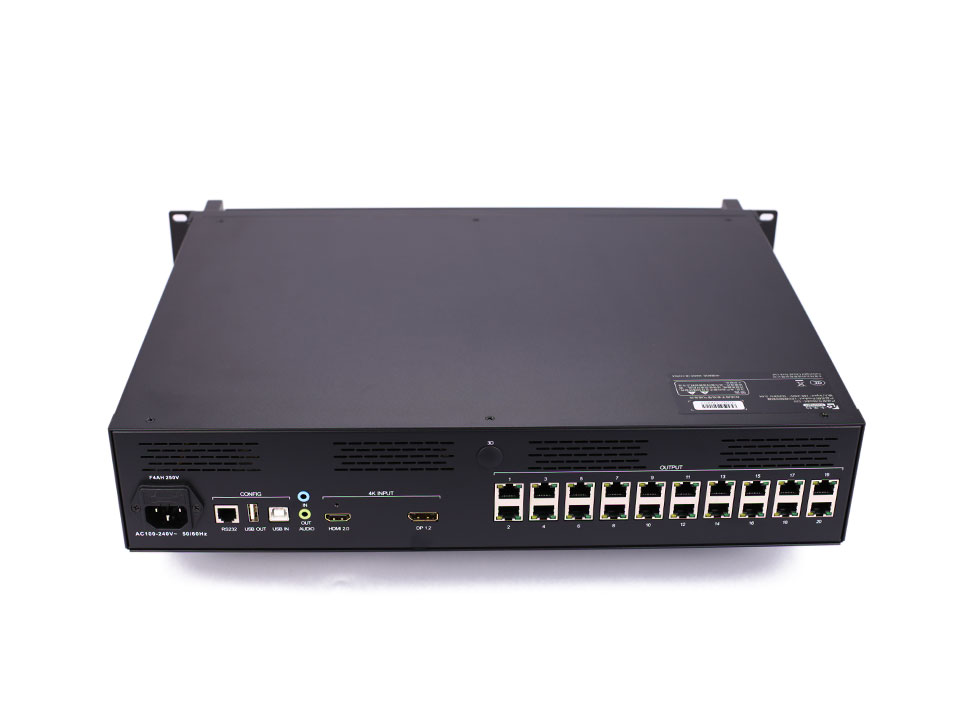

Outputs: 20 Gigabit Ethernet ports, supporting Ethernet port redundancy or controller redundancy
Supports USB cascading control and RS232 protocol control
Separate audio input and output
Supports 3D display（optional）
Better gray at low brightness
Compatible with all receiver cards and multifunction cards of Colorlight
