DBS-HRV12A75 DBS-HRV11A full color receiving card, Online Shopping for LED Card, LED Display Parts, LED-CARD Shopping, Over 500 USD free of UPS/DHL Shipping
$21.00
516 disponibles
Descripción

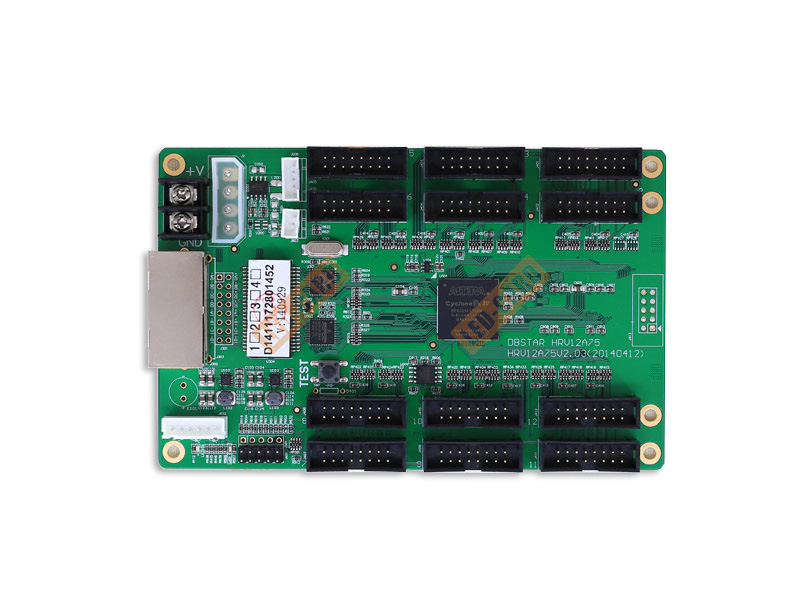

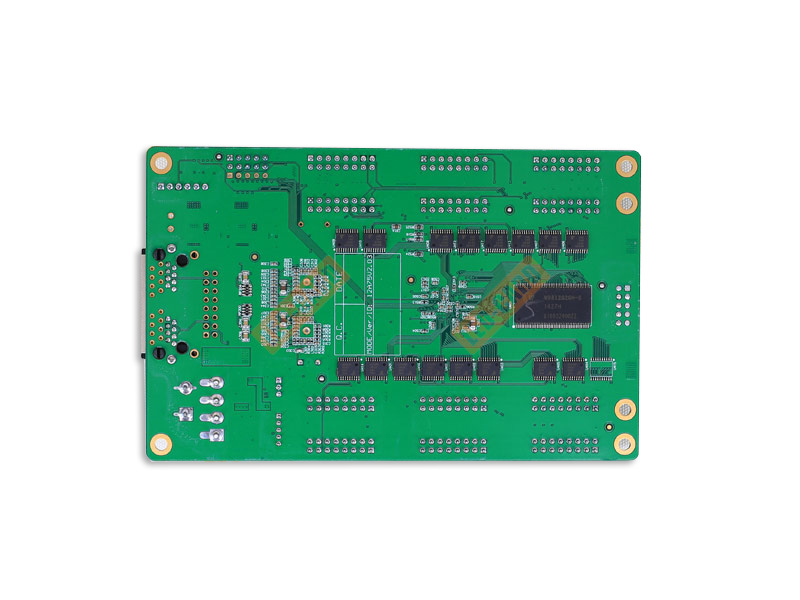

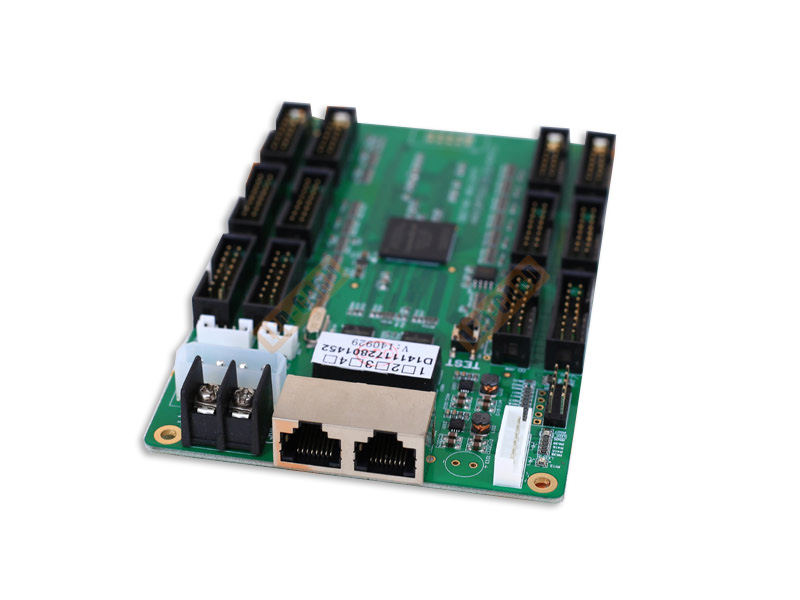

DBS-HRV12A75 DBS-HRV11A full color receiving card Functions:
1ã€Fully support HRV09 HRV11，support programs change and order programs.
2ã€Support led drivers with PWM, highly improved refresh rates with static screens and dynamic screens.
3ã€Full new grey engine,better performance on low grey level.
4ã€Support automatic collection on error detection and other error information.
5ã€Support PC 1000M network card image sending,need no sending card.
6ã€Support 10bit HD video source.
parametes：
|
Type
|
Typical value
|
Max value
|
|
Supported screen type
|
single color, dual-color,full-color, real pixel,virtual pixel.
|
|
|
Supported LED drivers
|
MBI5030/5036/5039/5041/5042/5224/5050/6020/6030/6024/5224/
LPD6803/DM413/SUM2030/29/32/17/18/19/MY9266/68/69/ SM16157/TB62D722RFT3630/SD16749/P2502 |
|
|
Pixels by single sending card
|
1280×1024(dual ports)
|
|
|
Number of receiving cards connected by cable
|
<100
|
256
|
|
Pixels by single receiving cards
|
256 x128（full color）
1024 x512（dual color）
|
|
|
RGB data groups by single receiving card
|
16-24
|
24
|
|
Lines by one group RGB
|
1/2/4/8/16/32
|
32
|
|
Grey grades
|
4096(4k)
|
65536(64k)
|
|
Data CLK frequency
|
15.62MHz
|
31.25MHz
|
|
Refresh rate
|
180Hz
|
>3600Hz(如MBI5042)
|
|
Brightness wastage
|
15~20%
|
<5%
|
|
PWM brightness adjust degree
|
256(may automatically adjust by brightness sensor)
|
|
|
Electronic current plus brightness adjustment grade
|
64/256(according to led drivers)
|
|
|
Dot by dot revise pixels by PWM brightness
|
64×64
|
256×256
|
|
Pixels on open circuit and short circuit error detection
|
static：2048×16ï¼›1/2：1024×16ï¼›
1/4：2048×16ï¼›1/8：4096×16ï¼›1/16：8192×16 |
|
|
Fiber transmission distance
|
Multi-mode fiber ：500meters； single-mode fiber：10KMs
|
|
|
Other functions
|
Power on gradual protection ã€OE Polarity switch protect screen scan tubes, led screen self-detecting
|
|
|
No sending card function
|
Sending images by 1000M network card PC
|
|
Información adicional
| Peso | 0.3 kg |
|---|
