DBS-HVT09 full color LED enviar Junta (HVT 2009)
Dbstar
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
HVT09 is an old version of the card,and its new compatible version is DBS-HVT11
$230.00
Agotado
Descripción

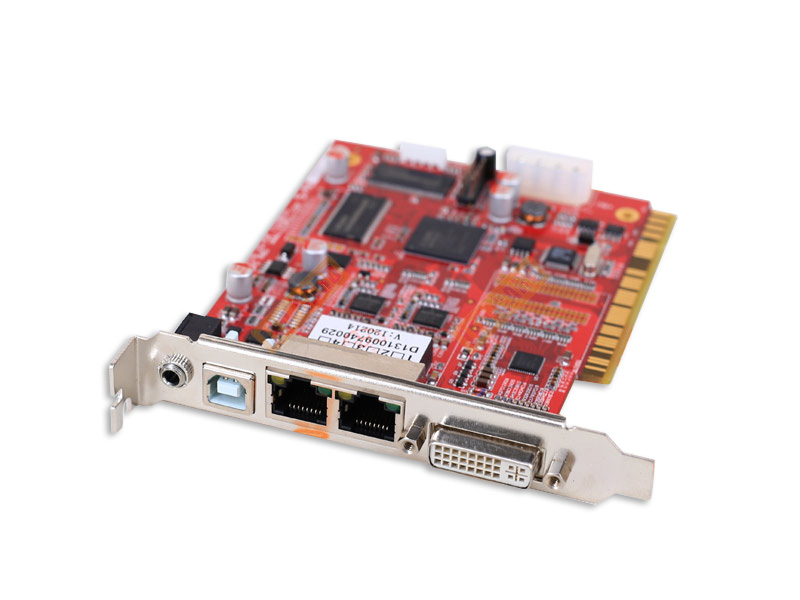

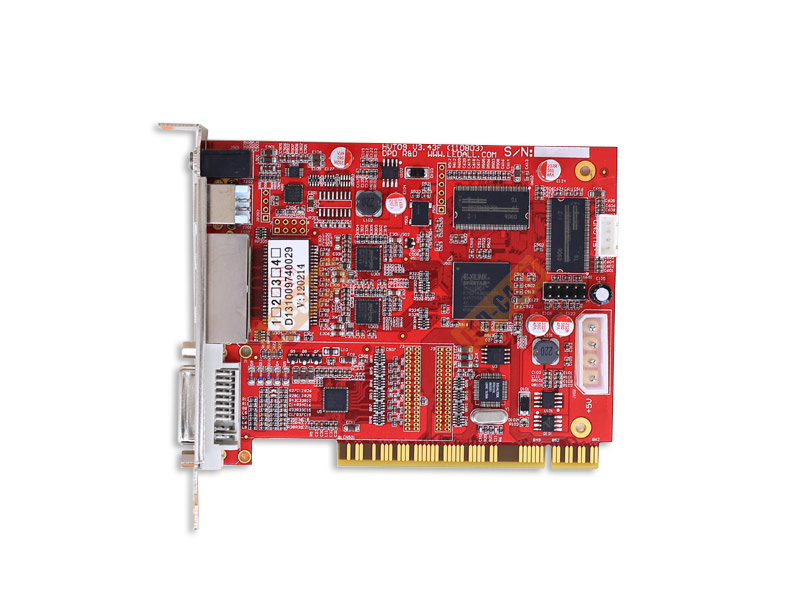

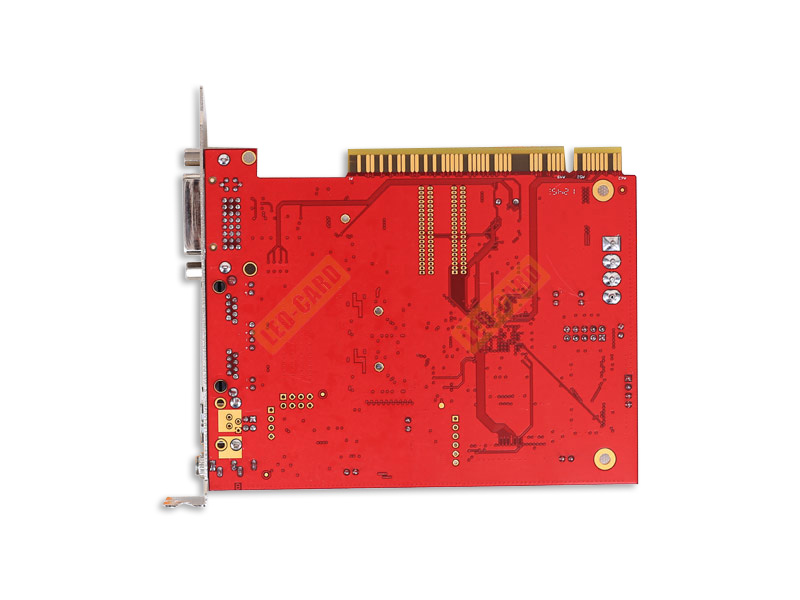

DBS-HVT09 full color LED sending board (HVT 2009)
HVT09 is an old version of the card,and its new compatible version is DBS-HVT11
|
Type
|
Typical value
|
Max value
|
|
Supported screen type
|
single color, dual-color,full-color, real pixel,virtual pixel.
|
|
|
Supported LED drivers
|
MBI5026/MBI5030/MBI5036/
MBI5039/MBI5042/MBI5050/MBI6024/
LPD6803/DM413/DMX512/ZQL9726
TCD62D722/TC62D766/MBI5050/MBI6024 |
|
|
Pixels by single sending card
|
1280×1024(dual ports)
|
|
|
Number of receiving cards connected by cable
|
<100
|
256
|
|
Pixels by single receiving cards
|
256 x192（full color）
1024 x512（dual color）
|
512×384（full color）
1280 x512（dual color）
|
|
RGB data groups by single receiving card
|
16-24
|
24
|
|
Lines by one group RGB
|
1/2/4/8/16/32
|
32
|
|
Grey grades
|
4096(4k)
|
65536(64k)
|
|
Data CLK frequency
|
15.62MHz
|
31.25MHz
|
|
Refresh rate
|
180Hz
|
>3600Hz(如MBI5042)
|
|
Brightness wastage
|
15~20%
|
<5%
|
|
PWM brightness adjust degree
|
256(may automatically adjust by brightness sensor)
|
|
|
Electronic current plus brightness adjustment grade
|
64/256(according to led drivers)
|
|
|
Dot by dot revise pixels by PWM brightness
|
64×64
|
256×256
|
|
Pixels on open circuit and short circuit error detection
|
static：2048×16ï¼›1/2：1024×16ï¼›
1/4：2048×16ï¼›1/8：4096×16ï¼›1/16：8192×16 |
|
|
Fiber transmission distance
|
Multi-mode fiber ：500meters； single-mode fiber：10KMs
|
|
|
Other functions
|
Power on gradual protection ã€OE Polarity switch protect screen scan tubes, led screen self-detecting
|
|
|
No sending card function
|
Sending images by 1000M network card PC
|
|
Información adicional
| Peso | 0.8 kg |
|---|
