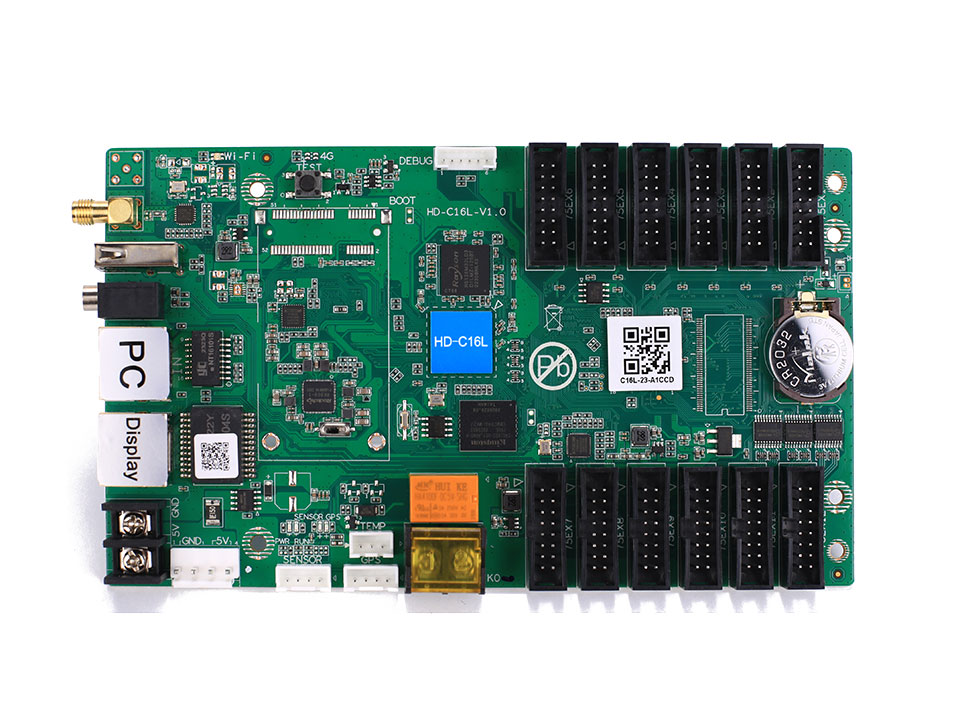

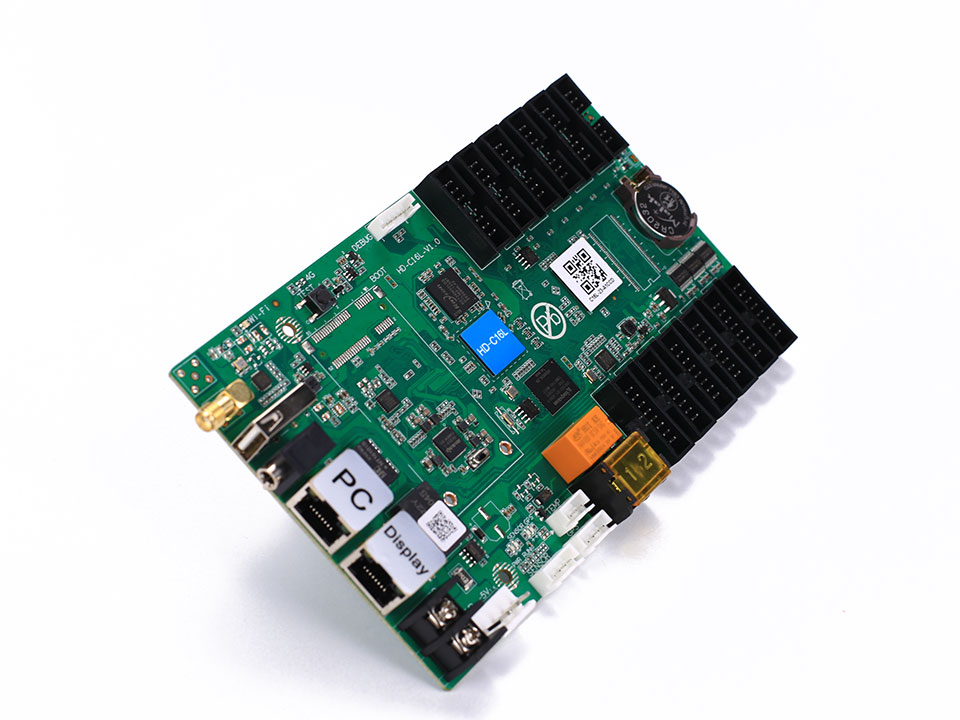

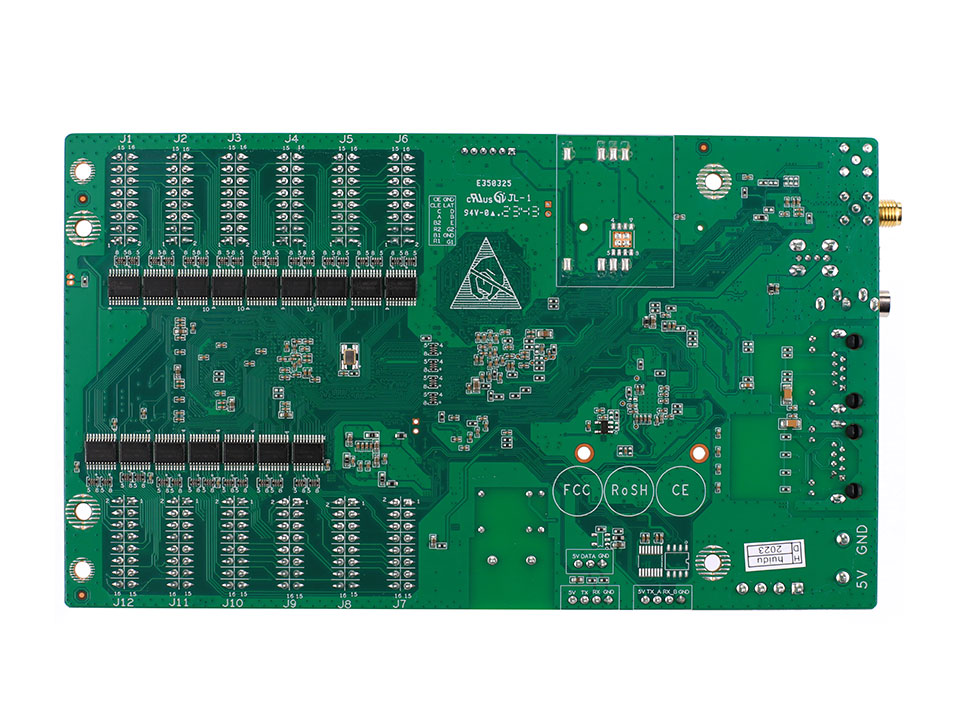

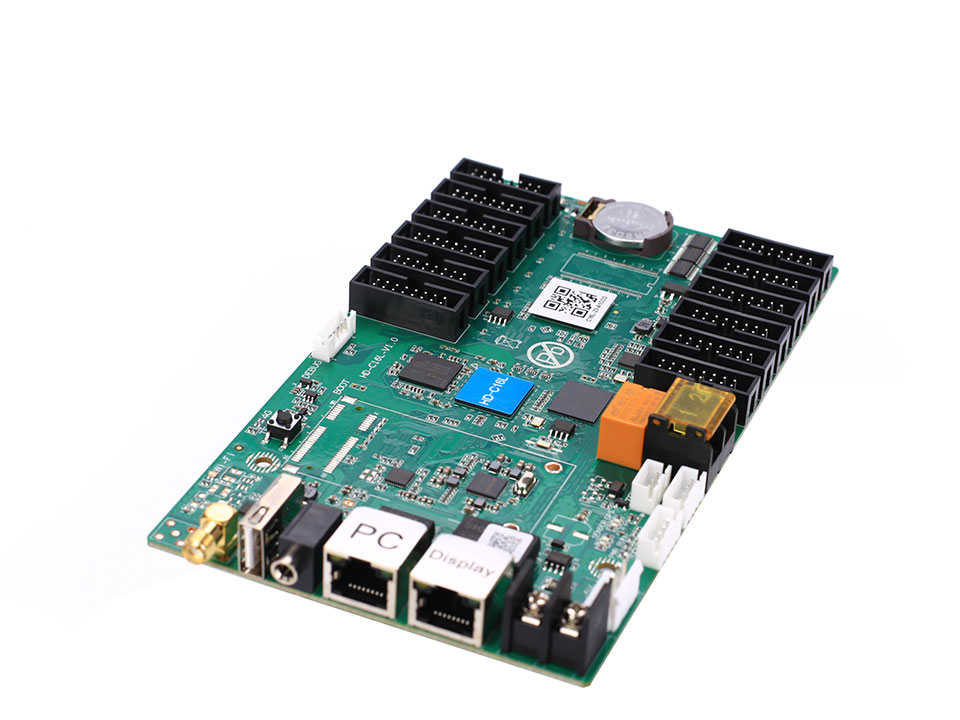

Huidu HD-C16 / C16L Control Card

Descripción

HD-C16 Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.

1. The maximum loading capacity: 204,800 pixels
2. The maximum width support 8192 pixels.
3. Equipped with Wi-Fi, Mobile APP management.
4. With a relay to control the power supply remotely.
5. Support optional 4G connection, Internet remote control.
6. 2 lines 50PIN HUB, it can connect to different HUB type.
Module type:
Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip
Scan Mode: Static to 1/64 scan mode
Control Range: 640*320, widest 8192, highest 1024
Gray Scale: 256-65536
