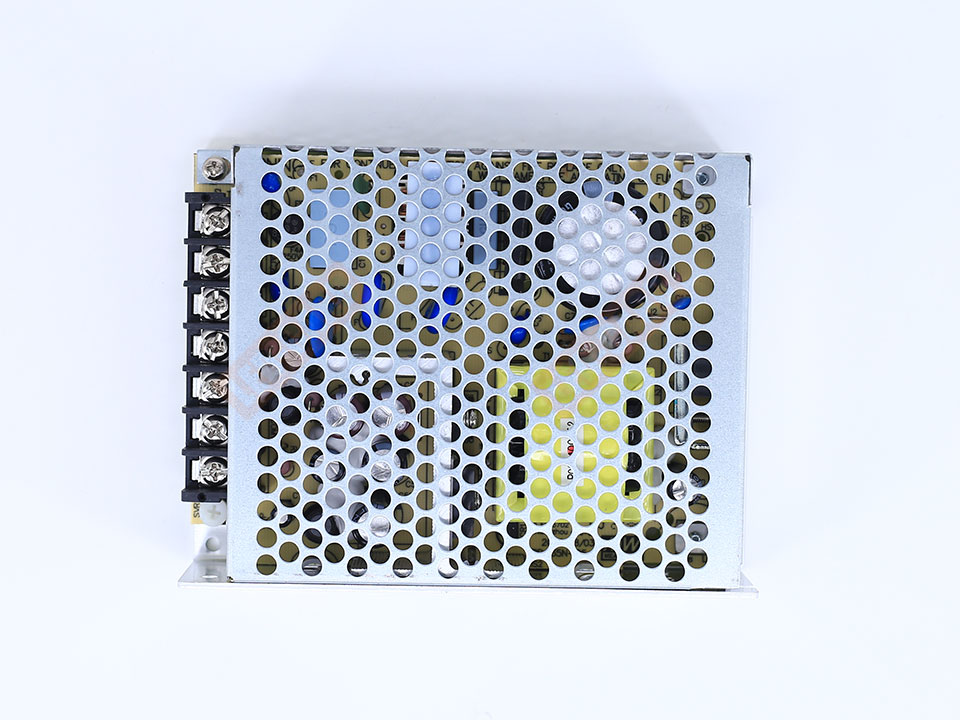

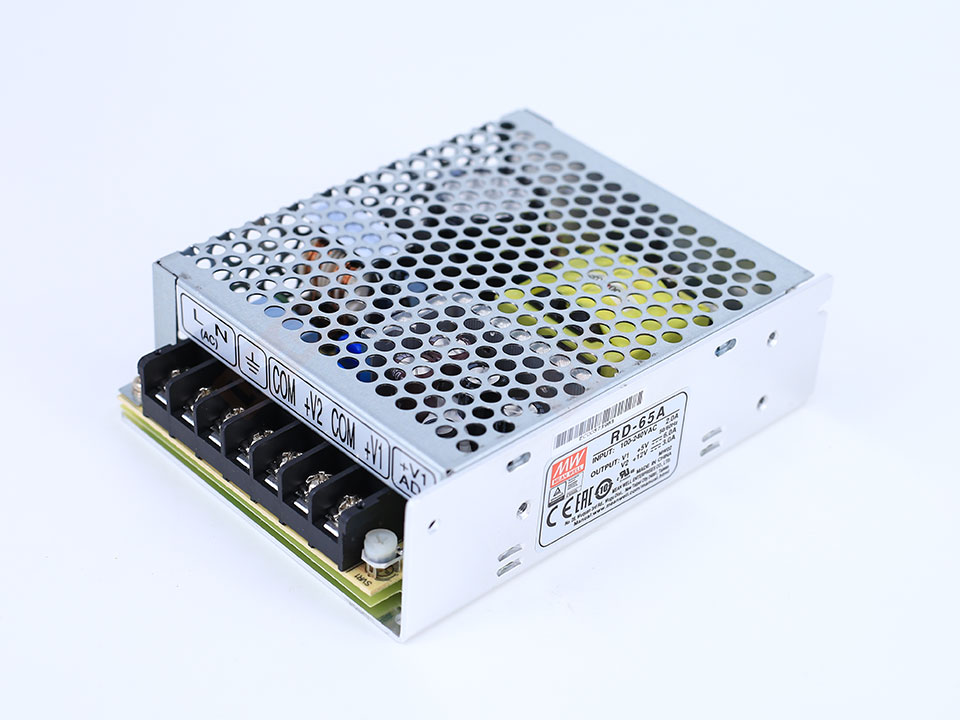

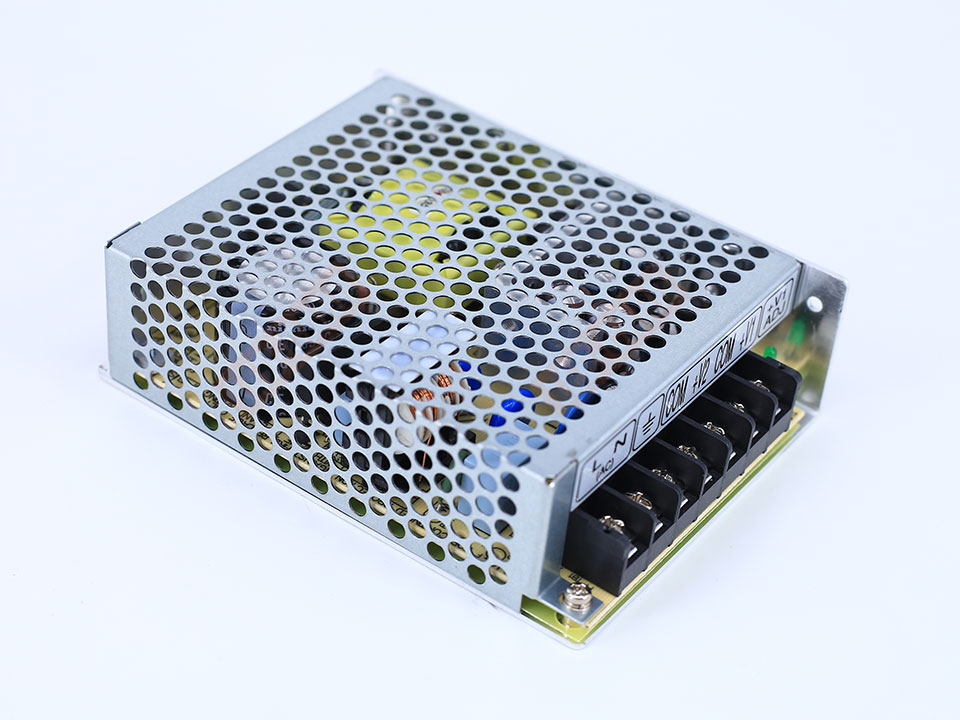

MEANWell RD-65A power

Descripción

MEANWell RD-65A power Features :

5V 60A 66W
DC output Range: 4.75-5.5V
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 78%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
1U low profile 30mm
LED indicator for power on
2 years warranty
Size:129*98*38mm
Weight: 440G
AC input voltage range———88-264VAC or 125-373VDC
Input frequency———————————47-63Hz
DC adjustment range—————————–±10% rated output voltage
Line regulation full load————————≤0.5%
Output over load protection——-110%-150% hiccup mode auto-recovery
Rise hold up time——————–50mS 20mS at full load typical
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40C @100%-+60 @60% load
Storage temperature—– -20-+85C 20%~95%RH(non condensing)
