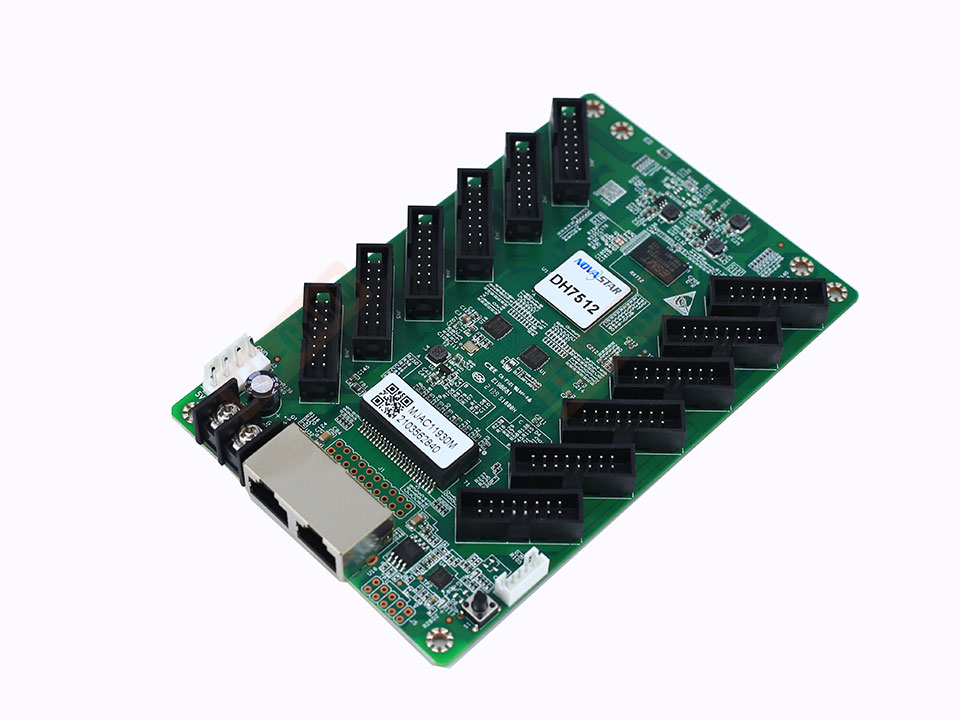

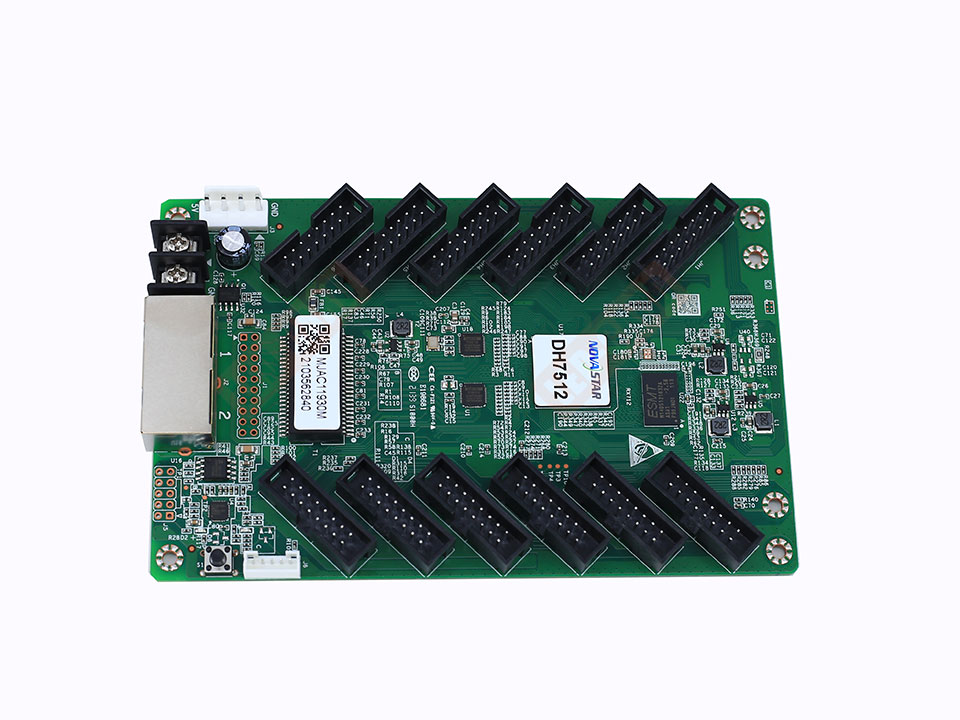

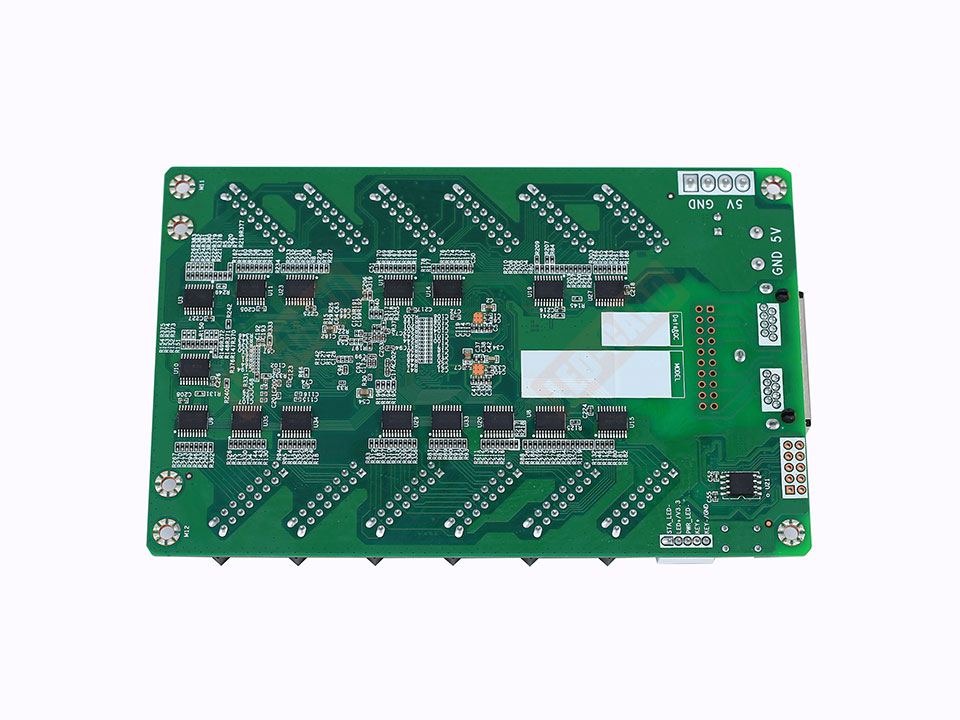

Novastar DH7512 Receiver Card

Descripción

DH7512 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*512 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of DH7508 to communicate with 12 standard hub75E interfaces, which has high stability and supports up to 24 sets of RGB well data, Use of words in a variety of field environments， and with Brightness adjust.

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 91.5mm x 145.7mm x 18.4mm
Weight: 93g
