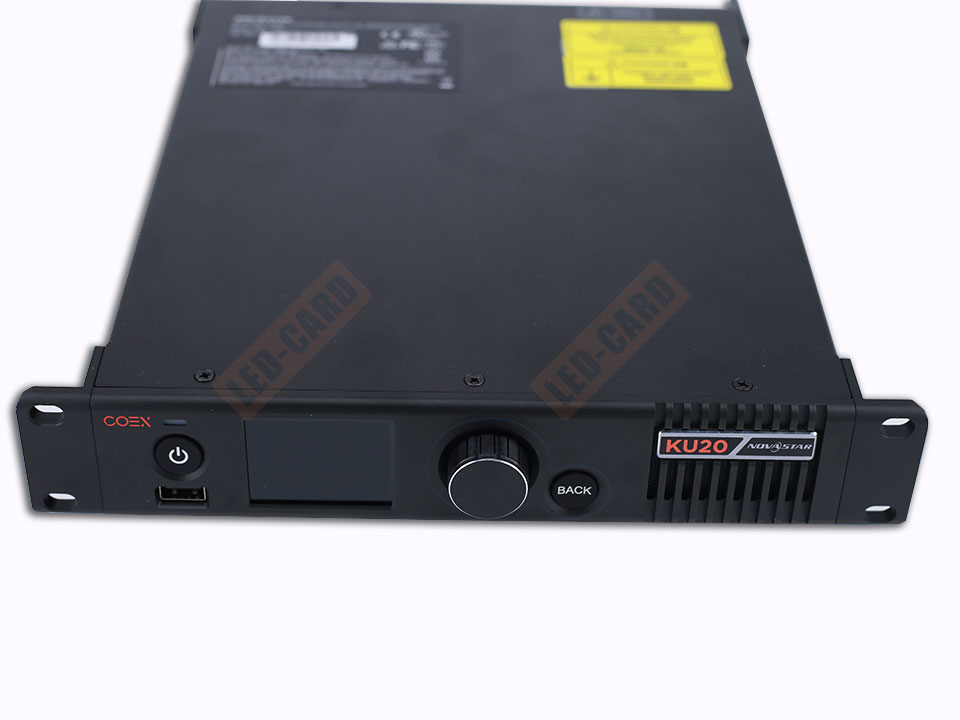

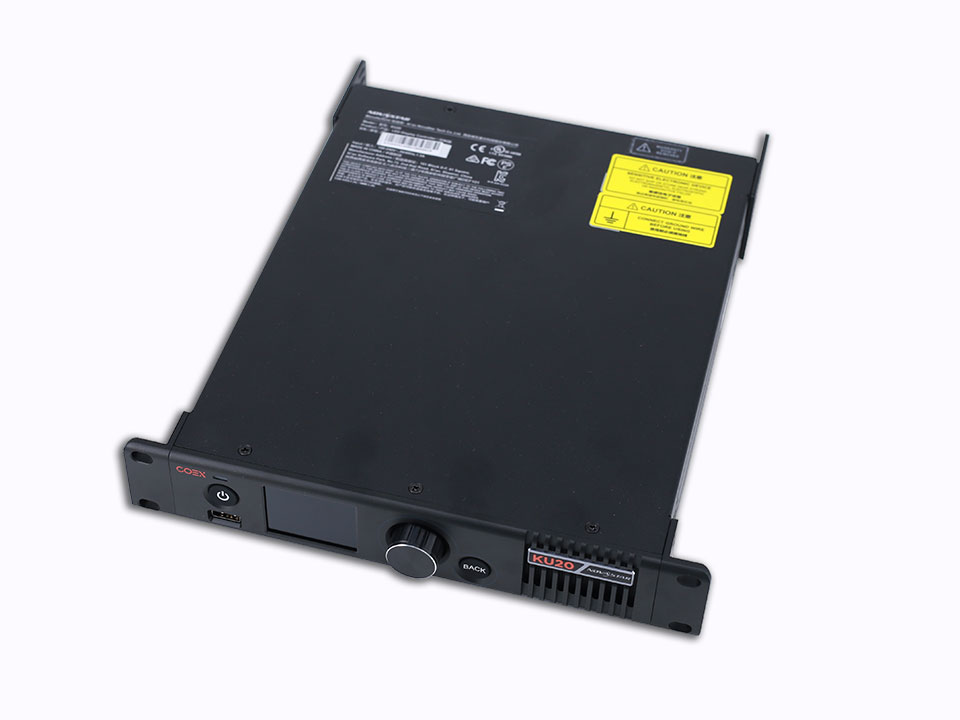

Novastar KU20 LED Display Controller

Descripción

KU20 is an LED display controller with 6 Ethernet ports in the brand-new control system COEX series of NovaStar . This controller offers 1x HDMI input, 6x Ethernet
outputs and 1x optical output. It can also work with the brand-new software VMP (Vision Management Platform) to
provide a better operation and control experience.

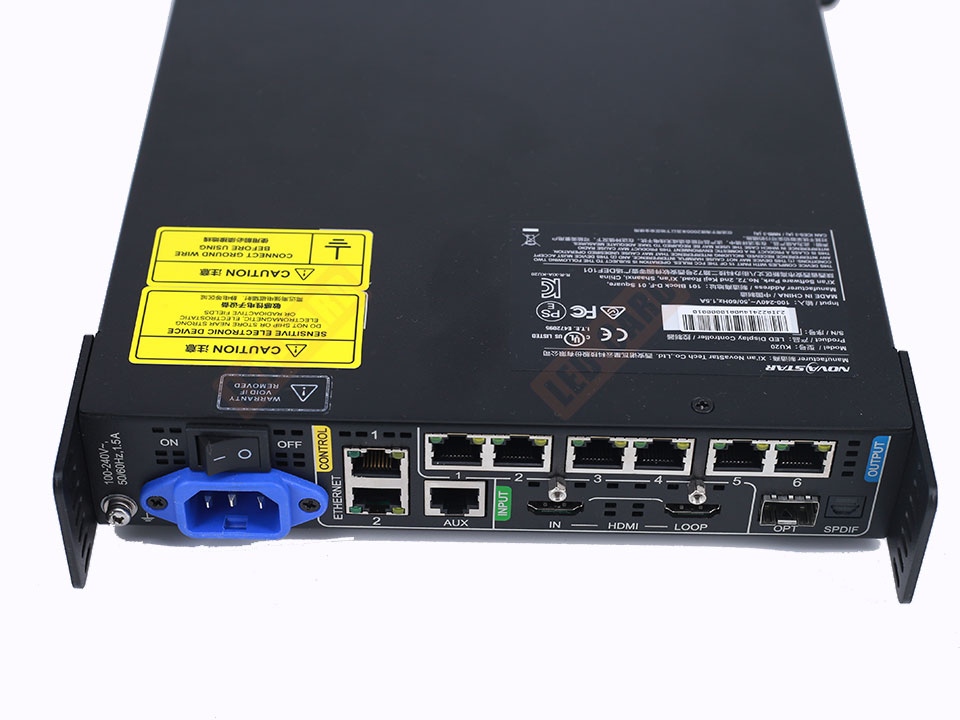

Inputs and Outputs
HDMI input
1×HDMI 1.3 (with loop through) 1920×1200@60HZ
10-bit and 8-bit video inputs
Ethernet outputs
6 Ethernet outputs
8Bit@60Hz: 650,000 pixels
10bit@60Hz: 325,000 pixels. When the controller works with the A10s Pro receiving card, the capacity can be up to 480,000 pixels.
Optical output
One10G optical output
Size: 254.3 mm × 50.6 mm × 290.0 mm
Weight: 2.1KG
