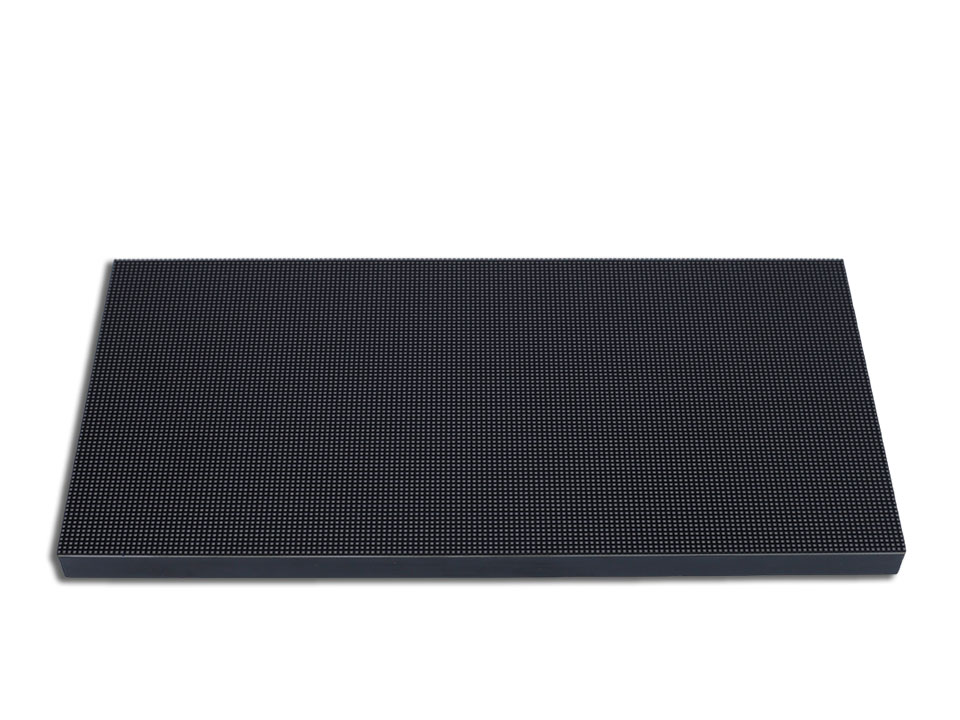

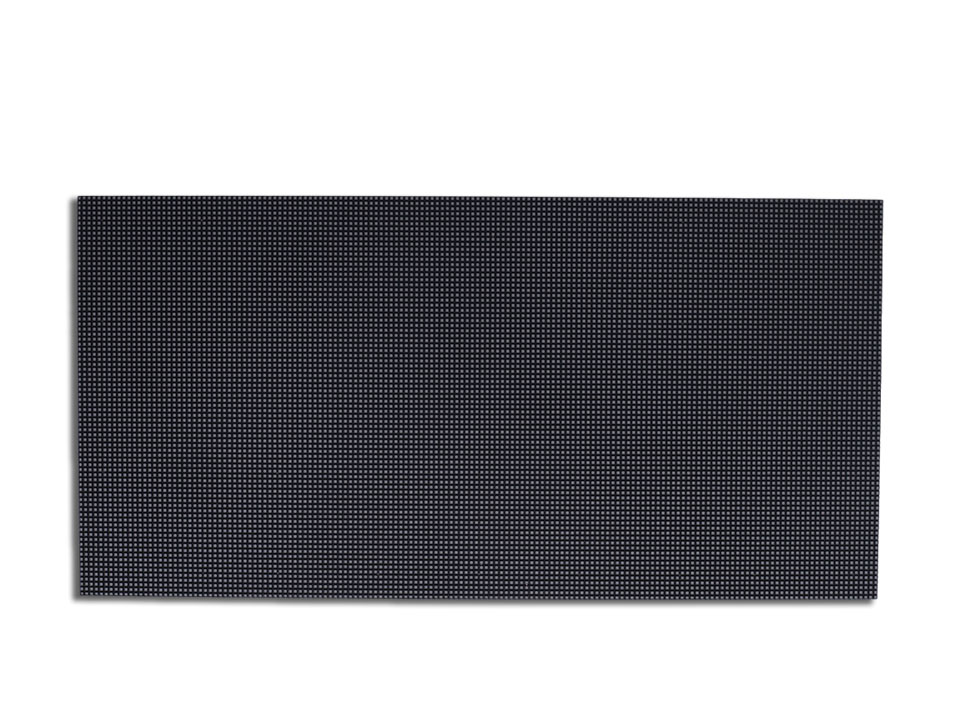

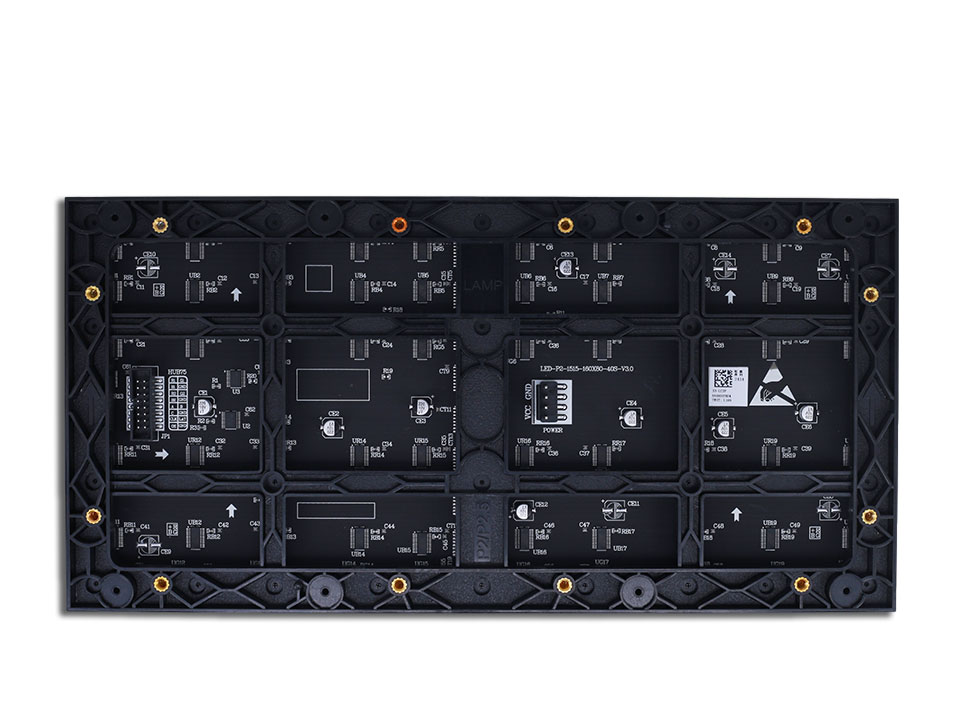

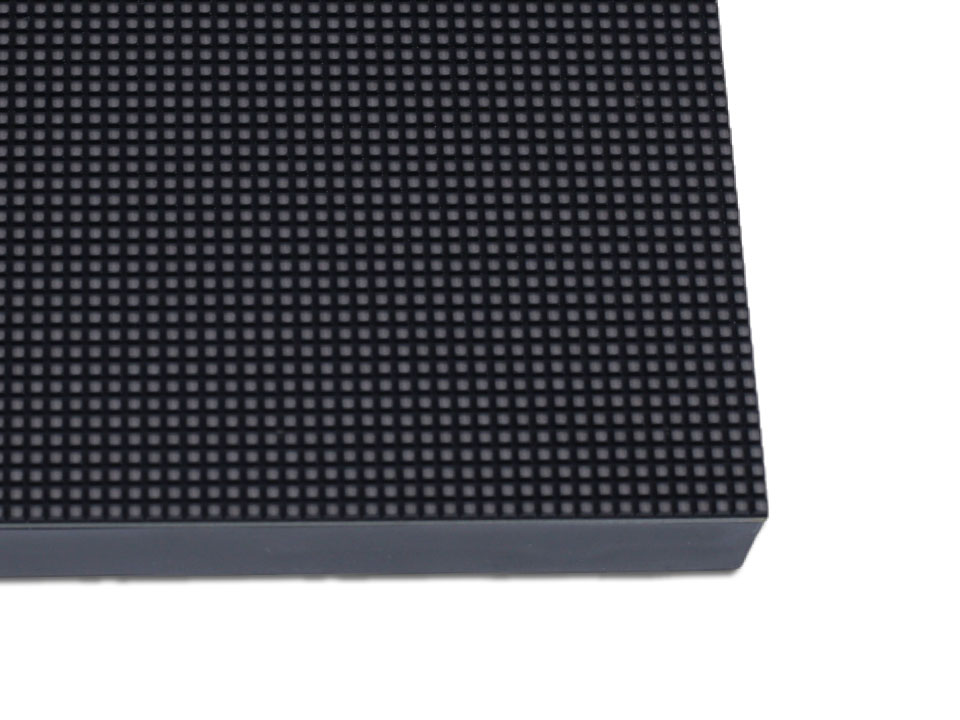

P2 indoor LED Modules 320*160
SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Pixel pitch 2mm
Module Size 320X160 mm
Model Pixel 160X80Pixels
lattice density 250000 dots/square meter
Pixel form 1R1G1B SMD1515
$32.00
Descripción
P2 indoor LED Modules 320*160
| Pixel pitch | 2mm |
| Module Size | 320X160 mm |
| Model Pixel | 160X80Pixels |
| lattice density | 250000 dots/square meter |
| Pixel form | 1R1G1B SMD1515 |
| Best viewing distance | 1m~20 m |
| Max power consumption | 800W/square meter |
| Ave power consumption | 300W/square meter |
| Max power per module | 75W |
| warranty | 1 year |
| Drive mode( Optional) | Constant current 1/40scan |
| Control system | DVI card+Full color control card |
| Pixel type | Real pixel |
| refresh frequency | >=1200HZ |
| Horizontal View Angel | > 110 degree |
| Working Environment |
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
|
| Working voltage |
DC 5V
|
| Lifetime | >=100000 hours |
| Gray scale | 12 bit/ 1 color |
| Color display | manual adjust |
| Brightness | >800 cd/square meter |
| Blind spot rate | <0.00001 |
| Waterproof Class | IP43 |
| Software | Support window series system |
You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
Información adicional
| Peso | 0.6 kg |
|---|---|
| Dimensiones | 32 × 16 × 2 cm |
| Manufacturer |
