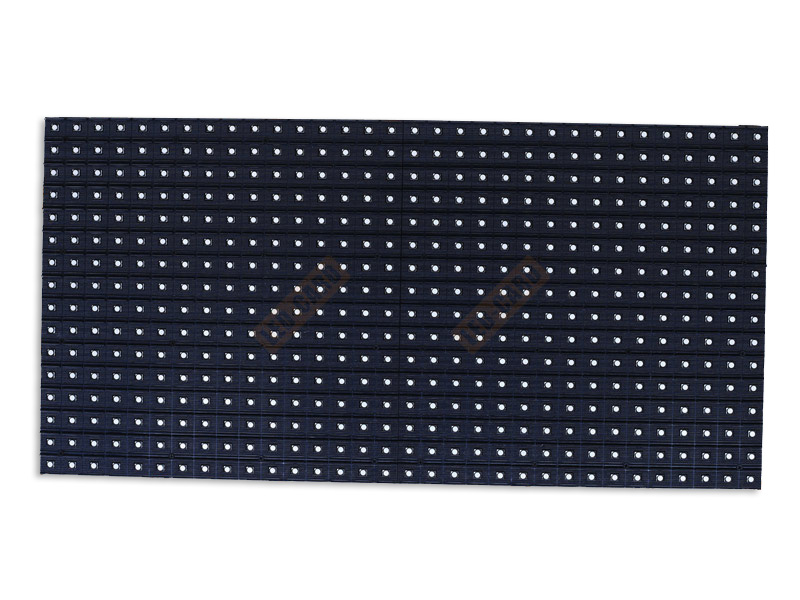

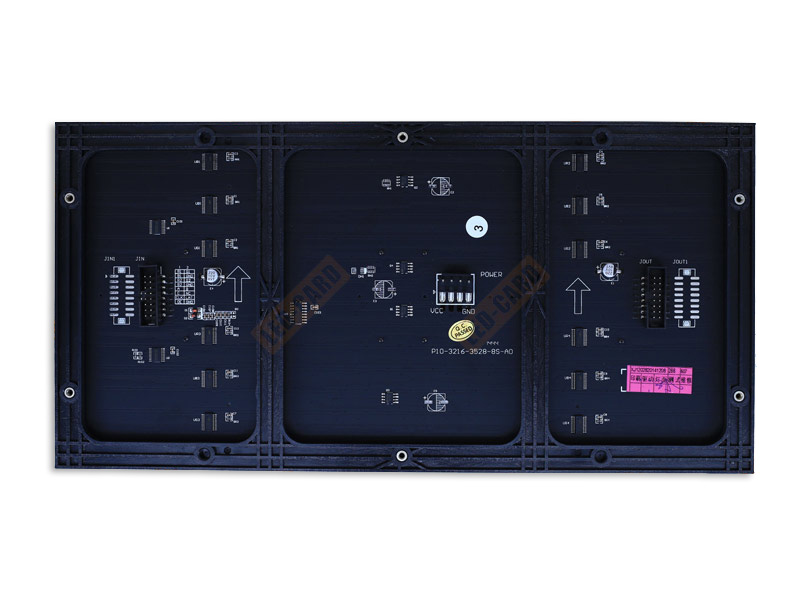

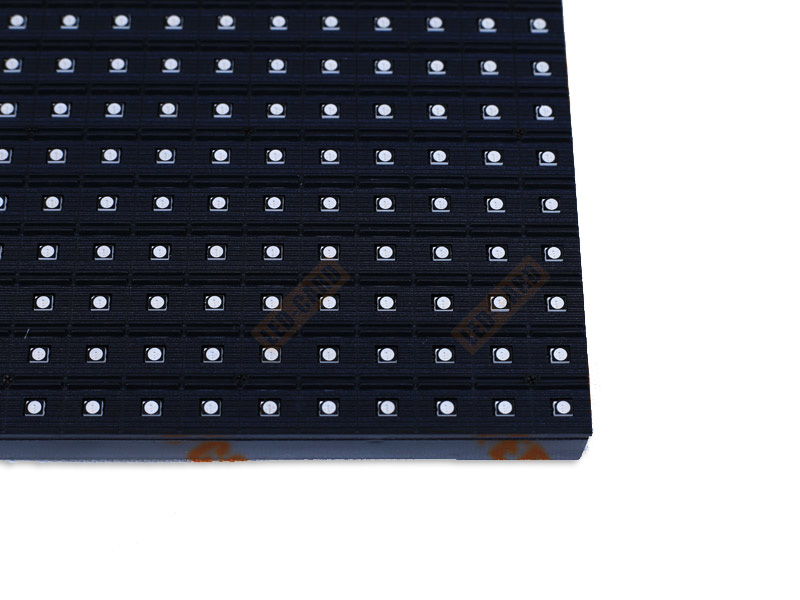

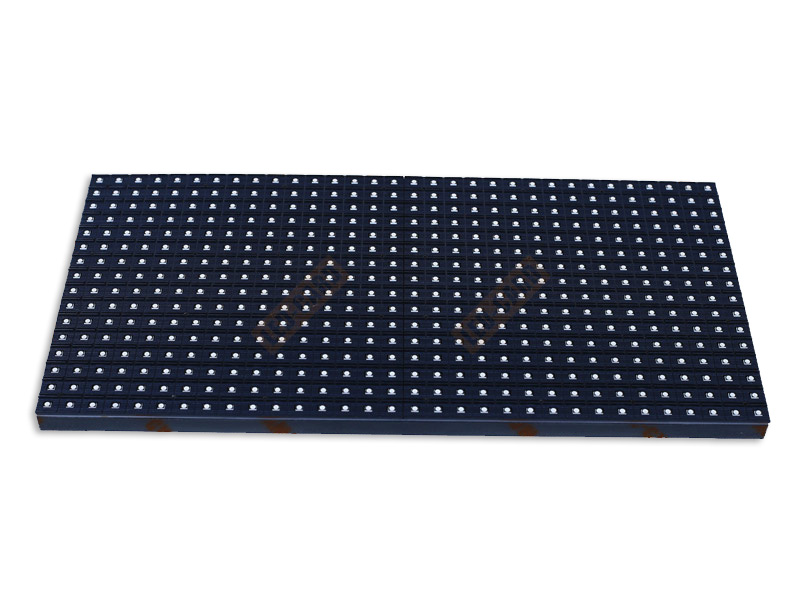

Indoor SMD fullcolor LED module(P10)
SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Pixel pitch ： 10mm
Refresh frequency： ≥480HZ
Module size： 320mm*160mm
View angle： 160C
$16.20 $15.00
297 in stock
Description
|
Module: Indoor SMD fullcolor LED module(P10)
|
LED assembly type
|
Matrix
|
|
|
Pixel pitch
|
10mm
|
Refresh frequency
|
≥480HZ
|
|
Module size
|
320mm*160mm
|
View angle
|
160°
|
|
Model pixel
|
32*16
|
Working environment
|
Tem: -20°C~60°C
|
|
Humidity: 35%-85%
|
|||
|
Lattice density
|
10000 dots/sqm
|
Working voltage
|
DC 5V
|
|
Pixel form
|
1R1G1B
|
Lifetime
|
≥100,000 hours
|
|
Best viewing distance
|
6-100m
|
Gray scale
|
10 bit/color
|
|
Max power per Module
|
31W |
Brightness
|
≥1200 cd/sqm
|
|
Blind spot rate
|
<0.00001
|
||
|
Drive mode(optional)
|
Constant current, 1/8 scan
|
Waterproof class
|
None
|
|
Max power consumption
|
600W/sqm
|
Warranty
|
1 years
|
You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
Additional information
| Weight | 0.6 kg |
|---|
