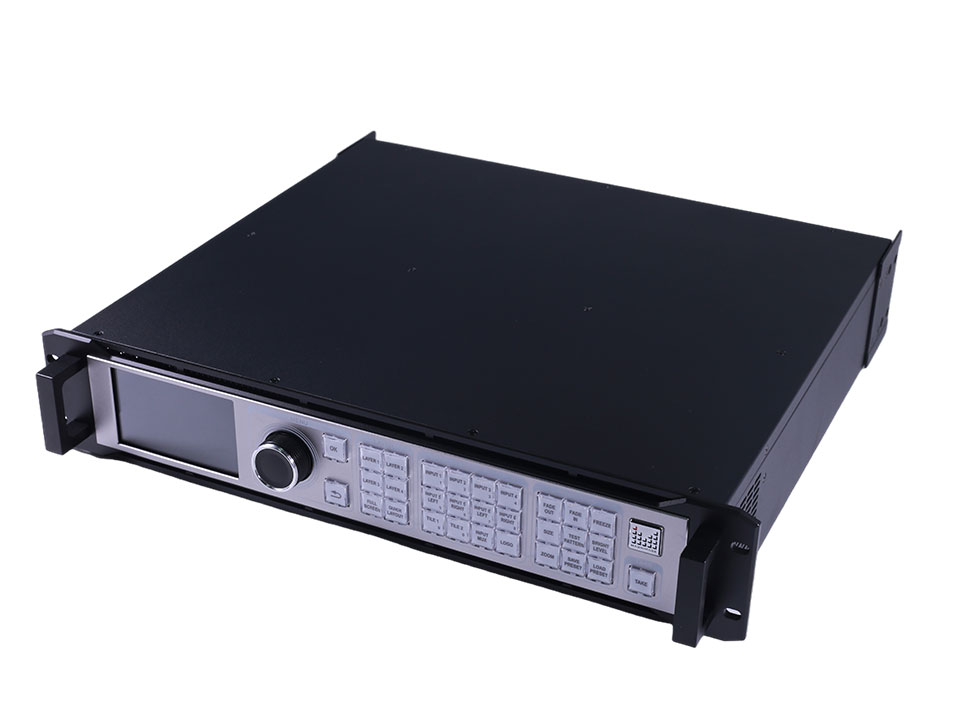

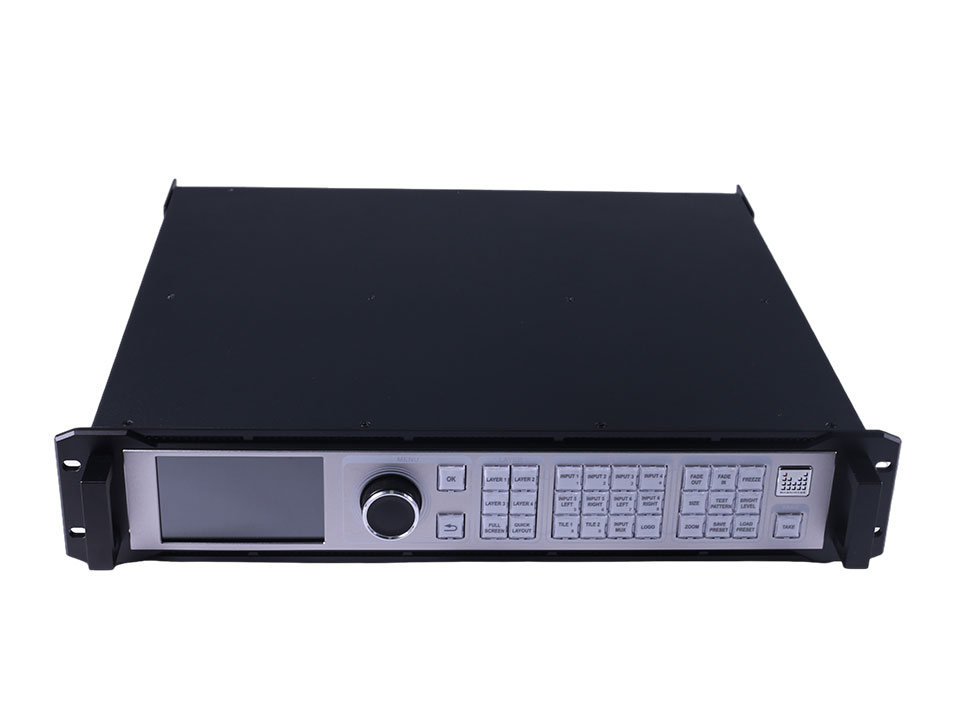

Magnimage LED-W4000-2DH Video Processor

Description

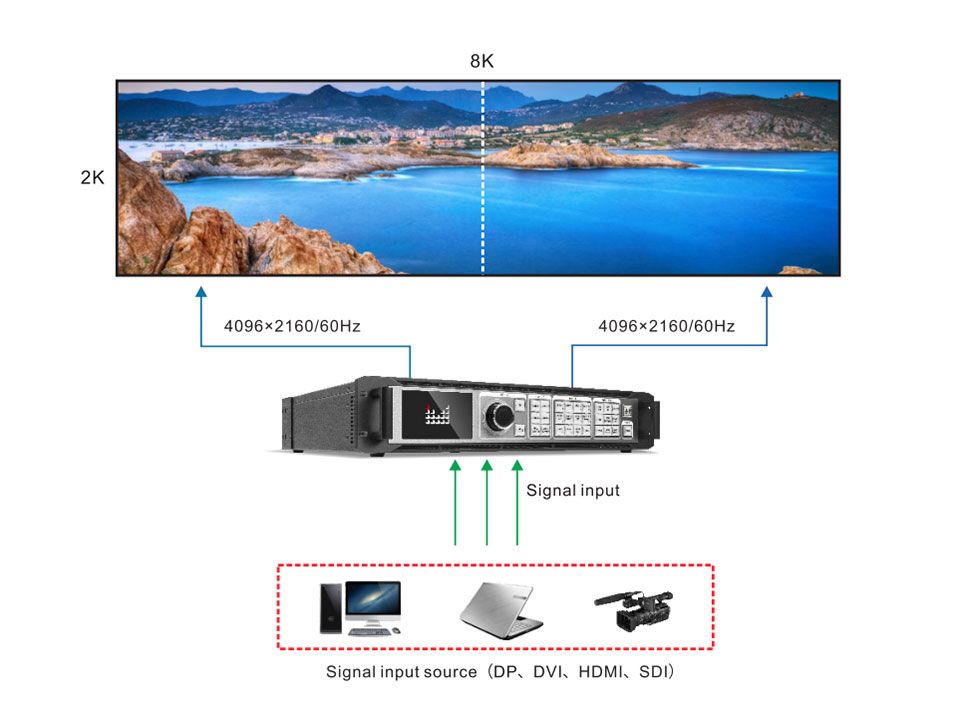

The LED-W4000 series is a top-of-the-line 8K*2K video processor that offers multiple features like mosaic, switch, and multi-window display. Boasting a range of professional input ports, its single input supports up to 4K*2K/60HZ or 8K*1K/60HZ resolution. Its high-quality images, pixel-to-pixel display of giant resolution, and flexible operation make it a go-to choice for exhibitions, business conferences, stage performances, theaters, and TV stations. With a load capability that’s several times that of a normal video processor, it also offers EDID management and customized output resolution to meet your specific needs. Choose the LED-W4000 series for unparalleled performance.

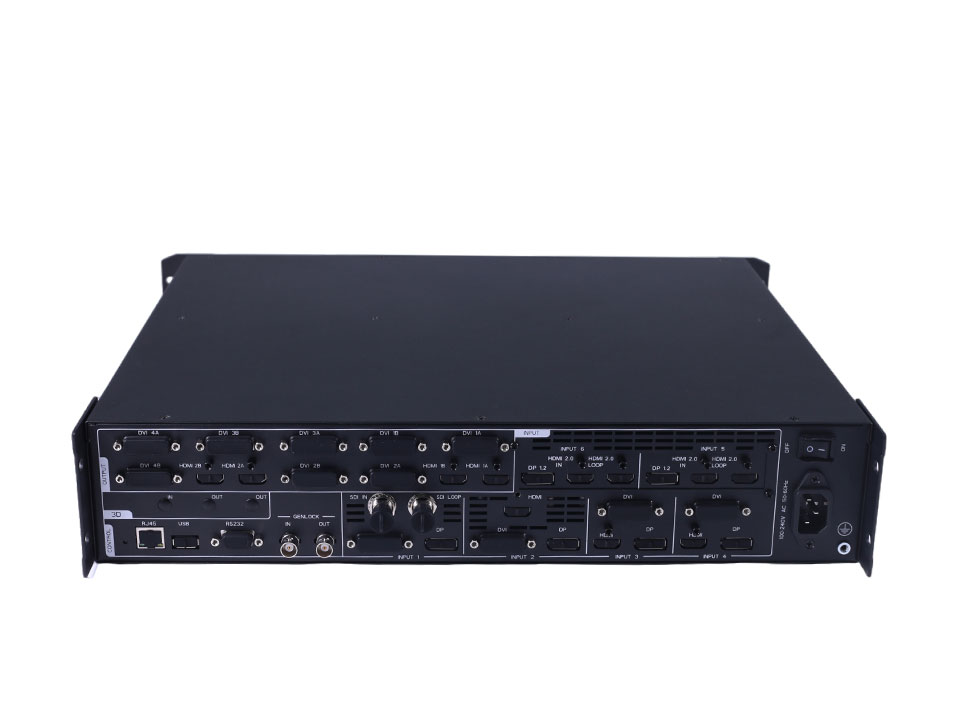

Input Indication
DVI*4：3840*1080/60HZ and EDID management
DP*4：3840*1080/60Hz,3840·2160/30Hz EDID management
HDMI*3：3840 1080/60HZ EDID management
SDI*1：480i/60Hz,576i/50Hz,720p60Hz,1080/50Hz/60Hz,10800/50Hz/60Hz(3GsD1)

Extend Input Indication(A single 4K module)
DP1.2*1：4096 2160/60HZ, 7680*1080/60HZ EDID management
HDMI2. 0*1：3840*2160/60HZ EDID management

Output indication
DVI*8: 1024*768/60HZ or 1920*1200/60HZ （Single output）
HDMI*4: 1920*1080/60HZ or 2560*1440/90HZ （Single output）
