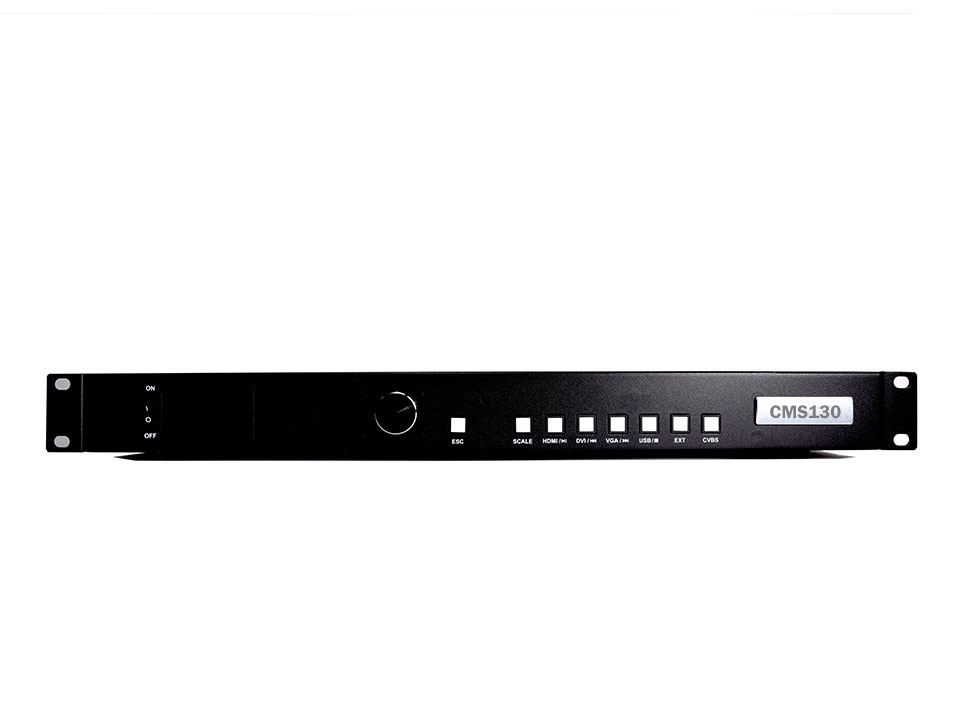

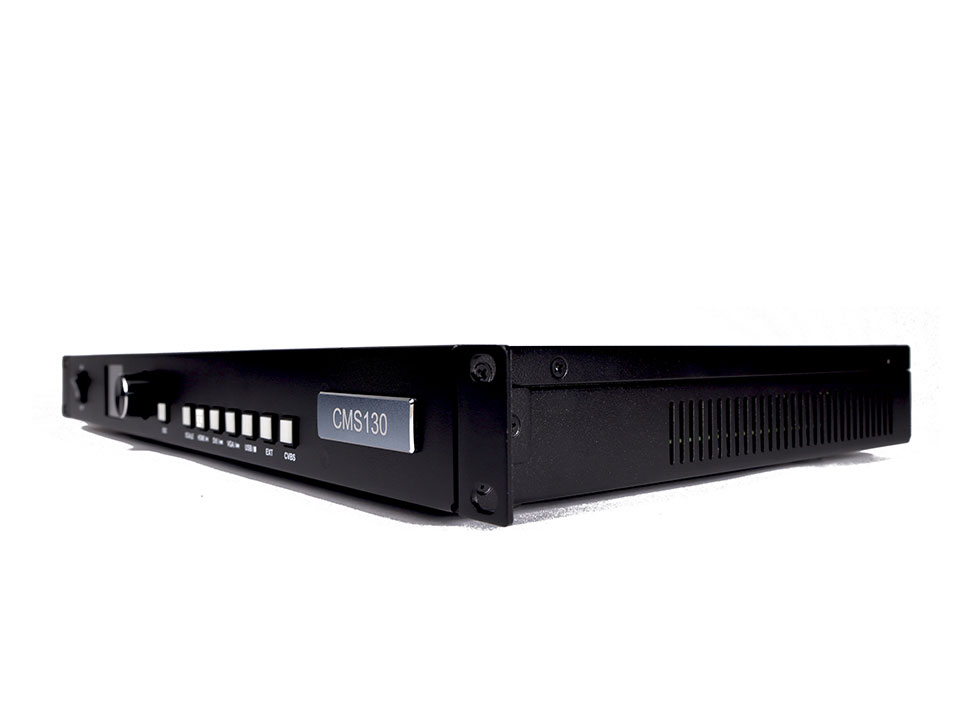

Novastar CMS130 all-in-one controller

Description

Description
.Up to five input connectors: 1x DVI, 1x HDMI 1.3, 1x VGA, 1x USB, 1x CVBS
.Adjustable layer position and size, and input cropping supported
.Press input source buttons to easily switch between the input sources.
.External independent audio
.EDID management supported
.Personalized image scaling: Full screen, pixel to pixel and custom
.Quick configuration to easily configure the LED screen
.2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels
.Easy preset saving and loading Up to 6 user-defined presets
.LED screen color adjustment, such as brightness and Gamma
.Controlled via central control device

Input Connectors
DVI-D: VESA standard video inputs with the maximum resolution of 1920×1080@60Hz, downward compatible / HDCP 1.4 compliant /  Interlaced signal inputs supported
HDMI: HDMI 1.3 standard / Input resolution up to 1920×1080@60Hz, downward compatible / HDCP 1.4 compliant / Interlaced signal inputs supported
VGA: Input resolution up to 1920×1080@60Hz, downward compatible
CVBS: PAL/NTSC standard video inputs
Audio: 2* Audio input and output

Output Connectors
2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels
Connect to the receiving cards

Size: 440*250*50mm
Weight: 2.8KG
Power connector: 100-240V AC, 50/60Hz 12W
