Novastar H_4xHDBaseT input card

Description

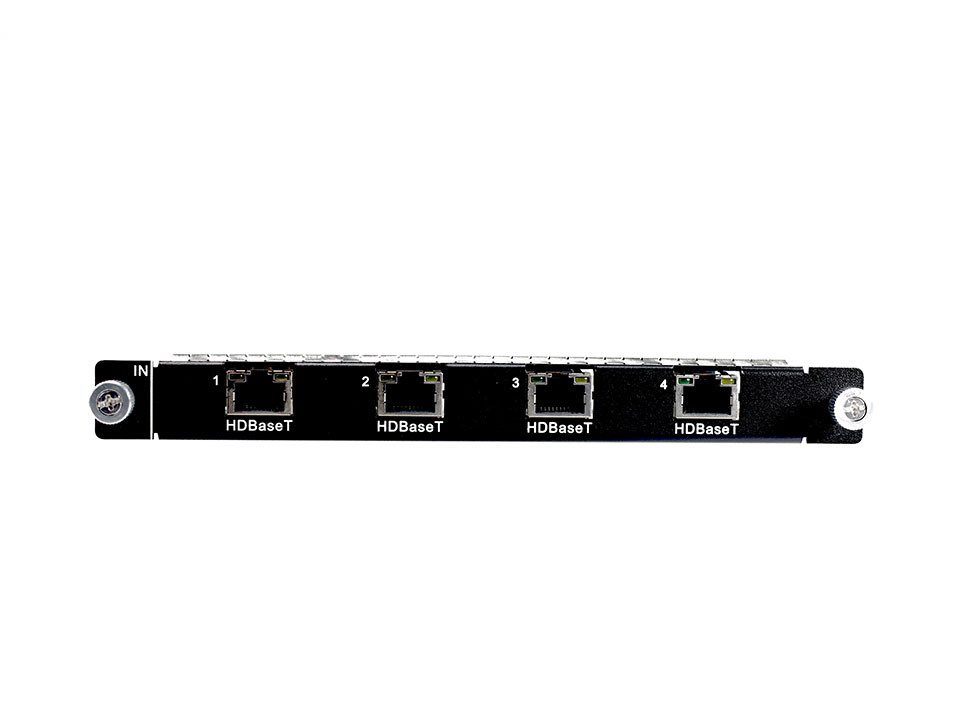

4x RJ45 Gigabit Ethernet ports
Support for single link and dual link input modes, and accompanied audio
.Single link input:
Four connectors are all available for input.
Each connector supports the maximum resolution of 1920×1080@60Hz.
Custom resolution:
Max. width: 2560 pixels (2560×983@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
HDCP 1.4 compliant
.Dual link input:
Connector 2 and 4 are available for input.
Each connector supports the maximum resolution of 3840×2160@30Hz.
Custom resolution:
Max. width: 3840 pixels (3840×1202@60Hz)
Max. height: 3840 pixels (1092×3840@60Hz)
HDCP 1.4 compliant
Status LEDs:
.Green: Indicating the input source access status
On: The input source is accessed normally.
Off: No input source is accessed.
.Yellow: Indicating the input source status
On: The input source is normal.
Off: The input source has no signal or the input source is abnormal.
Flashing: The connector is in communication.
Specifications:
.Weight: 500 g
.Dimensions: 193 mm × 247.12 mm × 21.15 mm
.Power consumption: 39 W
