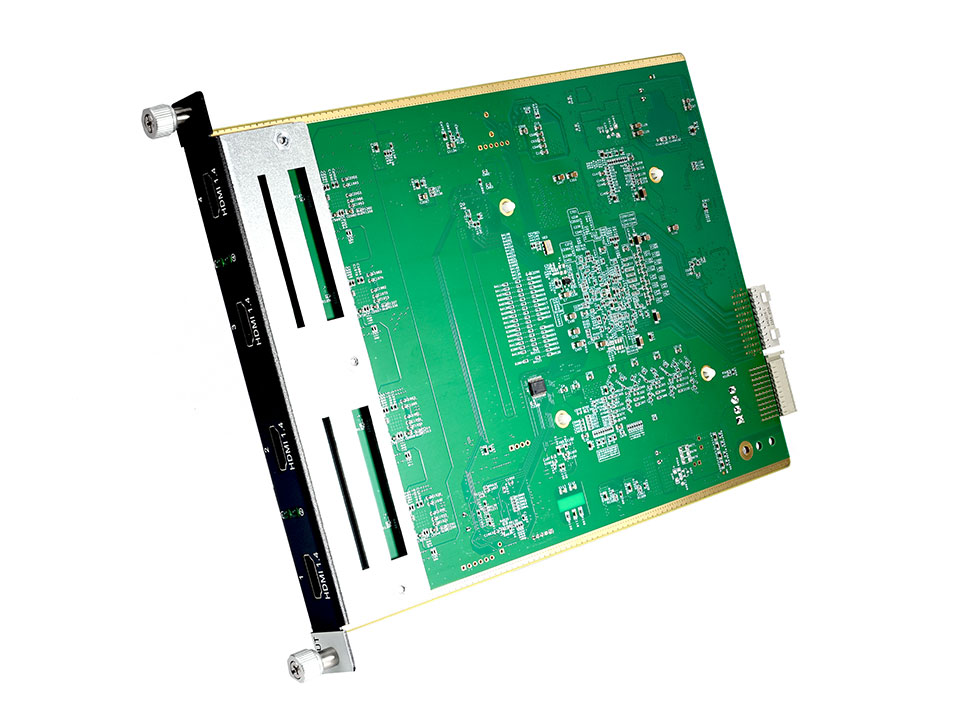

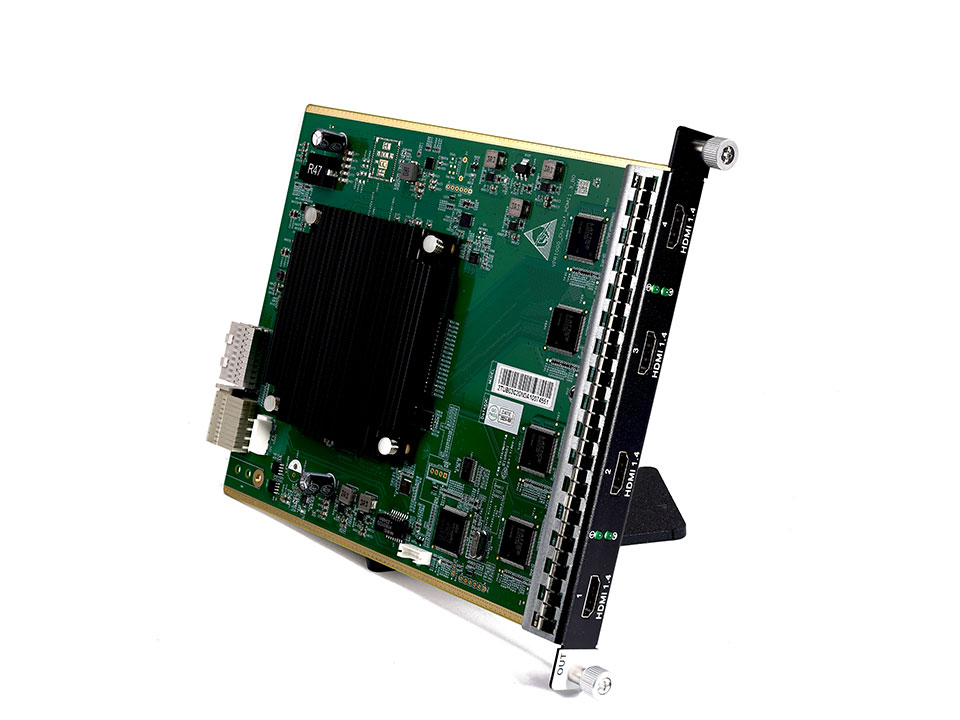

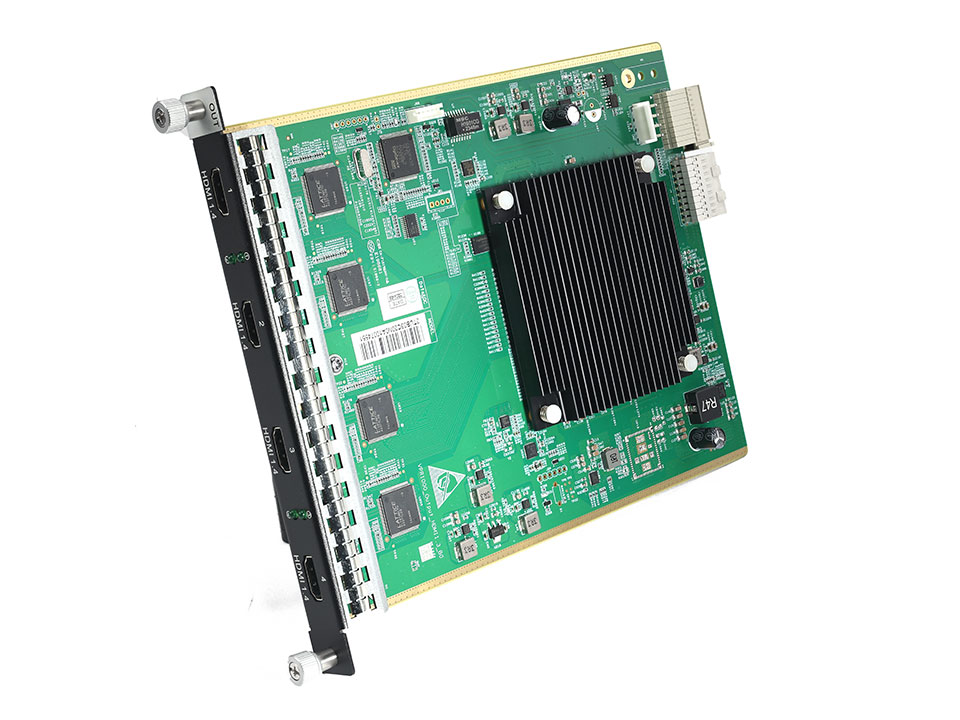

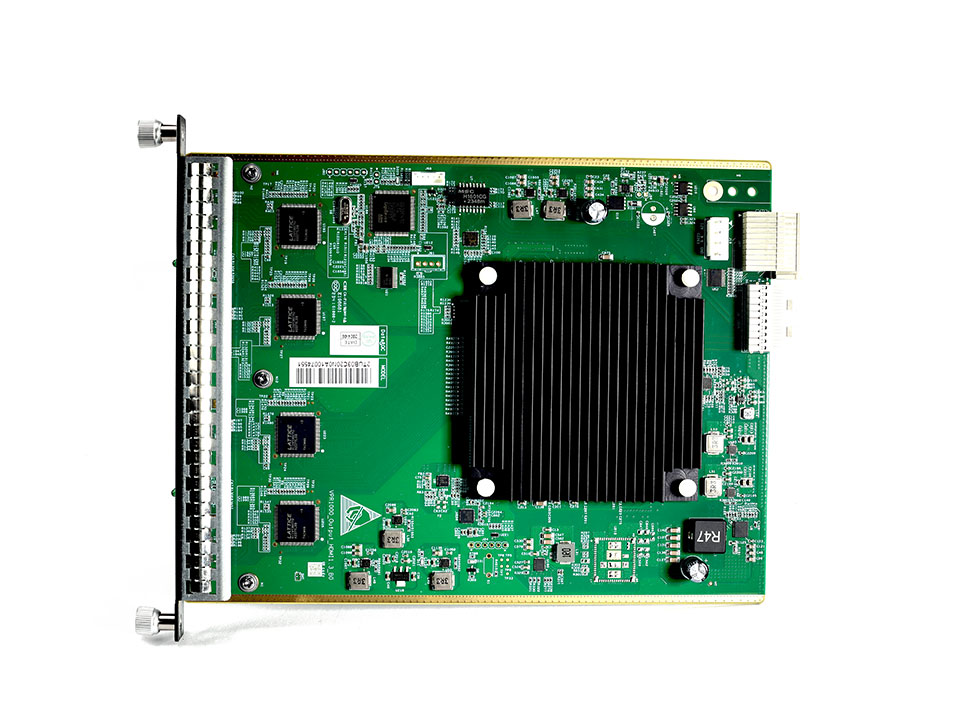

Novastar H_4xHDMI output card

Description

4x HDMI 1.4
Support for single output, dual link output and 144Hz output
.Single link output:
-Four connectors are all available for output.
-Each connector supports the maximum resolution of 2048×1152@60Hz.
-Custom resolutions:
Max. width: 2560 pixels (2560×972@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
-Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
-Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
.Dual link output:
-Connectors 2 and 4 are available for output.
Connector 1 copies the output on connector 2, and connector 3 copies
the output on connector 4.
-Each connector supports the maximum resolution of
4096×2160@30Hz/3840×1080@60Hz.
-Custom resolutions:
Max. width: 4096 pixels (4096×1124@60Hz)
Max. height: 4096 pixels (1014×4096@60Hz)
-Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
-Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.

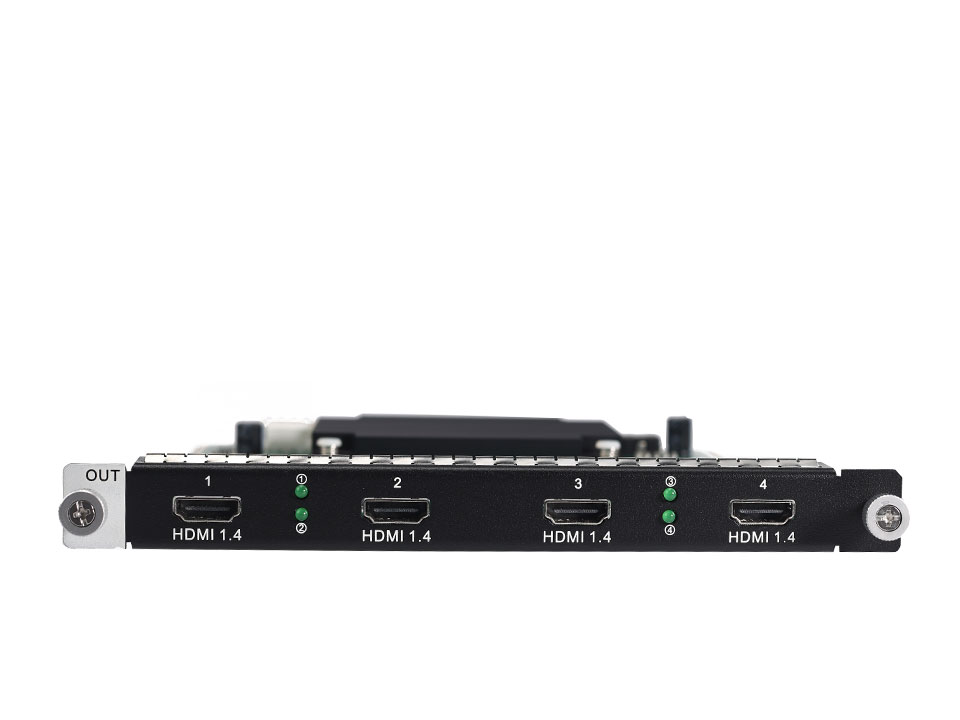

Status LEDs:
.On: The output connector is connected normally.
.Off: The output connector is not connected.
Specifications:
.Weight: 500 g
.Dimensions: 193 mm × 247.12 mm × 21.15 mm
.Power consumption: 22.1 W
