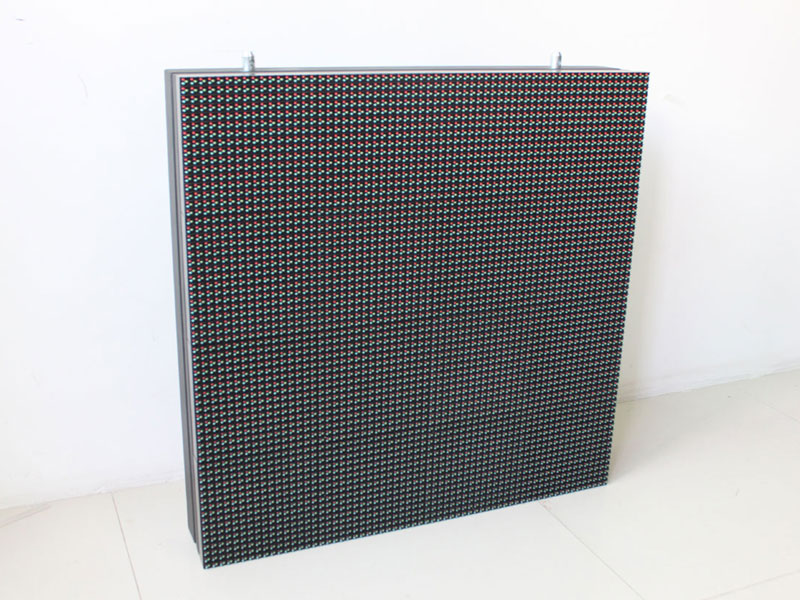

P10 LED Fullcolor Cabinet
DIP LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Pixel pitch: 10mm
Pixel composition: 1R 1G 1B
Module Size (W *L)mm: 160 x 160
Module Size (W * L) Pixel: 16x 16
Cabinet Size (W*L* H)mm: 640 X 640*130
$756.00
86 in stock
Description
P10 LED Fullcolor Cabinet
< Free of DHL shipping >
|
Module
|
P10 DIP 16*16 (16 PCS)
|
|
Pixel pitch
|
10mm
|
|
Pixel composition
|
1R 1G 1B
|
|
Module Size (W *L)mm
|
160 x 160
|
|
Module Size (W * L) Pixel
|
16x 16
|
|
Cabinet Size (W*L* H)mm
|
640 X 640*130
|
|
Cabinet Resolution (W *L)pixels
|
64 X 64
|
|
Display Screen
|
|
|
Color
|
16,384 grey grades, totally 4,398 x 109M colors
|
|
Max brightness(CD/m²)
|
≥6,000
|
|
Power consumption(Max)
|
300W
|
|
Power consumption(average)
|
150W
|
|
Power supply
|
88-132VAC/ 176-264VAC selected by switch
|
|
Viewing distance (Meter)
|
10 – 200
|
|
Brightness adjustment
|
256 grades adjust
|
|
Viewing angle
|
horizontal≥110°vertical:up≥15°down≥30°
|
|
Refresh Frame Frequency
|
>120 frames/second
|
|
Refresh Ration
|
>240HZ
|
|
Continuous work time
|
>24 hrs
|
|
Life time
|
>100,000Hrs
|
|
Operating temperature
|
-20°C ~ +60°C
|
|
Operating humidity
|
10% ~ 90%RH
|
|
Waterproof standard
|
IP65
|
|
Linsn Control system
|
|
|
Control method
|
Synchronous control with PC, instance display,
|
|
communication method internet
|
|
|
Video input
|
DVI, Composite video, RGE, VGA,S-Video
|
|
Brightness control
|
Program control or manual control available
|
|
Gamma correction
|
Yes
|
|
Power
|
Meanwell
|
|
LRS-350-5 (1 PCS)
|
|
|
Control card
|
Linsn RV908M32 (1 PCS)
|
|

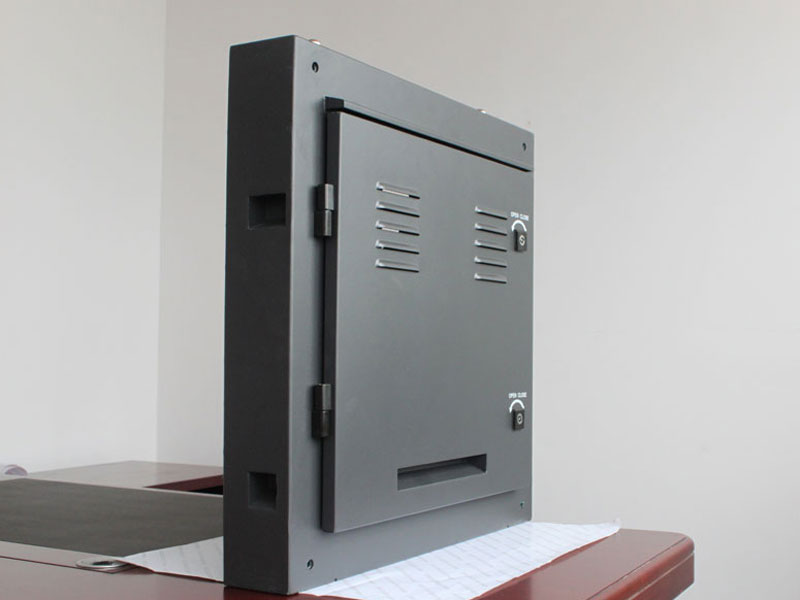

Cabinet material
|
aluminum Cabinet 640*640 (1 PCS)
|
No include sending card, suggest use the Linsn TS802 sending card.
minimum order quantity : 3PCS
Additional information
| Weight | 25 kg |
|---|
1 review for P10 LED Fullcolor Cabinet
You must be logged in to post a review.
Alan –
old product
We like DIP screen for outdoor projects, the brightness is higher and performs better especially in waterproof aspect than SMD modules, and so is in a harsh environment, although it is an old product, we still like it.
