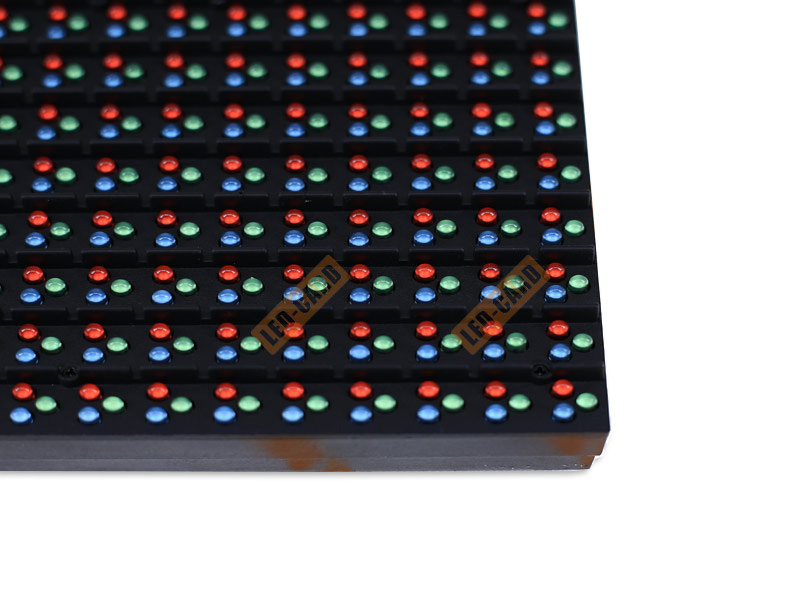

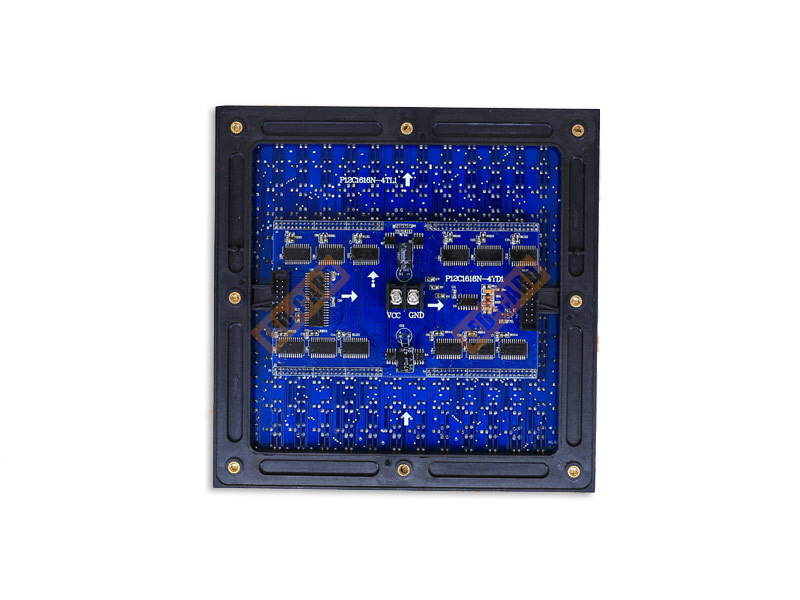

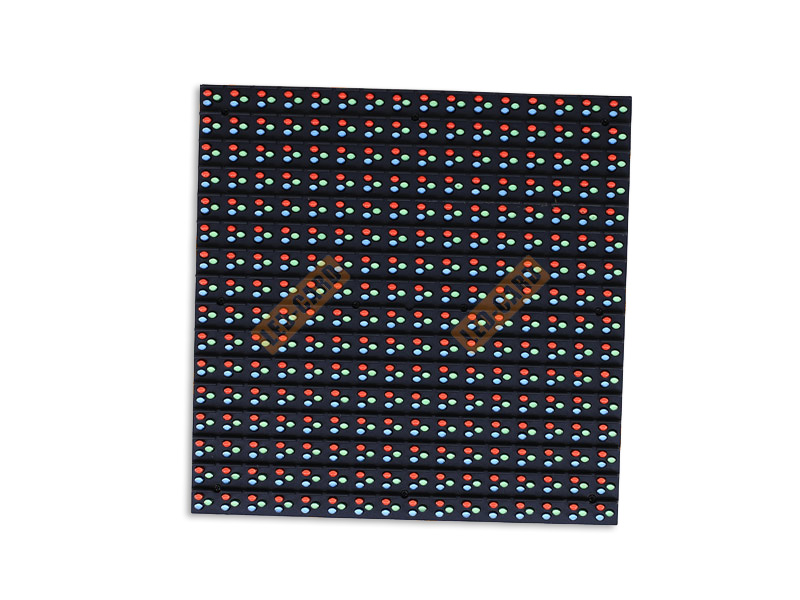

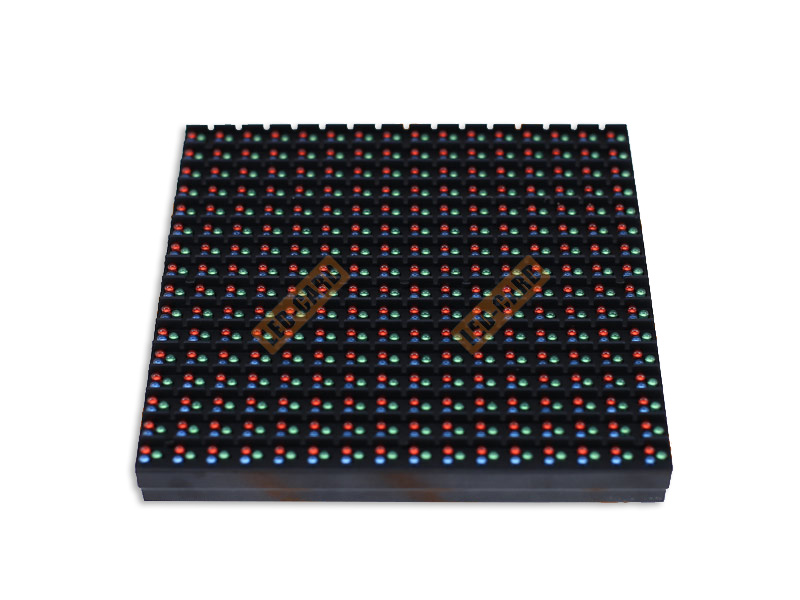

P12 Outdoor LED RGB Unit
DIP LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Item: P12 Fix installation
Module: P12 Outdoor
Pixel pitch: 12mm
Resolution (pixels/m²): 6880
Pixel composition: 1R 1G 1B
Module Size (W x H)mm: 192 x 192
$31.20
Out of stock
Description
P12 Outdoor LED RGB Unit
|
Item
|
Fix installation
|
|
Module
|
P12 Outdoor DIP
|
|
Pixel pitch
|
12mm
|
|
Resolution (pixels/m²)
|
6880
|
|
Pixel composition
|
1R 1G 1B
|
|
Module Size (W x H)mm
|
192 x 192
|
|
Module Resolution (W X H)pixels
|
16 x 16
|
|
Display Screen
|
|
|
Color
|
16,384 grey grades, totally 4,398 x 109M colors
|
|
Max brightness(CD/m²)
|
≥6,000
|
|
Power consumption/M² (Max)
|
700W
|
|
Power consumption/M² (AVE)
|
400W
|
|
Max power per module
|
26W
|
|
Power supply
|
DC 5V
|
|
Viewing distance (Meter)
|
4 – 100
|
|
Brightness adjustment
|
64 grades adjust
|
|
Viewing angle
|
horizontal≥110°vertical:up≥15°down≥30°
|
|
Refresh Frame Frequency
|
>120 frames/second
|
|
Refresh Ration
|
>240HZ
|
|
Continuous work time
|
>24 hrs
|
|
Life time
|
>100,000Hrs
|
|
Operating temperature
|
-20°C ~ +60°C
|
|
Operating humidity
|
10% ~ 90%RH
|
|
Waterproof standard
|
IP65
|
|
Control system
|
|
|
Control method
|
Synchronour control with PC, instance display,
|
|
communication mehtod internet
|
|
|
Video input
|
DVI, Composite video, RGE, VGA,S-Video
|
|
Brightness control
|
Program control or manual control available
|
|
Gamma correction
|
Yes
|
You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
Additional information
| Weight | 0.8 kg |
|---|
