P3 LED disc circular Module
SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

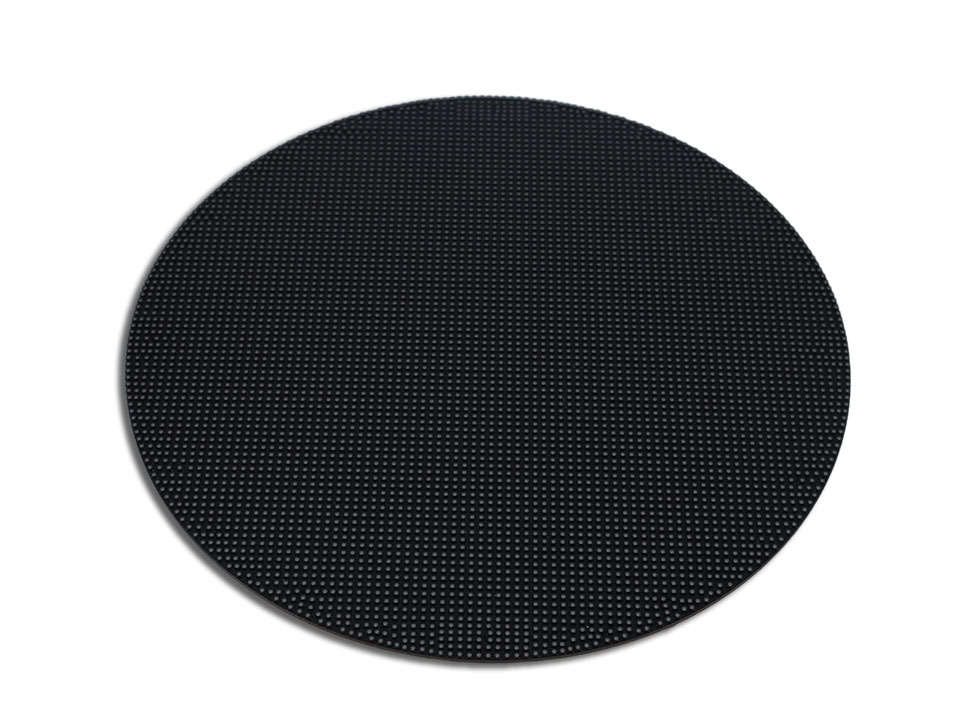

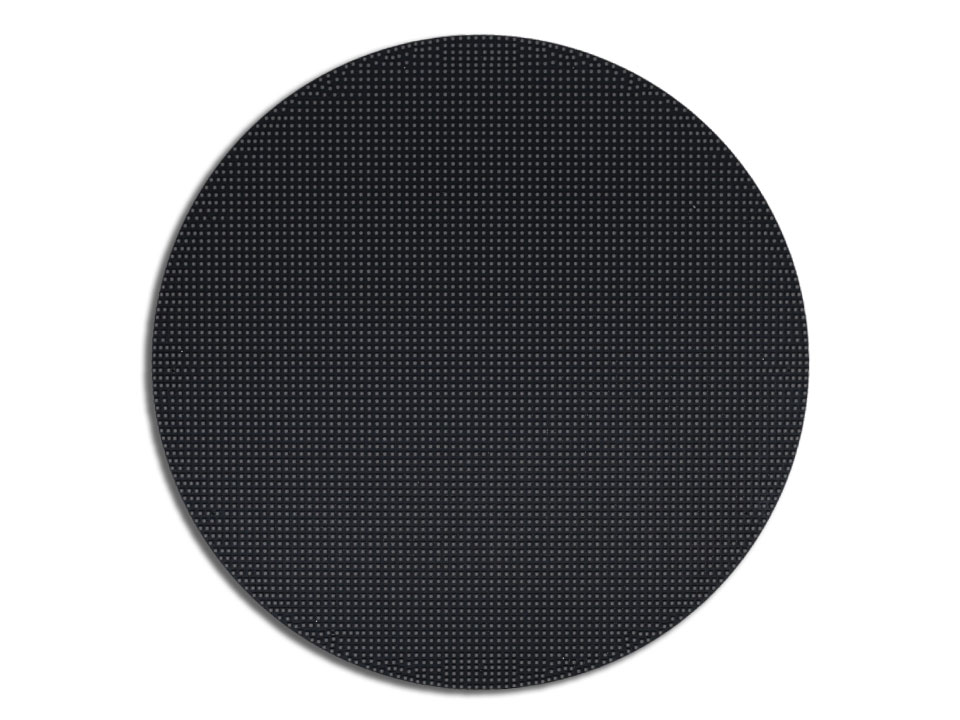

P3 LED disc display
Pixel pitch: 3mm
Module Size: 260 mm diameter
Model Pixel: 87*44 Pixels
lattice density: 111111 dots/square meter
Pixel form: 1R1G1B SMD(2121)
$88.00
Description
|
Module: P3 LED disc display
|
|
|
Pixel pitch
|
3mm
|
|
Module Size
|
260 mm diameter
|
|
Model Pixel
|
87*44 Pixels
|
|
lattice density
|
111111 dots/square meter
|
|
Pixel form
|
1R1G1B SMD(2121)
|
|
Best viewing distance
|
1.5m~100m
|
|
Max power consumption
|
50W
|
| Driver IC | 2037 |
| Module area | 0.053 SQM |
|
warranty
|
1 year |
|
Drive mode( Optional)
|
Constant current 1/22 scan
|
|
Control Card
|
MC75E Not included
|
|
Pixel type
|
Real pixel
|
|
refresh frequency
|
3840HZ
|
|
Horizontal View Angel
|
> 110 degree
|
|
Working Environment
|
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
|
|
Working voltage
|
DC5V
|
|
Lifetime
|
>=100000 hours
|
|
Gray scale
|
12 bit/ 1 color
|
|
Color display
|
manual adjust
|
|
Brightness
|
>800 cd/square meter
|
|
Blind spot rate
|
<0.00001
|
|
Waterproof Class
|
IP43 |
|
Software
|
Support window series system
|
You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 26 × 26 × 2 cm |
