Description

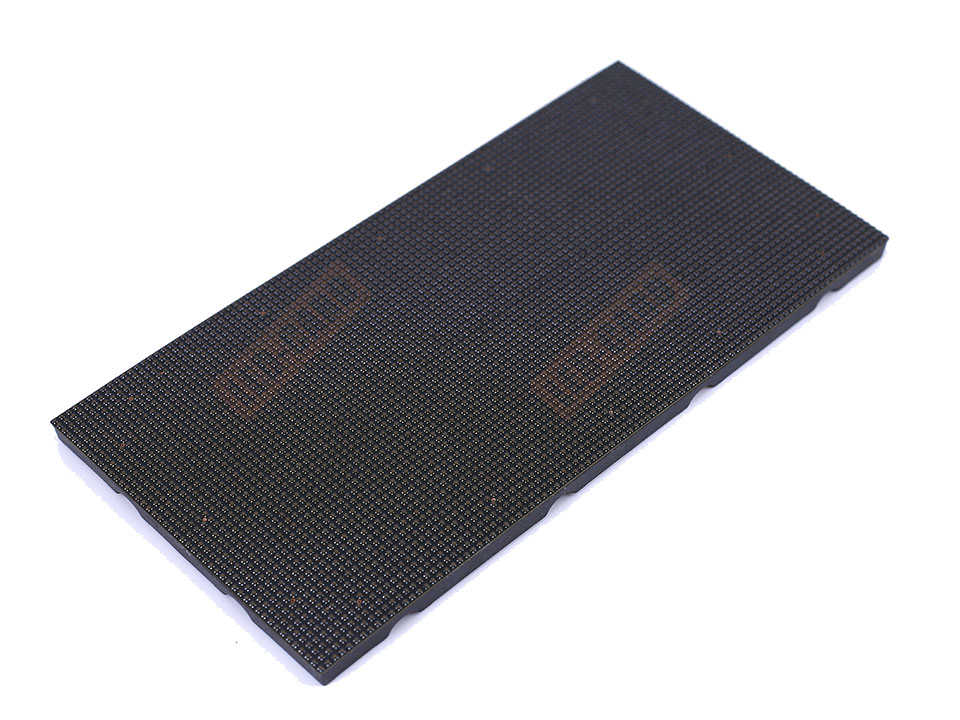

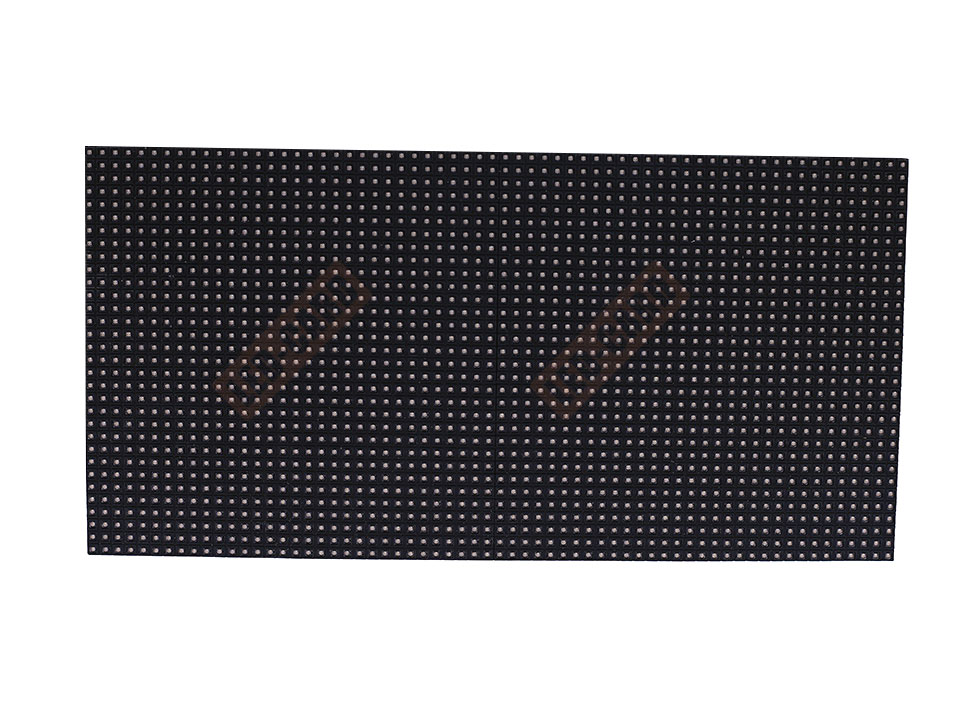

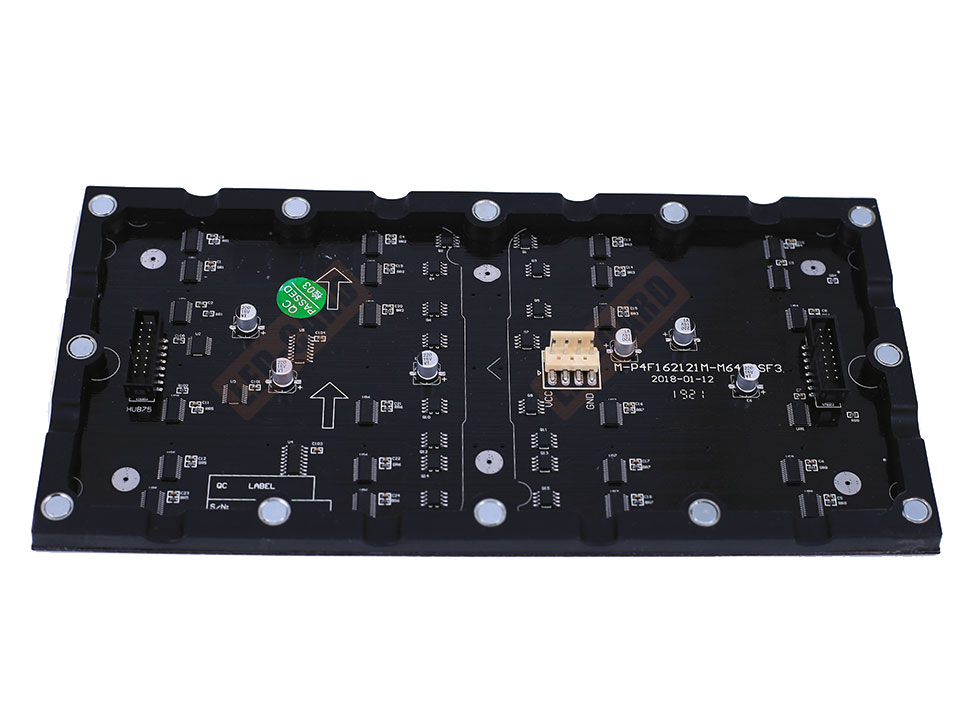

P4 indoor soft flexible LED module

Pixel pitch:4mm
Pixel density: 62500 dots/

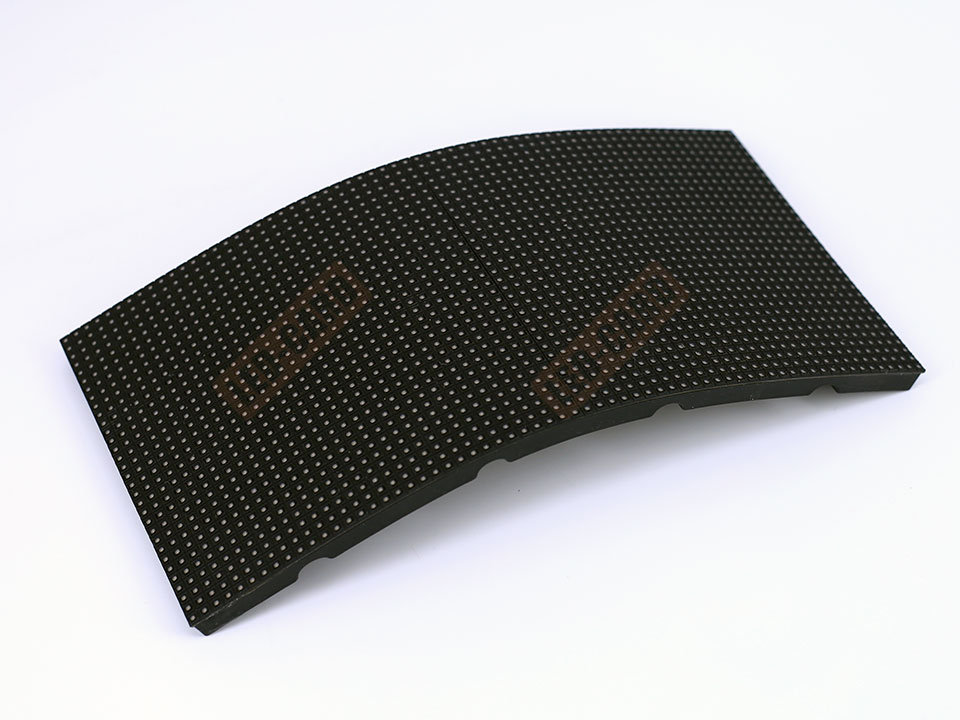

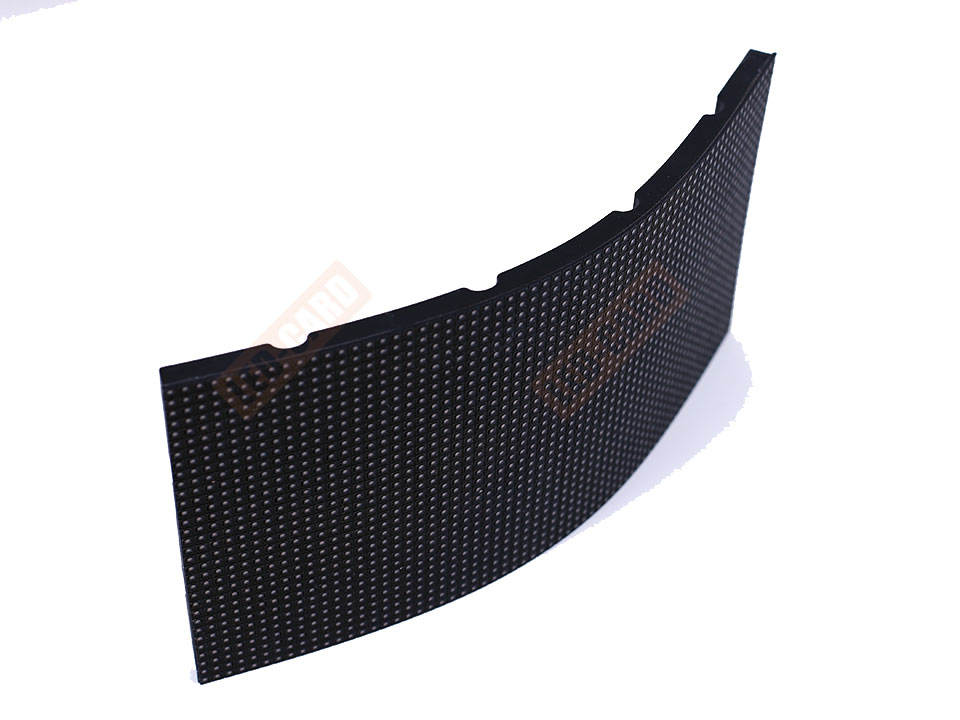

Central bending arc: < 120°
Refresh frequency:≥480HZ
Module size:256mm*128mm*100mm (64*32 dots)
Model pixel:32*16
View angle:120°
Working environment:Tem: -20°C~50°C
Humidity: 10%-95%
Working voltage:DC5V±10%
Lifetime:≥50,000 hours
Best viewing distance:3-100m
Gray scale:14 bit/color
Max power per Module:25W
Brightness:≥1000 cd/sqm
Blind spot rate:<0.00001
Drive mode(optional):Constant current, 1/16 scan
Waterproof class:None
Max power consumption:700W/sqm
Warranty:1 years

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
