Description
Model
State |

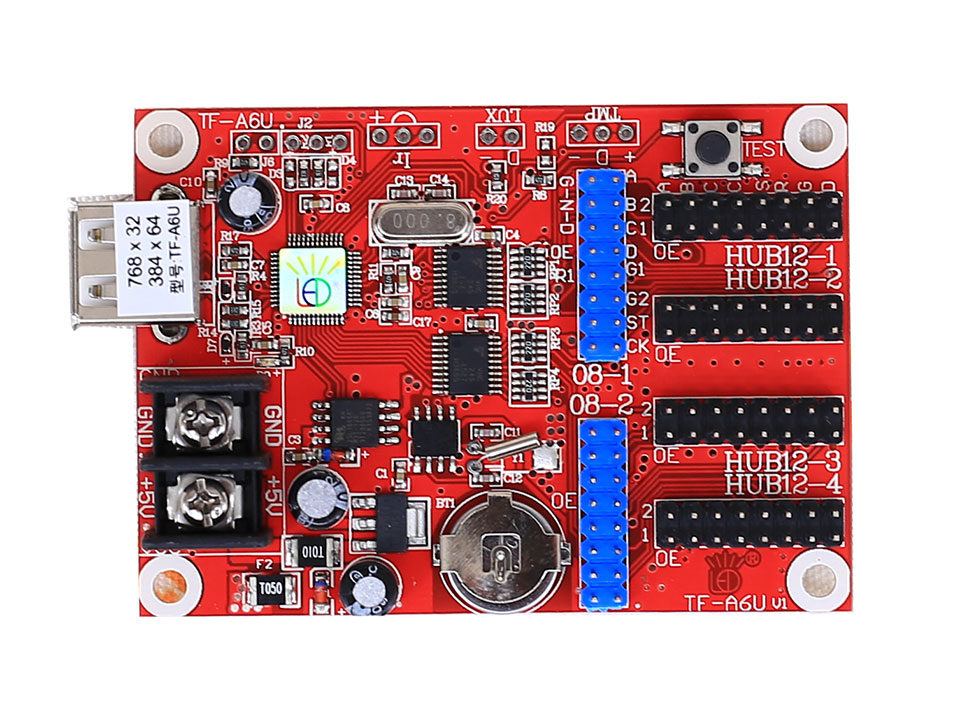

TF-AU TF-A6U LED screen card |
Function introduction | More arbitrary division, dazzle colour border area, U disk update program, U disk, the LED display screen and a asynchronous control card |
Usage | Indoor/outdoor |
U disk | Support U disk update program, U plate adjustable brightness, U disk and a screen. The files are stored, do not affect U disk the original documents. Use card reader compatible with SD card, miniSD card |
Pixel | Single colour:640×32;416×64; Double colour:320×32;208×64; Fullcolor( 7 Colors ): 160*16 |
Ports | Two 08 port; four 12 ports |
Scanning mode | support 1/16 -1/4,Scan the monochrome, double color module. |
Storage | 2M |
Program number | Maximum 200.support windows,Article 200 the most of every window support information。 |
Display | rain fountain scroll and much more |
Border | support many Color border,Picture border |
Flash format | support GIF,SWF |
Image format | support BMP,JPG,GIF,WMF,ICO |
Brightness | Level 16 highlighted support manual |
screen switch | manual |
Test button | On-board test button Can switch over the |
Electrical parameters | +5V DC(4.5V) Power consumption<0.5W |
Working temperature | -30C |
Size | 55mm×90mm Hole spacing 47mm×47mm |
