Description

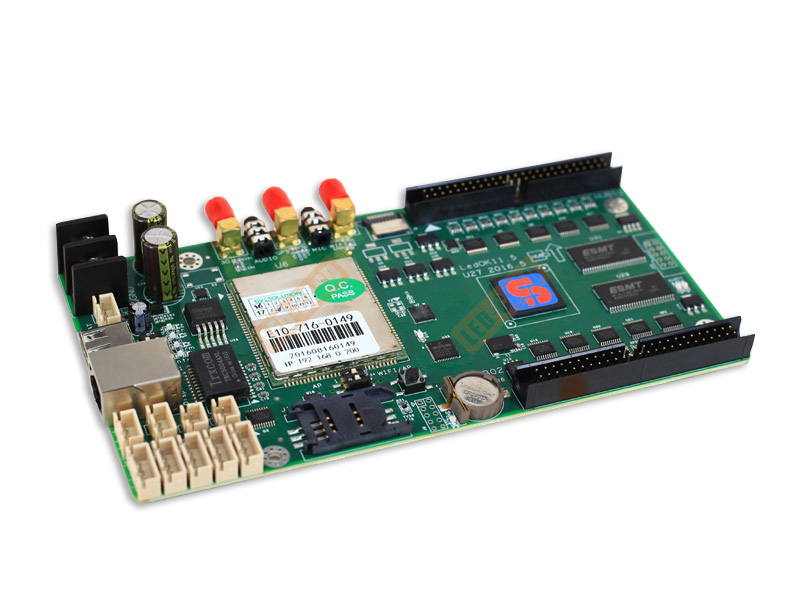

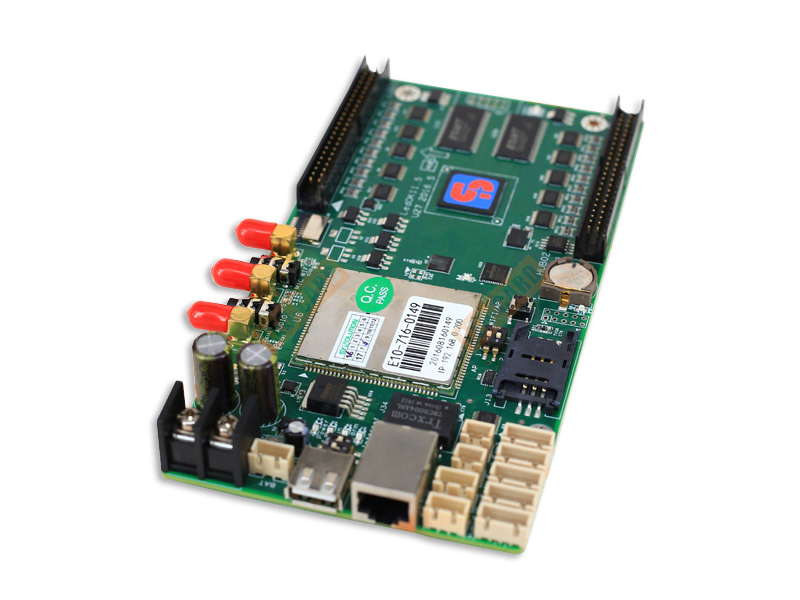

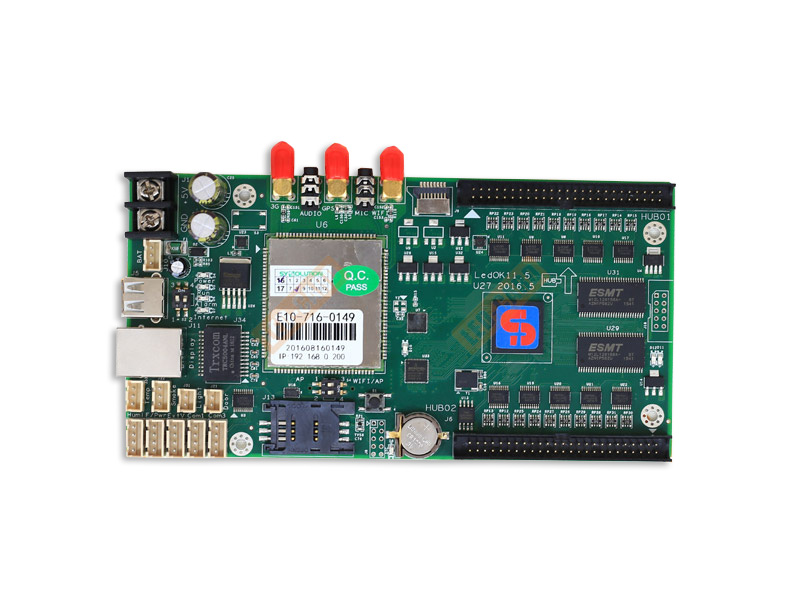

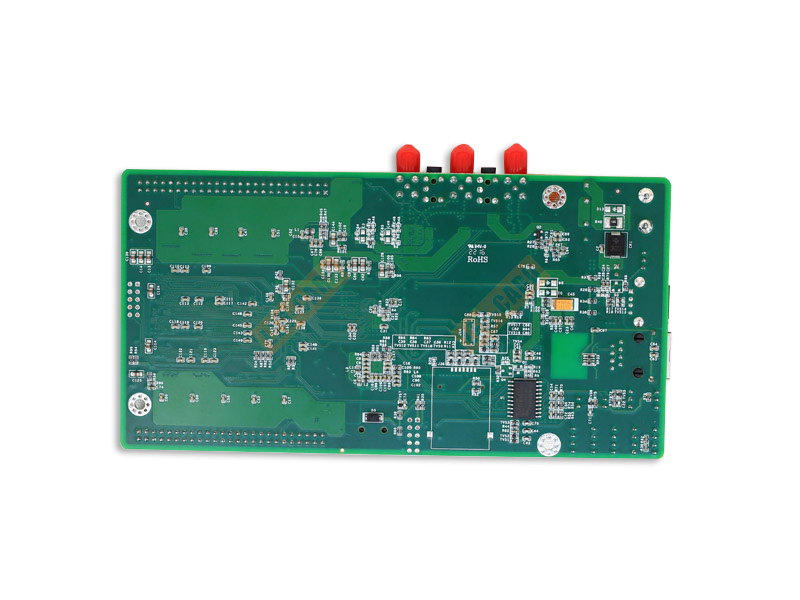

XIXUN E10 Android LED Card

1. Android OS 4.4,
2. Using AIPS cloud platform to realize publish programs, check status, power switch and get display log remotely,
3. Support synchronizing led programs for multiple led screens,
4. Support various media types including video, image, text, weather, clock, countdown, realtime message and html code,
5. Support timely notes and program task in schedule,
6. Support led module driver IC bands including MBI, SUM, ICN and MY,
7. Support cascading, sending and receiving cards keep the exactly same effects,
8. Support full color static and 32scan types, support half, one_third and quarter ways to install led screens freely,
9. Match with powerful customized development kit with openable protocols,
10. Support working normally within 6 seconds with super capacitor to protect electric circuit.

Parameters configuration
1. 3G frequency:
support four frequencies GSM/GPRS/EDGE, working frequencies: GSM 850, EGSM900, DCS1800 and PCS1900.
3G dual frequencies UTMS/HSPA+, working frequencies: WCDMA BAND 1/8 (900MHz/2100Mhz), multimode EDGE/GSM/rel.8 HSPA+modem.
2. GPRS/EDGE HSPA+ data features
HSPA data downlink transmission maximum 21Mbps
HSPA data uplink transmission maximum 5.76M bps, EDGE data transmission maximum 236.8kbps, GPRS data transmission maximum 85.6kbps,
3. Wi-Fi/WAPI
Support SoftAP function, support 802.11b/g/n
Encryption: WFA, WPA/WPA2 Qos: WFA WMM, WMM PS radio frequency performance: 11b power rate 15dBm, EVM≤35%; 11g power rate 13dBm, EVM≤25dB; 11n power rate 13dBm, EVM≤28dB;
4. GPS/AGPS
GPS working frequency: 1575.42MHZ GPS carrier-to-noise ratio (CNO for short): 41db/Hz;
GPS dB: acquisition dB-148 dBm(cold), -156dBm (hot), tracking sensitivity:-162dBm, GPS start up time: hot start<5s, warm start<15s, cold start<50s.

5. MP4 video format
MPEG-4/ H.263, H.264, support storage TF card: Mircro-SD maximum 32GB, support hot swap, MP3 audio format AMR/MIDI/WAV/MP3/AAC/AAC+;

More Detail: XIXUN E10 Android LED Card Parameter (PDF)
